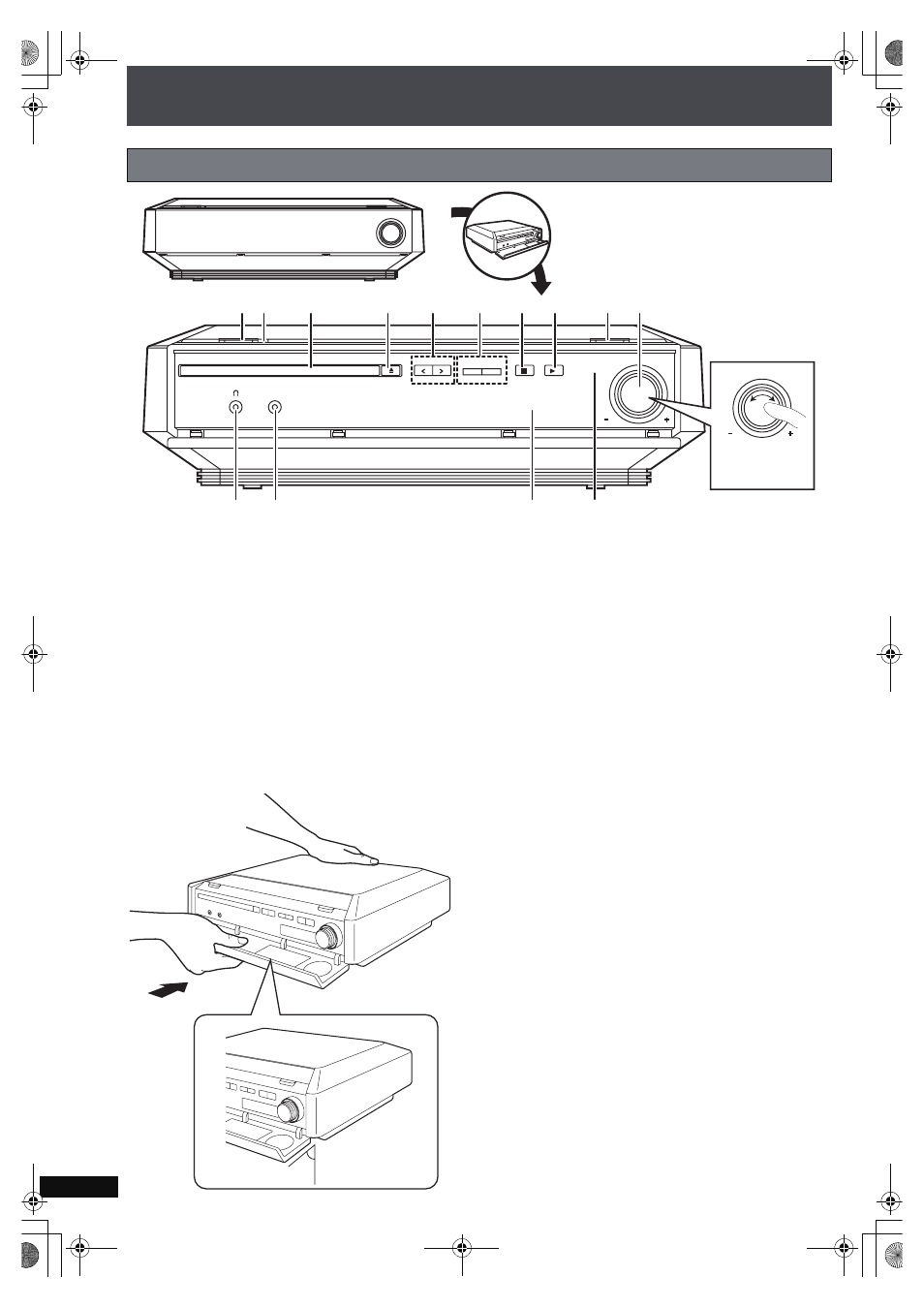

Control reference guide
1 POWER button (POWER Í/I) ( ➜ page 14)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
2 Standby/on indicator
When the unit is connected to the AC power supply, this indicator
lights up in standby mode and goes out when the unit is turned
on.
3 Disc tray
4 Open/close disc tray (
➜ page 29)
5 Select the source
Music Collection ) DVD/CD ) FM ) AM ) XM
f v
OPTION ( MUSIC PORT ( AUX ( =TV Audio
6 Skip, Select preset radio stations/channels
7 Stop playback (
➜ page 45, 50, 52)
8 Start playback ( ➜ page 45, 50, 52)
9 Start recording to HDD ( ➜ page 34)
: Adjust the volume
; Connector for headphones (
➜ page 86)
< Connector for external device ( ➜ page 86)
= Display ( ➜ page 29)
> Remote control signal sensor
Rear panel terminals ( ➜ page 12–13, 17–20)
∫ If the front cover comes off
1 Hold rear side of main unit by one hand and match up
left or right side protruding hook on the cover first with
the corresponding slot on the unit.
2 Push the hook firmly towards the unit until it clicks into
place. Then push the succeeding hooks one by one
until all have clicked into place.
3 Check that the cover now moves correctly.
≥If it does not, remove it and repeat the above procedure.
Main unit
VOLUME
MUSIC PORT
OPEN/CLOSE SELECTOR
TUNING
Adjust the volume
of the main unit.
VOLUME
When opening and closing the front
cover, be careful not to touch the power
button, especially during recording.
90°
