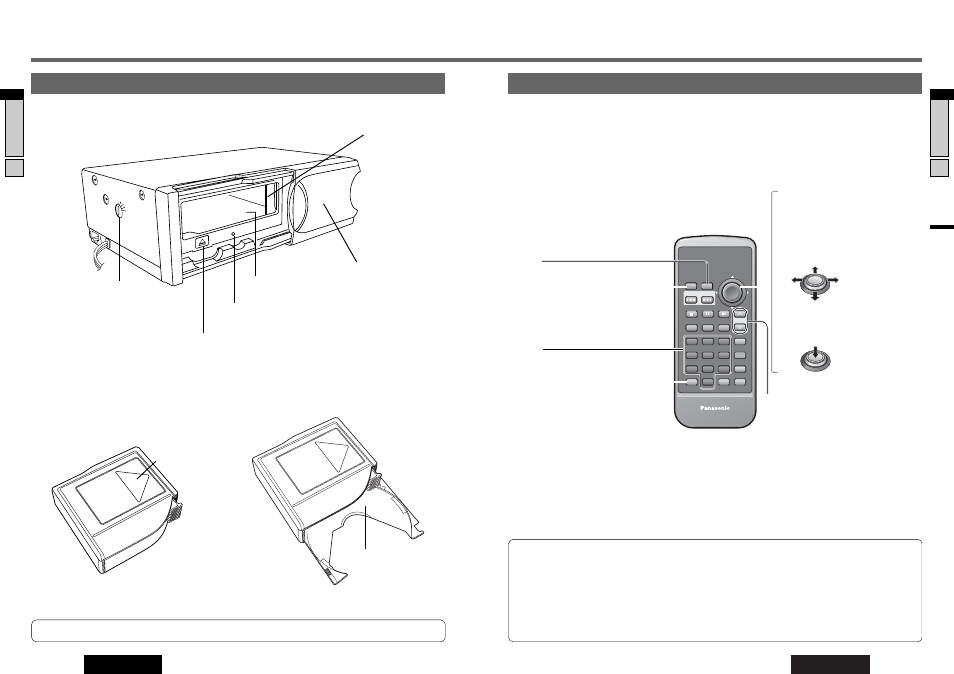

Names of Controls and Functions
Names of Controls and Functions
DVD Changer, Disc Magazine and Tray Remote Control Unit
❑ General
Aim the remote control at the remote control sensor and operate it (see below note).
H A
C
B
V
❑ DVD Changer Unit
❑ Disc Magazine Tray
Door
Keep this door closed
except when loading or
unloading a magazine. Dust
can cause malfunction.
Disc Magazine Slot
Reset Switch
(
a page 53)
Eject Button (u)
(
a page 33)
Angle Adjust Screw
Screw to adjust mounting angle.
One each on the right and left sides.
(
a page 61 for details.)
Note: Do not use 8 cm Discs.
Shutter for the deck
mechanism protec-
tion
Push the magazine
straightforward into the
slot to make this shutter
drawn properly.
Tray
Push these trays into the
magazine until click is
felt after putting a disc
on the tray.
Notes on Remote Control and connections:
¡Aim the DVD changer’s remote control unit at the remote control sensor on the monitor display (In the case of connect-
ing its Remote-Out with DVD changer’s Remote-In) or the included remote control sensor and operate it.
¡If the control unit equips with the remote control sensor and forwards the remote control data to the DVD changer, you
can operate it with aiming at the control unit.
¡Never use both Remote-Ins (One is mini-pin, the other is RCA) at the same time. Failure to observe this may cause mis-
operation.
¡Misoperation may occur if the remote control sensor is near other infrared equipment (Example: Infrared Headphone
system). In this case, install the remote control sensor of your DVD Changer apart from other infrared equipment.
Note: Do not touch
this shutter.
Magazine Inserting
Direction Arrow
Be sure to use the magazine and the trays supplied with the
unit as an accessory (VYQ3174). Any other magazines can
not be used.
[0] to [9]
¡Sets the language code. (
a page 55)
[MENU]
¡Shows the menu screen. (
a page 37)
[SETUP]
¡Shows the SETUP menu. (
a page 42)
[OSD]
¡Displays information about each source
on the screen. ( a page 35)
¡Toggles NTSC/PAL. ( a page 44)
[}] [{]
¡Selects (vertically) or adjusts
an operation or item.
[]] [[]
¡Selects (horizontally) or adjusts
an operation or item.
[ENTER]
¡Determines an operation or item.
TRACK/SEARCH
DISC/FOLDER
NTSC/PAL TITLE/CHAPTER
TRACK
STOP
RANDOM
RETURN
PAUSE PLAY
REPEAT
SUBTITLE
CAR AV
TITLE
E N T E R
SETUP MENU
RAND SCAN REP
GRP RET
ANGLE
SUB
AUDIO
1 2 3
4 5 6
7
OSD
8
0
9
[DISC}] [DISC{] (DISC/FOLDER)
¡Selects a disc. (
a page 34)
[}]
[{]
[]] [[]
[ENTER]
