Philips Semiconductors User’s Manual - Preliminary -
P89LPC901/902/903
WATCHDOG TIMER
2003 Dec 8
87
Watchdog Timer in Timer Mode
Figure 12-4 shows the Watchdog Timer in Timer Mode. In this mode, any changes to WDCON are written to the shadow register
after one watchdog clock cycle. A watchdog underflow will set the WDTOF bit. If IEN0.6 is set, the watchdog underflow is enabled
to cause an interrupt. WDTOF is cleared by writing a '0' to this bit in software. When an underflow occurs, the contents of WDL
is reloaded into the down counter and the watchdog timer immediately begins to count down again.
A feed is necessary to cause WDL to be loaded into the down counter before an underflow occurs. Incorrect feeds are ignored
in this mode.

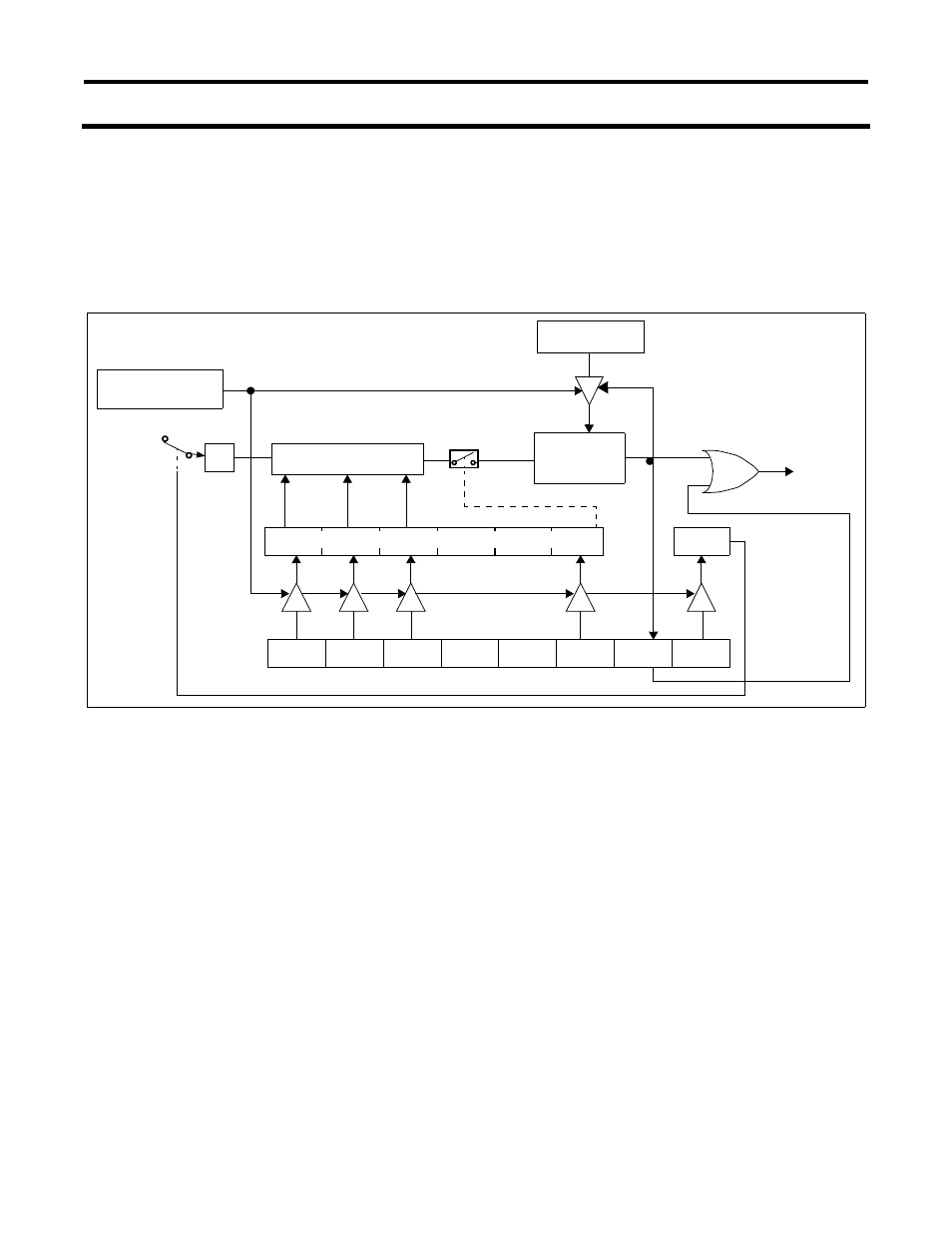

Figure 12-4: Watchdog Timer in Timer Mode (WDTE = 0)
Power down operation
The WDT oscillator will continue to run in power down, consuming approximately 50uA, as long as the WDT oscillator is selected
as the clock source for the WDT. Selecting PCLK as the WDT source will result in the WDT oscillator going into power down
with the rest of the device (see section "Watchdog Clock Source", below ). Power down mode will also prevent PCLK from running
and therefore the watchdog is effectively disabled.
Watchdog Clock Source
The watchdog timer system has an on-chip 400KHz oscillator. The watchdog timer can be clocked from either the watchdog
oscillator or from PCLK (refer to Figure 12-1) by configuring the WDCLK bit in the Watchdog Control Register WDCON. When
the watchdog feature is enabled, the timer must be fed regularly by software in order to prevent it from resetting the CPU.
After changing WDCLK (WDCON.0), switching of the clock source will not immediately take effect. As shown in Figure 12-3, the
selection is loaded after a watchdog feed sequence. In addition, due to clock synchronization logic, it can take two old clock cycles
before the old clock source is deselected, and then an additional two new clock cycles before the new clock source is selected.
Since the prescaler starts counting immediately after a feed, switching clocks can cause some inaccuracy in the prescaler count.
The inaccuracy could be as much as 2 old clock source counts plus 2 new clock cycles.
8-Bit Down
Counter
MOV WFEED1, #0A5H
MOV WFEED2, #05AH
WDL (C1H)
PRE2 PRE1 PRE0 WDRUN WDTOF WDCLK
SHADOW
REGISTER FOR
WDCON
WDCON(A7H)
PRESCALER
Interrupt
control register
Watchdog
Oscillator
CLK
ч32
