TROUBLESHOOTING & REPAIR
MULTI-SOURCE
SCR BRIDGE / HEAT SINK ASSEMBLY REPLACEMENT PROCEDURE
REMOVAL PROCEDURE
1.
Disconnect input power to the machine.
2. Using a 3/8” nut driver, remove the case
sides and roof.
3. Locate, label, and remove leads #301 and
#264 from the thermostat. See Figure F.26.
4. Lower the control panel using a 3/8” nut
driver.
5. Remove plug J4 from the firing board and
feed the disconnected plug down through
the hole in the bottom of the P.C. board
control box.
L E F T S I D E
L E F T S I D E
9/16" Bolts
#264
#301

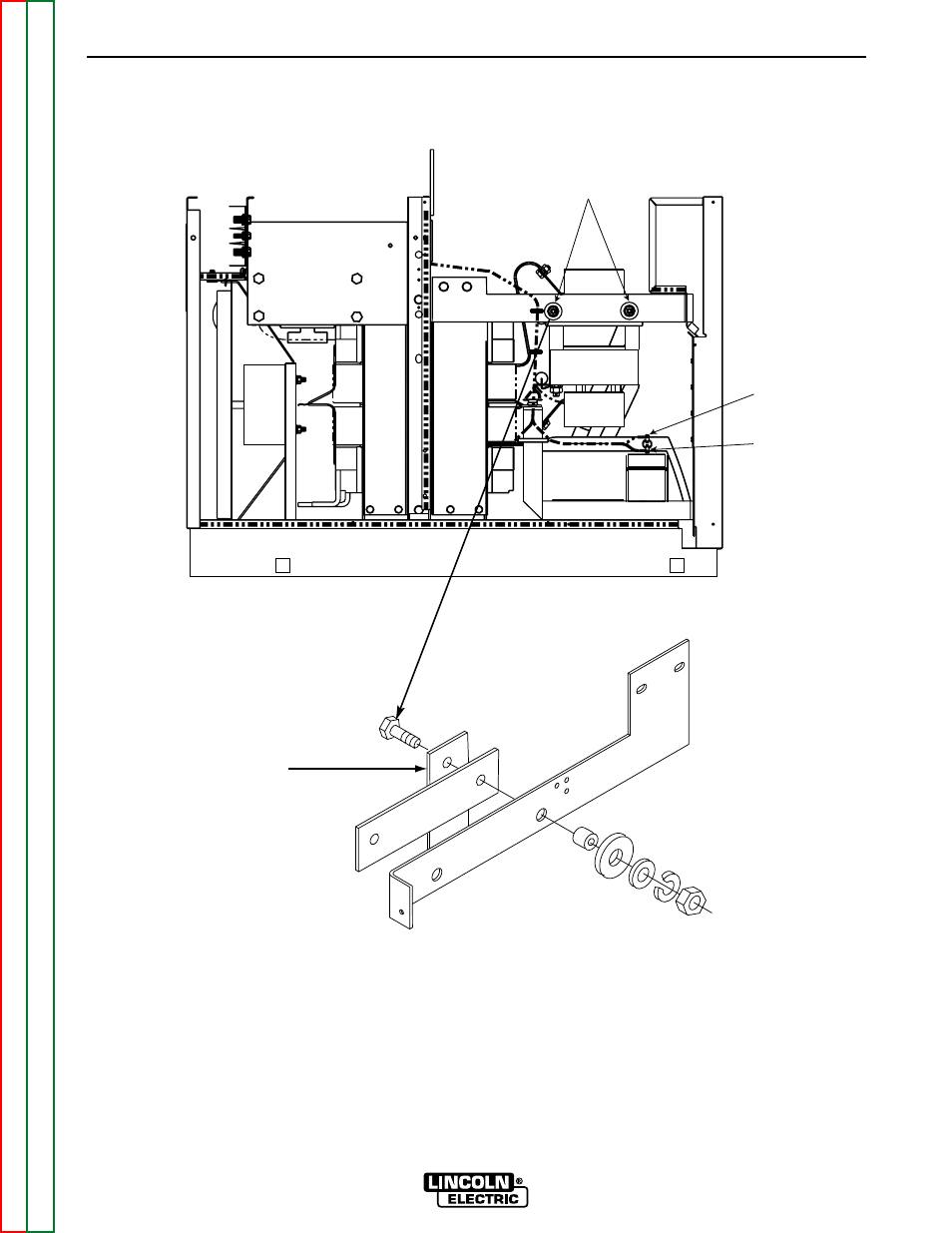

FIGURE F.26. Bolt and Lead Locations
Bridge
Assembly
Mount
