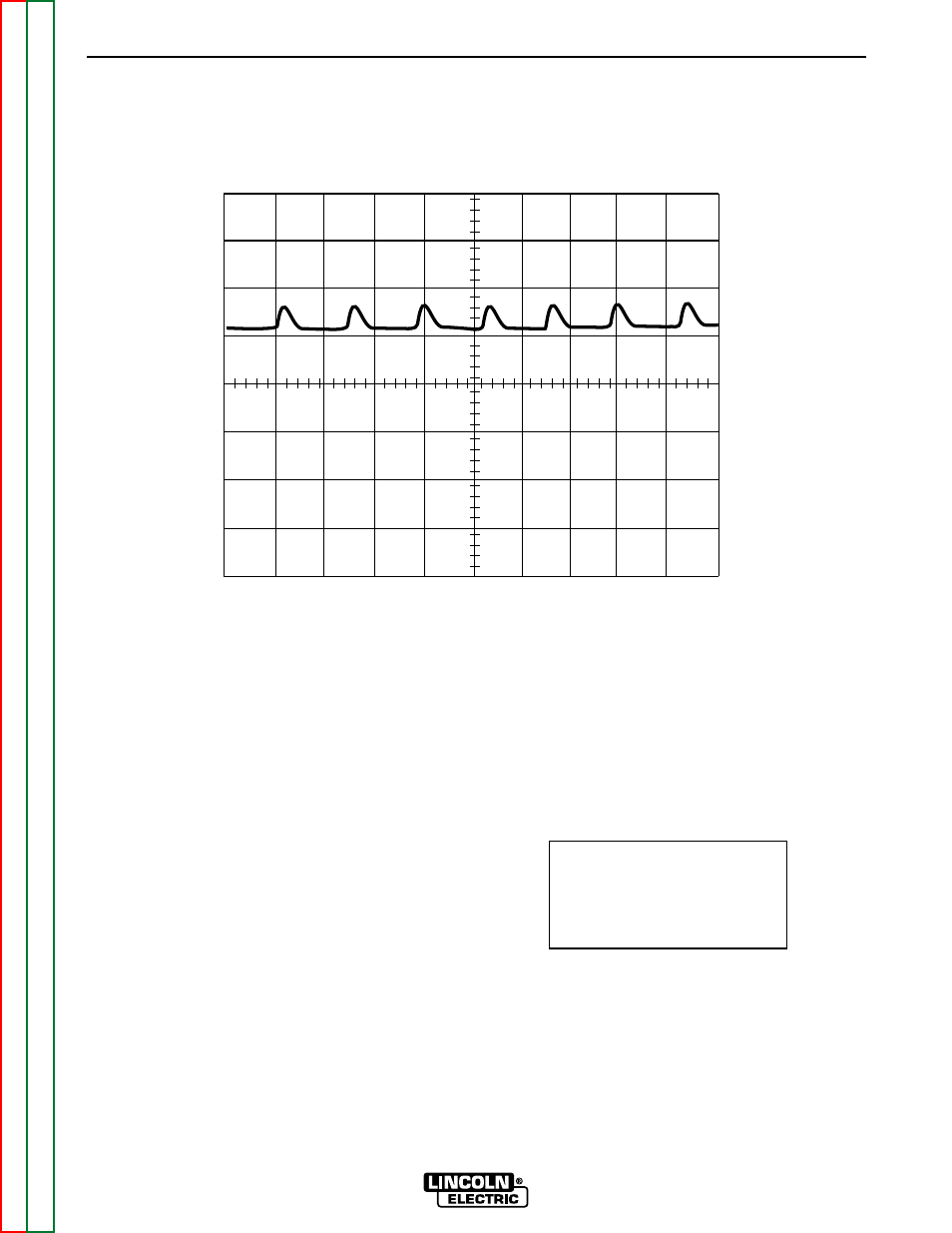

This is the typical DC open circuit volt-
age waveform generated from a properly
operating machine. Note that each ver-
tical division represents 50 volts and that
each horizontal division represents 2 mil-
liseconds in time.

Note: Scope probes connected at
machine output terminals: (+) probe to
positive terminal, (-) probe to negative
terminal.

Volts/Div.......................50 V/Div.
Horizontal Sweep...... 2 ms/Div.
Coupling..............................DC
Trigger..........................Internal

Scope Settings
