ACTIVE SCR TEST (Continued)
TROUBLESHOOTING & REPAIR
MULTI-SOURCE
Remove
Red Paint
Anode
Cathode
5. Remove the red insulating paint from heat
sink test points. See Figure F.12.
6. Perform test procedure as follows. Refer
Repeat test for all six
SCRs.
NOTE: Do not disassemble the heat sinks.

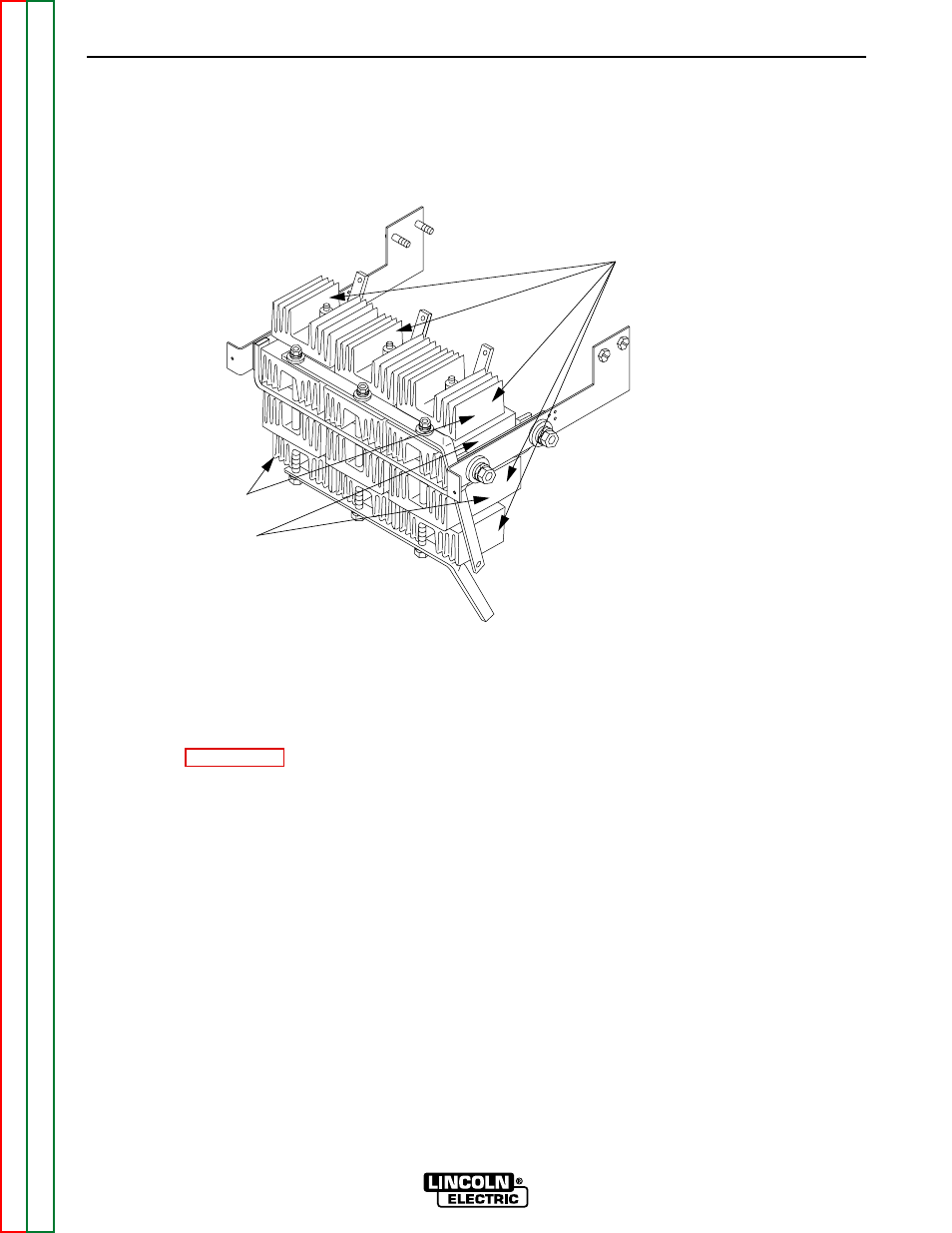

FIGURE F.12. SCR Heat Sink Test Points
