Troubleshooting & repair – Lincoln Electric MULTI-SOURCE SVM155-A User Manual
Page 54
F-26
F-26
ACTIVE SCR TEST (Continued)
TROUBLESHOOTING & REPAIR
MULTI-SOURCE
FIRING BOARD
J5
J6
J8
J4
J7
Plug J4
1. Remove main supply power to the Multi-
Source.
2. Remove the roof and case sides.
3. Lower the front control panel and remove
Plug J4 from the Firing Board. See Figure
F.10.

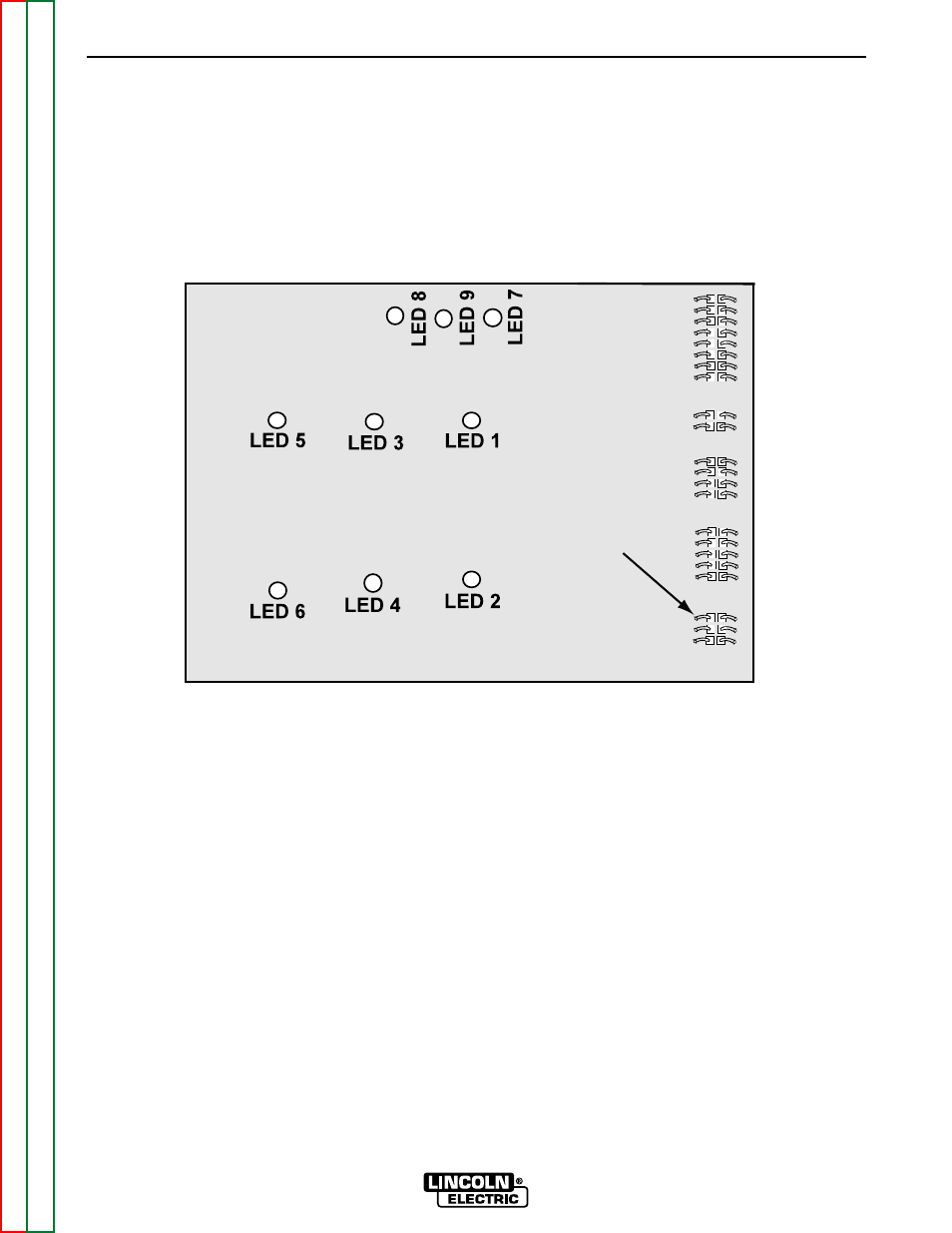

FIGURE F.10. FIRING BOARD LED & PLUG LOCATIONS
