MAIN TRANSFORMER (T1) VOLTAGE TEST (continued)

Transformer
Secondary
Leads

Lift Bail

Common Buss

Transformer
Assembly

#250

#251

Phase Angle
Winding
Test Points

7. Test for 120 VAC between leads #250 to

#251. See Figure F.6. See Wiring Diagram.

a.

If the 120 VAC is not present, check
for loose or faulty wiring. If necessary,
untape and track the continuity of
leads #250 and #251 through the
entire harness. See the Wiring
Diagram.

b.

If the wiring is good and the 120 VAC
is not present, then the main trans-
former may be faulty.

9. Test with an AC voltmeter for 32 VAC for

each phase angle winding as shown. See
Figure F.6. See Wiring Diagram.

NOTE: If the main supply voltage varies, the

Main Transformer voltages will vary
proportionately.

10. Be sure to replace any and all insulation

materials that were removed for testing
purposes.

11. Replace roof and sides of case cover.

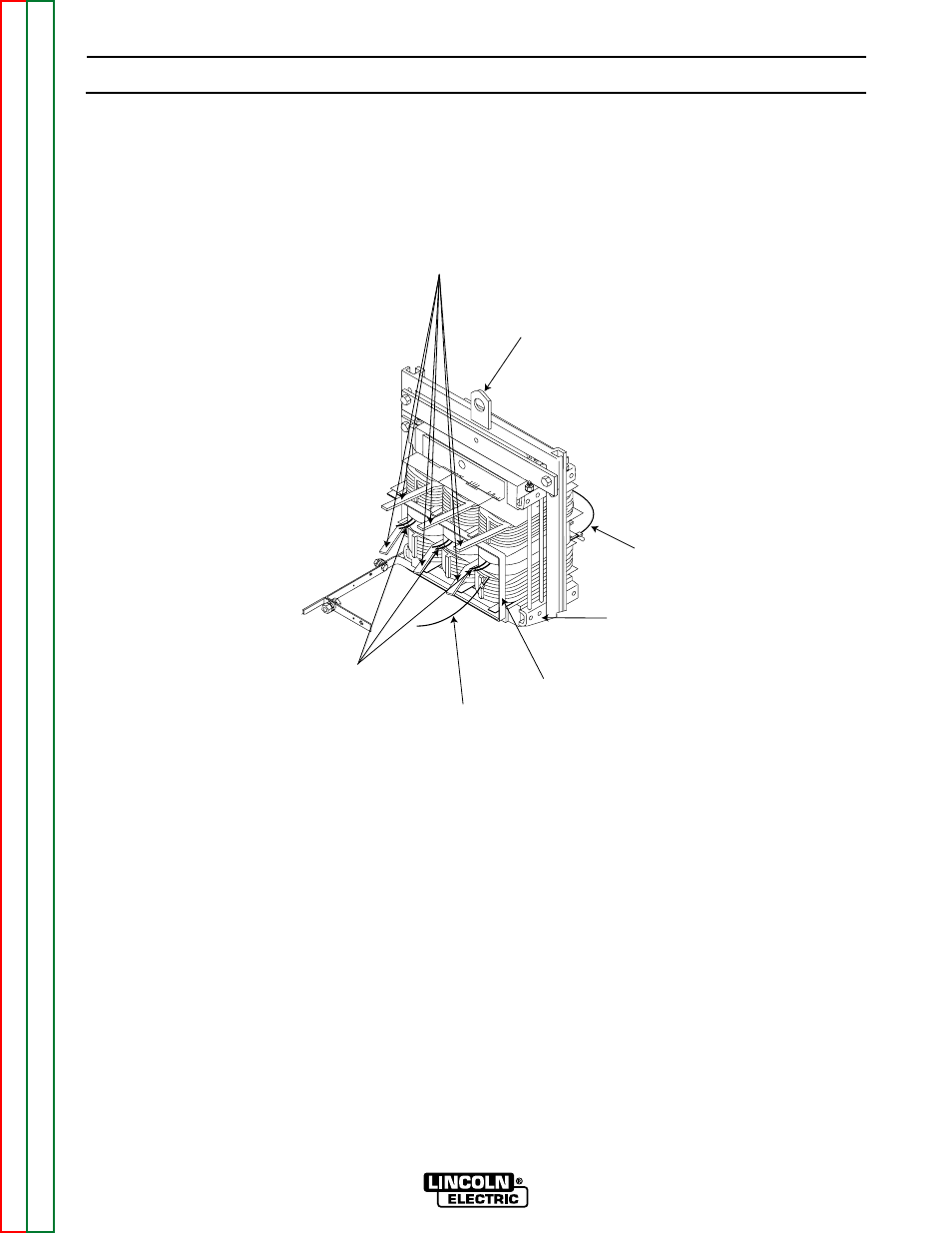

FIGURE F.6. Main Secondary Lead Test Points
