4-6 Service Manual
4098-001

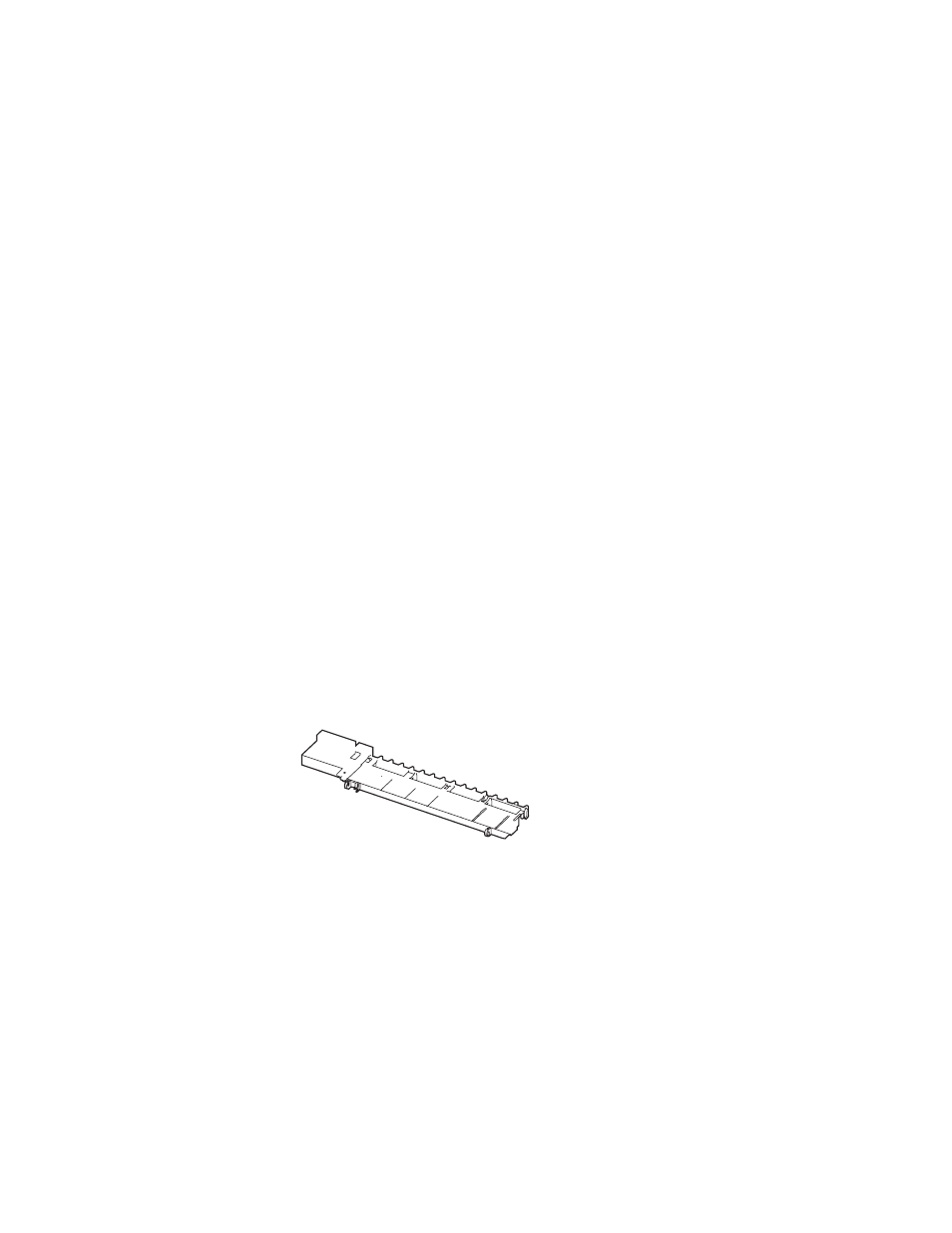

Mid Frame / Large Feed Roller / Exit Roller Removal
1. Remove all covers.
2. Remove the sheet feeder.
3. Remove the printhead carrier and the maintenance station.
Note: The carrier is attached to the belt at a raised tab. When
reinstalling, be sure the belt tab and carrier are aligned.
4. Remove the two star wheel roller mounting screws. Remove
star wheel roller assembly.
5. Remove the bushing from the right side of the large feed roller.
6. Depress tabs {A} on each end of mid frame and remove large
feed roller and mid frame.
7. Apply pressure and remove the exit roller and belt.
8. Remove mounting screws {B} and remove gear plate and paper
feed motor assembly.
Operator Panel Removal
1. Remove all covers.
2. Disconnect the operator panel cable. Note the routing of the
cable.
3. Remove the operator panel screw.
4. Depress two latches and remove operator panel.
