4-4 Service Manual
4098-001

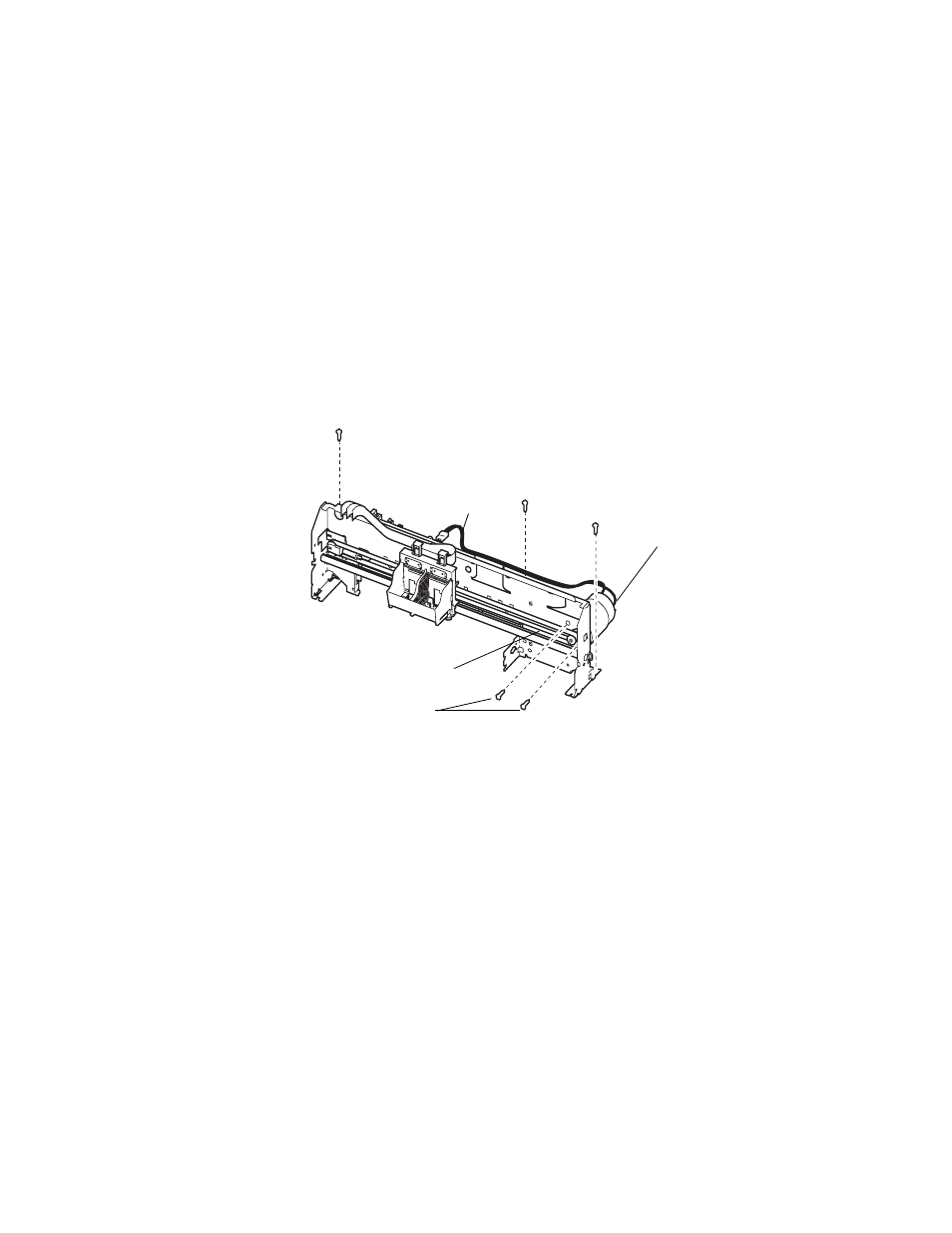

Carrier Transport Motor Removal
1. Remove all covers.
2. Remove the sheet feeder.
3. Disconnect (J5) the carrier transport motor connector {A}from
the system board.
4. Remove the belt {B}from the carrier transport motor pulley.
5. Remove the two screws {C}securing the carrier transport motor
to the carrier frame and remove the motor{D}. Note the routing
of the motor cable.
Encoder Sensor / Temperature Sensor Removal
1. Remove all covers.
2. Remove printhead carrier.
3. Remove screw from the encoder sensor.
4. Unplug cable and remove sensor.
Encoder Strip Removal
1. Remove all covers.
2. Depress retainer clip on left side of encoder strip.
3. Remove encoder strip.
Note: The encoder strip must be inserted into the encoder
sensor before reinstalling.
A
B
C
D
