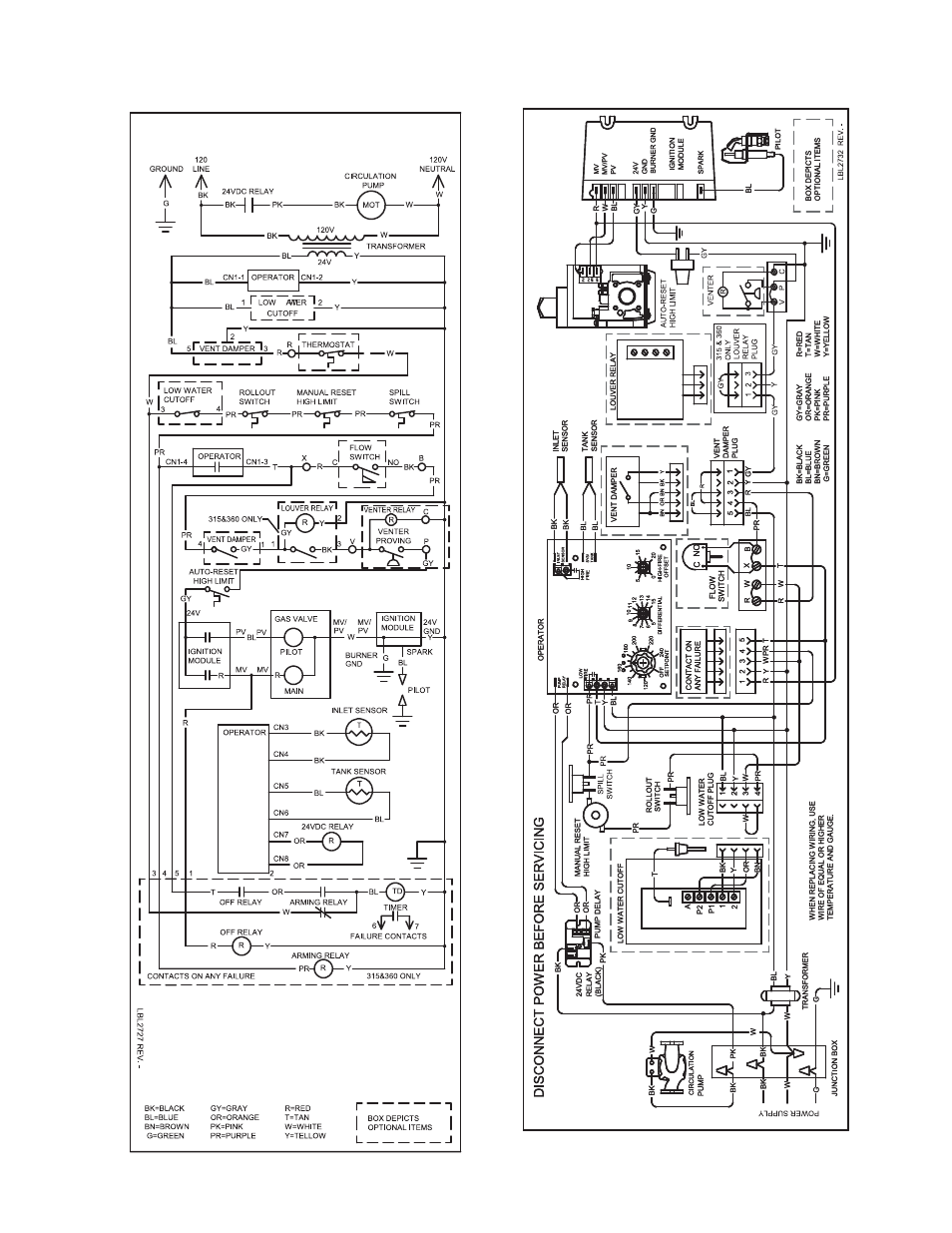

Schematic Diagram - F9 Unit

90,000 - 399,999 Btu/hr Models

Wiring Diagram - F9 Unit

90,000 - 399,999 Btu/hr Models
