Lochinvar 000 - 500 User Manual

Page 46

background image

46

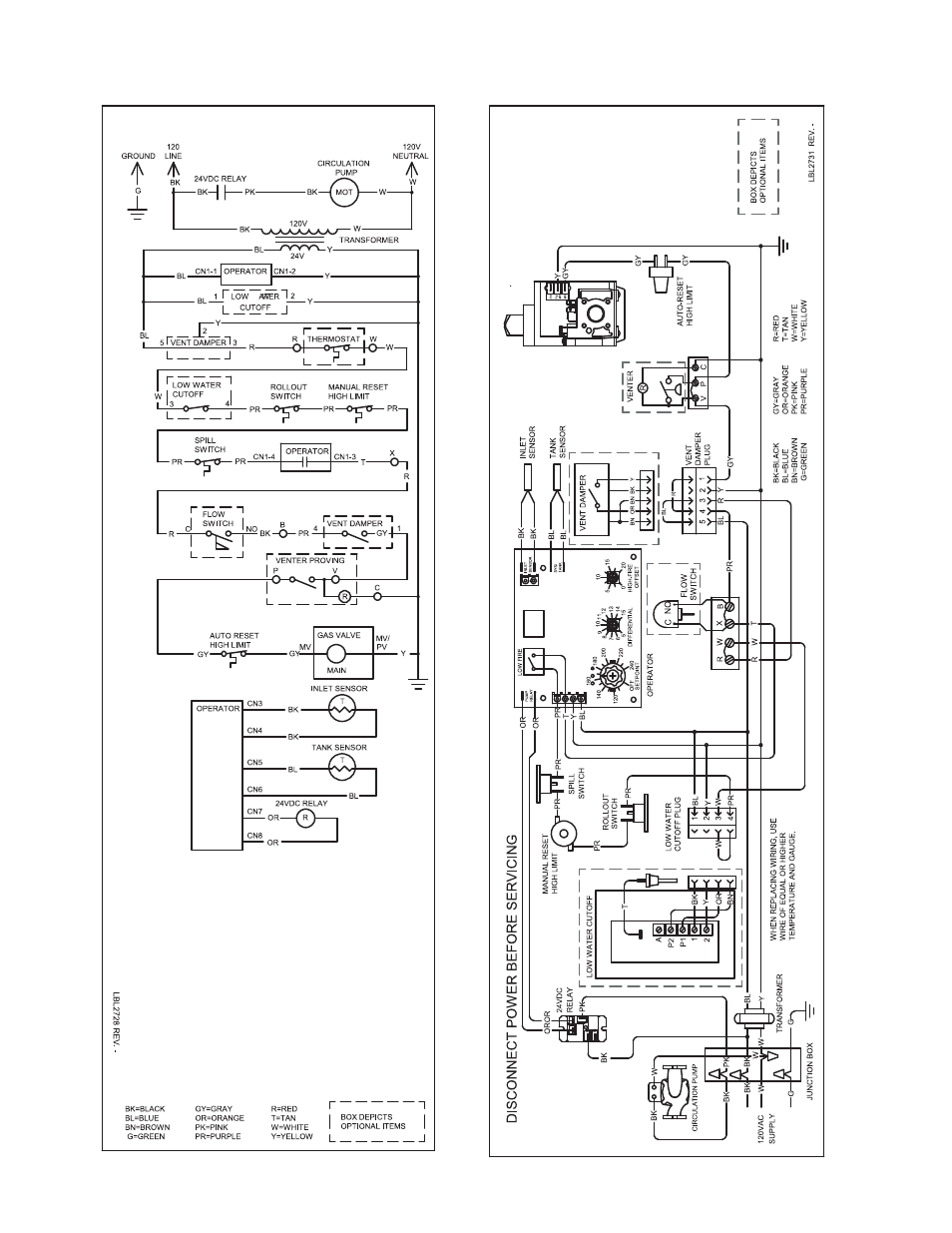

Schematic Diagram - F1 Unit

90,000 - 270,000 Btu/hr Models

Wiring Diagram - F1 Unit

90,000 - 270,000 Btu/hr Models
