Mounting Pad Installation
The gate operator mounts bolted to a custom poured
concrete mounting pad. The pad supports the operator and
prevents it from moving during operation.
An optional post mount kit is also available (P/N 2120-483)
which allows installation without a concrete mounting pad.
Gate Preparation
Before installing the pad, make sure the gate rolls or slides
freely, and that all exposed rollers are properly covered. The
gate must be covered with fabric with openings no larger
than 2-1/4” in size, to a minimum height of 48” above ground
level. On picket-style gates, if pickets are spaced less than
2-1/4” apart, mesh is optional.
Mounting Pad Specifi cations
Recommended pad size is 21” x 21” minimum. Pad depth
should be set according to local codes and at least as deep
as frost line. 5/8” J-bolts may be set into the concrete before
it sets following the dimensions shown, or drilled after the
concrete sets.
CHAIN LINE MUST BE IN
STRAIGHT LINE WITH OUTPUT
SPROCKET OF OPERATOR!
COVER GATE WITH FABRIC WITH
OPENINGS SMALLER THAN 2 1/4"
TO A MINIMUM HEIGHT OF 48"
ABOVE GROUND, ON PICKET
STYLE GATES, IF PICKETS ARE
SPACED LESS THAN 2 1/4"
APART MESH IS OPTIONAL.
MINIMUM PAD SIZE 21" WIDE
X 21" DEEP PAD DEPTH PER
LOCAL CODES AND FROSTLINE
REQUIREMENTS
USE ROLLER COVERS
ON TOP AND BOTTOM
ROLLERS
OPERATOR SHOWN WITH
COVER REMOVED
PAD & CHAIN BRACKET
PLACEMENT
GATE
LENGTH
45 FT.
40 FT.
35 FT.
30 FT.
19"
17"
15"
13"
12"
10"
8"
6"
RECOMMENDED PAD AND
CHAIN BRACKET PLACEMENT
FOR PAD MOUNTING.
OPTIONAL POST MOUNT KIT
AVAILABLE: 2120-483
"A" "B"
CHAIN SAG ALLOWABLE
1/4-3/8" PER FOOT OF CHAIN
GATE POST
FENCE LINE
5" 11"
12"
10"
"B"
"A"
5"
10"
12"
3/4" DIA
11"
2"
2-1/4"
8"
GATE
OPENING
FOR
CONDUIT
PAD MOUNT DETAIL
MAX GATE
OPENING

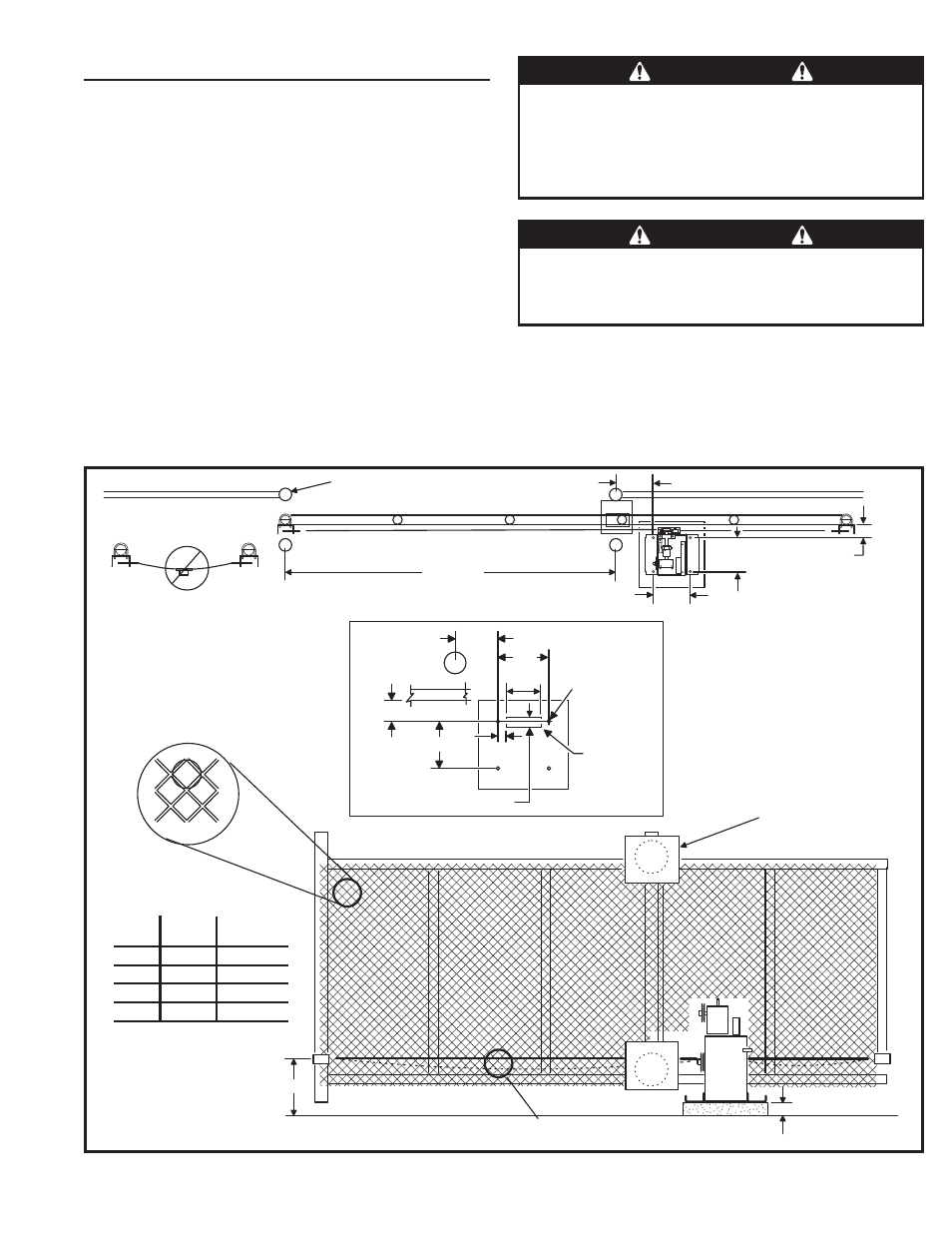

Figure 1. Mounting Pad Specifi cations
WARNING
The operator is intended for installation only on gates used for
vehicles. Pedestrians must be supplied with a separate access
opening. The pedestrian access opening shall be designed to
promote pedestrian usage. Locate the gate such that persons
will not come into contact with the vehicular gate during the
entire path of travel of the vehicular gate.
WARNING
The gate must be installed in a location so that enough
clearance is supplied between the gate and adjacent structures
when opening and closing to reduce the risk of entrapment.
Swing gates shall not open into public areas.
