SLR • SLC • SLD Slide Gate Operator Installation Guide
- 15 -
227968 Revision X19 8-11-2011
Advanced Controller Programming (Cont.)
Shadow Loop Open Prevention
If the shadow loop is triggered, it always prevents the gate from closing if
the Auto Close Timer activates or a CLOSE command is given while the
gate is at the full open position.
The controller can also be set to prevent the gate from opening if the
shadow loop is triggered while the gate is at the close limit position. This
prevents a swing gate from opening into a vehicle if it’s parked near the
gate on the inside.
Low Power Mode
This function is only used with DC slide gate Model SLD. The factory
default disables the Low Power Mode. When Low Power Mode is enabled,
and AC power fails, the controller will assume Low Power Mode after
60 seconds of gate inactivity. Low power mode turns off all accessory
power and indicators. Only inputs from the radio receiver, reverse loop,
open loop (optional by programming), fi re department input, or restoring
AC power will wake the Controller from Low Power Mode. Programming
Mode can still be accessed while the Controller is awake in Low Power
Mode.
✓ NOTE: This function will only be displayed in Model SLD operators.
Power Failure Mode
This function is only used with DC slide gate Model SLD. The factory
default is set for Fail Safe, alternately the Controller can be set for Fail
Secure, Open Immediate, or Close Immediate.
• Fail Safe: If the AC power fails and the battery voltage drops below
approximately 22 Volts, 5 seconds later the operator will cycle open
if not already open. When AC power is restored, or the battery gets
charged by solar panels, the operator will resume normal operation
and auto-close if programmed to do so.
• Fail Secure: If the AC power fails and the battery voltage drops
below approximately 22 Volts, 5 seconds later the operator will
cycle closed if not already closed. When AC power is restored, or
the battery gets charged by solar panels, the operator will resume
normal operation.
✓ NOTE: Fail Safe and Fail Secure are disabled if Stagger Mode is
enabled.
• Open Immediate: If the AC power fails, the operator will cycle
open if not already open and cease operation. When AC power is
restored, the operator will resume normal operation and auto-close
if programmed to do so.
• Close Immediate: If the AC power fails, the operator will cycle
closed if not already closed and cease operation. When AC power is
restored, the operator will resume normal operation.
✓ NOTE: This function will only be displayed in Model SLD operators.

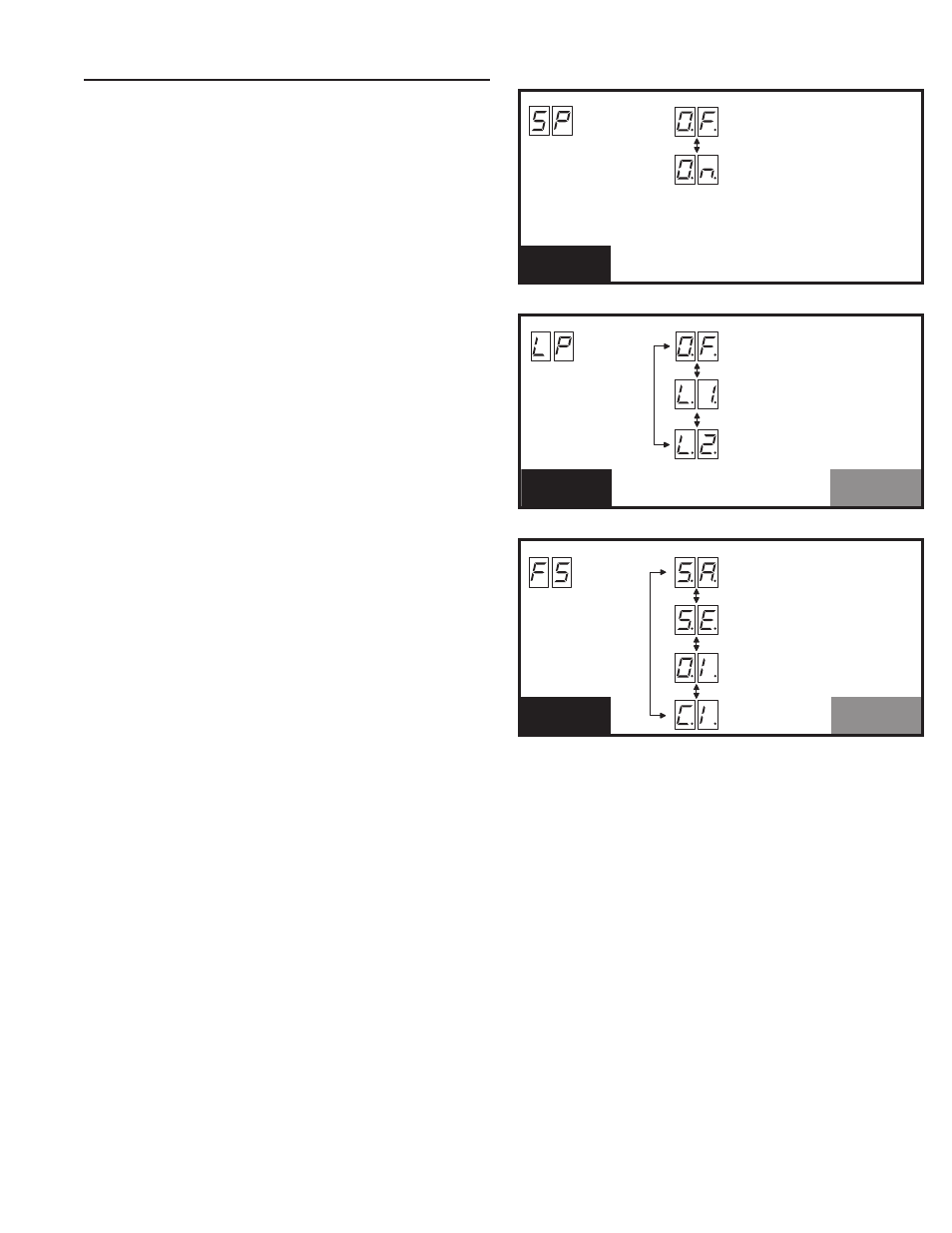

FUNCTION
SET TO FAIL SAFE MODE
OPTIONS
PRESS UP OR
DOWN TO CYCLE
THROUGH OPTIONS
PRESS ENTER TO
SELECT AN OPTION
POWER
FAILURE MODE
"FS"
SET TO FAIL SECURE MODE
DC MODELS
ONLY
SET TO OPEN IMMEDIATE MODE
SET TO CLOSE
IMMEDIATE MODE
FUNCTION
STANDARD OPERATION
SHADOW LOOP INHIBITS CLOSING ONLY
OPTIONS
PRESS UP OR
DOWN TO CYCLE
THROUGH OPTIONS
PRESS ENTER TO
SELECT AN OPTION
SHADOW LOOP
OPEN PREVENTION
"SP"
OPEN INHIBIT ON, SHADOW LOOP INHIBITS
OPENING AND CLOSING
FUNCTION
LOW POWER MODE DISABLED
OPTIONS
PRESS UP OR
DOWN TO CYCLE
THROUGH OPTIONS
PRESS ENTER TO
SELECT AN OPTION
LOW POWER
MODE
"LP"
LOW POWER MODE #1
RADIO WILL WAKE AND ACTIVATE,
REVERSE LOOP WILL JUST WAKE
DC MODELS
ONLY
LOW POWER MODE #2 - RADIO OR
OPEN LOOP WILL WAKE AND ACTIVATE,
REVERSE LOOP WILL JUST WAKE
THE FIRE DEPARTMENT INPUT
WILL ALWAYS WAKE UP CONTROLLER
