Danish Interpretation Systems User Manual
Manual 01 18 04438 12

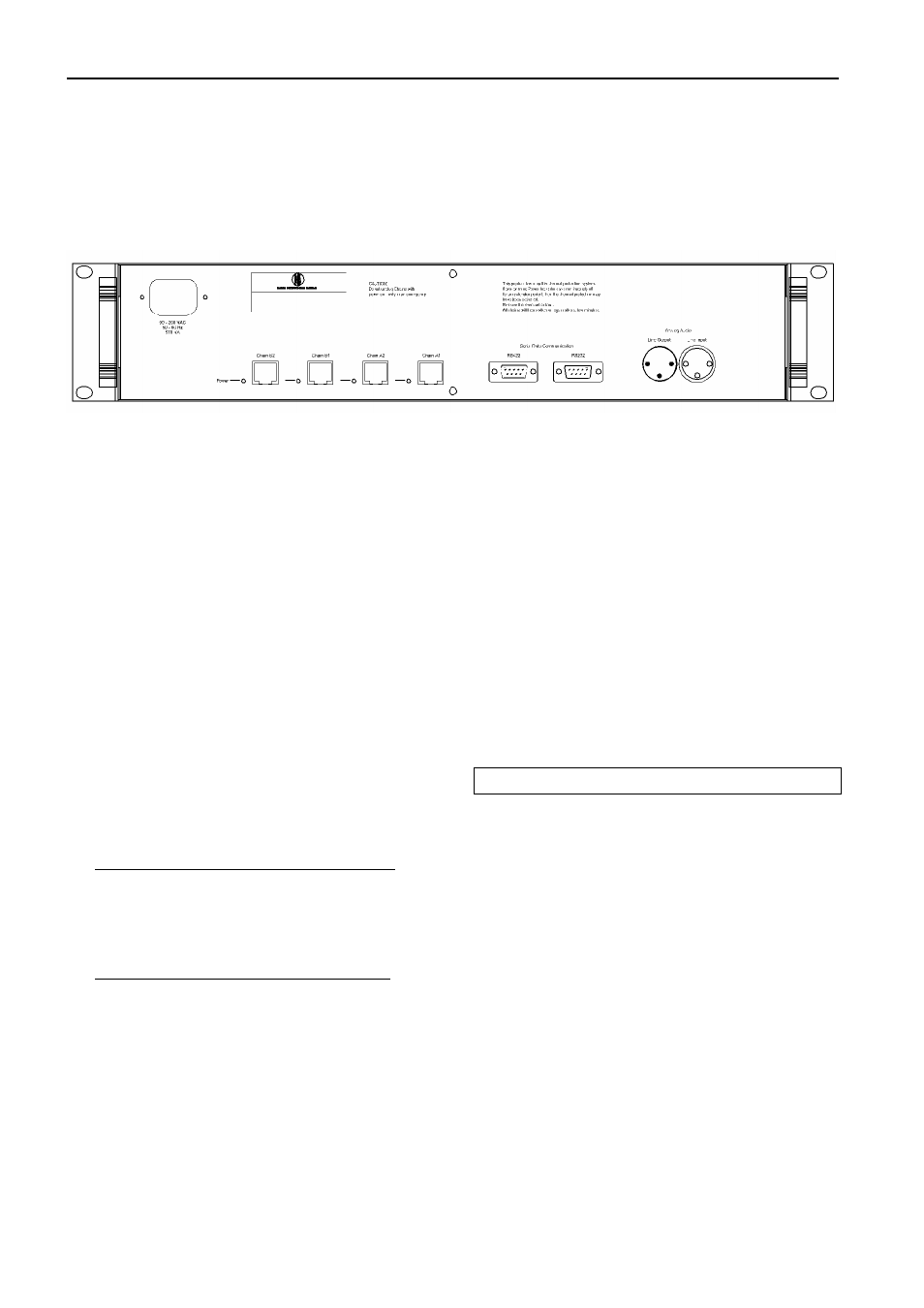

Back Panel Layout
Back Panel Connectors
Mains Power connector
Connection for mains power. See specs.
Analog Audio Line input
XLR Input connector.
For connection of external Line input signal i.e. the
Floor (Speaker) signal from another Conference
Microphone System or audio mixers. See specs.
Analog Audio Line output.
XLR Output connector.
This connector carries the “Floor” signal. It is used
either for recording purposes or for feeding signal
to an external loudspeaker system. See specs.
Serial Data Communication RS232
D-Sub9 connector
RS232 Serial connection for communication to PC
etc. Either the RS232 or the RS422 can be used.
Serial Data Communication RS422
D-Sub 9 connector
RS422 Serial connection for communication to PC
etc. Either the RS232 or the RS422 can be used.
Chain A1 & A2
RJ45 connector, 2 pieces
DCS-LAN connectors for connection to DM/CM
6xxx, IS 6032, IS 6132, CS 6032, EX 6010, AO
6004/6008 etc. For connecting Interpreter Sets for
up to 16 languages. If more languages are required,
Interpreter sets for those languages have to be
connected to Chain B1 or B2.
Chain B1 & B2
RJ45 connector, 2 pieces
DCS-LAN connectors for connection to DM/CM
6xxx, IS 6032, IS 6132, CS 6032, EX 6010, AO
6004/6008 etc. For connecting Interpreter Sets for
up to 16 languages. If more languages are required,
Interpreter sets for those languages have to be
connected to Chain A1 or A2.
Power LED’s
Those LED’s light up when Power is available on
the connector next to the LED and only if the
voltage is over 24V (not overloaded).
System settings
Control of the system settings is done through
selections made in the main menu. Pressing the
Menu button will show the Main menu, which
comprises the following entries:
•
Audio control
•
Delegate setup
•
Interpreter setup
•
Ambient Microphone
•
Units info
•
RS232 setup
•
Security setup
•
Configuration
•
License info
•
Firmware info
