ACCESSORIES C-7 C-7
POWER FEED® 25M
Retur
n
to
Section
T
OC
Retur
n
to
Section
T
OC
Retur
n
to
Section
T
OC
Retur
n
to
Section
T
OC
Retur
n
to
Master
T
OC
Retur
n
to
Master
T
OC
Retur
n
to
Master
T
OC
Retur
n
to
Master
T
OC
ELECTRIC SHOCK can kill.
• Turn the input power OFF at the disconnect
switch before working on this equipment.
• Do not touch electrically hot parts.
• Only qualified personnel should install, use or
service this equipment.
------------------------------------------------------------------------
Water cooled guns require the installation of the K590-
6 Water Connection Kit. The kit components are rated
up to 70 psi (5bar) and 158°F (70°C). See this Section
for kit installation instructions.

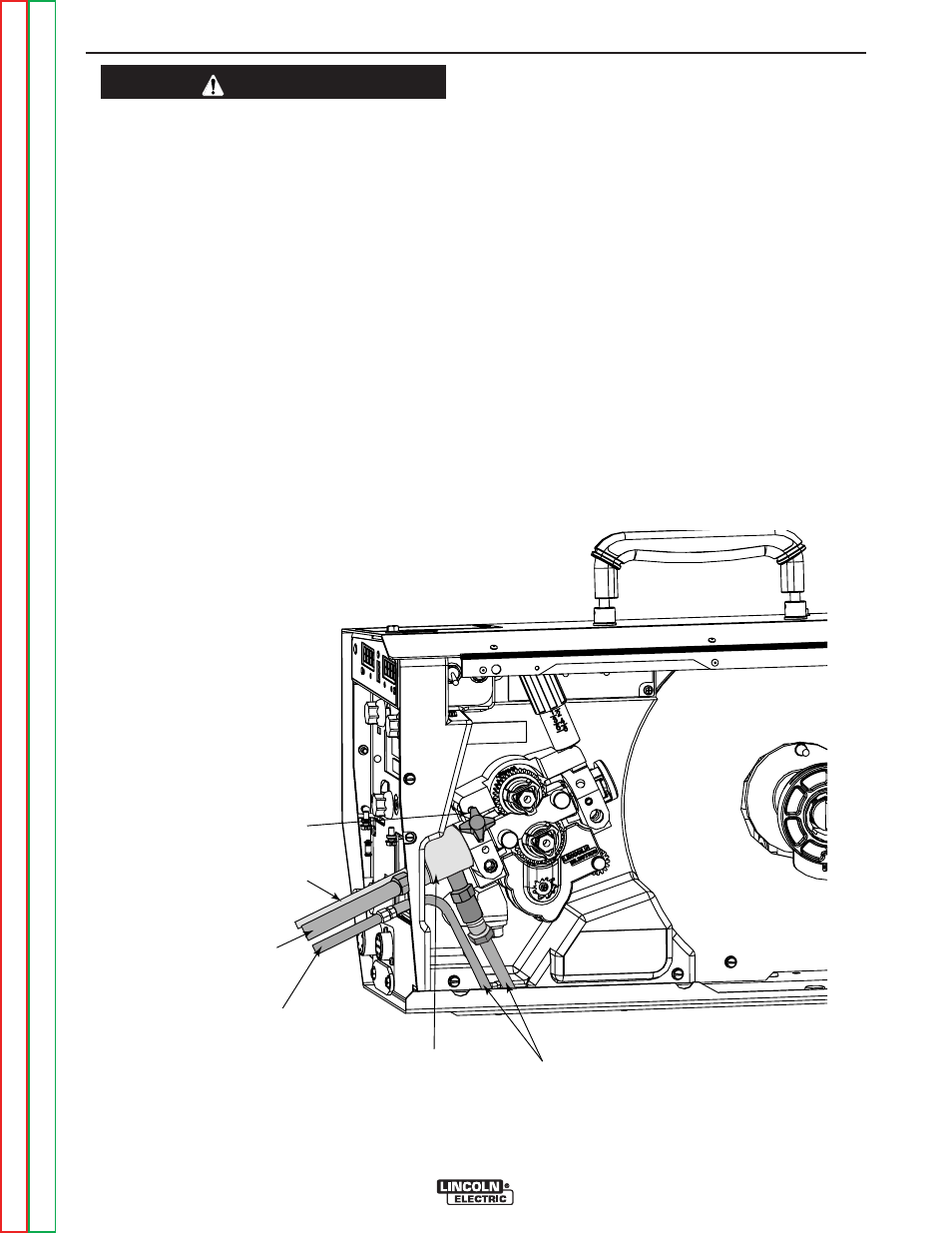

PYTHON WATER COOLED GUNS
(See Figure C.1)
K2212-xx push-pull guns require both the K590-6
water connection kit and the K2339-1 push-pull gun
connection kit. The hoses from the water connection
kit assemble directly to the push-pull gun bushing as
shown below. Secure the conduit from the python gun
in the gun bushing by using the thumb screw.
WARNING
THUMB THUMB
SCREW SCREW
CONDUIT CONDUIT
ELECTRODE ELECTRODE
CABLE CABLE
GUN GUN
BUSHING BUSHING
WATER WATER
HOSES HOSES
WATER WATER
HOSE HOSE
FIGURE C.1
