GMAW (MIG) SYNERGIC WELDING
Synergic welding allows for easy procedure setting.
The WFS and Voltage change together to maintain an
optimal arc length. During synergic welding, when the
WFS (left) knob is rotated, the voltage is adjusted
accordingly to maintain a similar arc length.
6
4 3
2
5
1

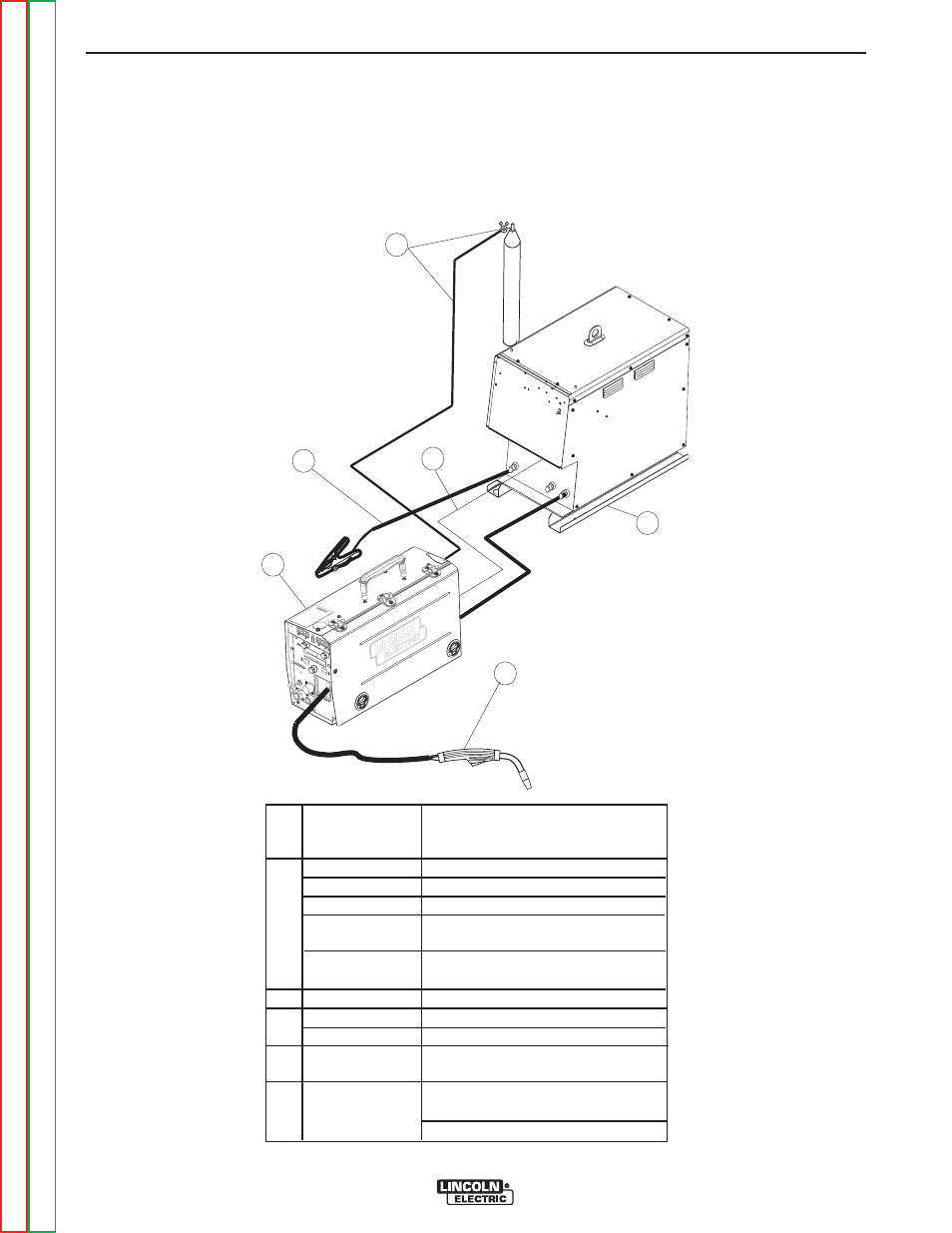

FIGURE B.5
K2368-1 Power Wave® 355M
1 K2202-1 Power Wave® 455M
K2203-1 Power Wave® 455M/STT
K2230-1 Power Feed® 10M, Bench Model
K2234-1 Power Feed® 10M Dual, Bench Model
K2536-1 Power Feed® 25M
2 KP1696-xx, Drive Roll Kit, 2 Roll Feeder
KP1697-xx
KP1505-xx,
Drive Roll Kit, 4 Roll Feeder
KP1507-xx
3 K1543-xx Digital Control Cable
4 K1842-xx Weld Power Cable, Lug to Lug
K910-xx Ground Clamp
5 See Magnum MIG gun
Literature
Deluxe Regulator for Mixed
6 K586-1 Shielding Gases
Shielding Gas Hose
