76
APPENDIX
EXTERNAL CONTROL DEVICE SETUP
APPENDIX
RS-232C Setup
Connect the RS-232C input jack to an external control device (such as a computer or an A/V
control system) and control the TV’s functions externally.

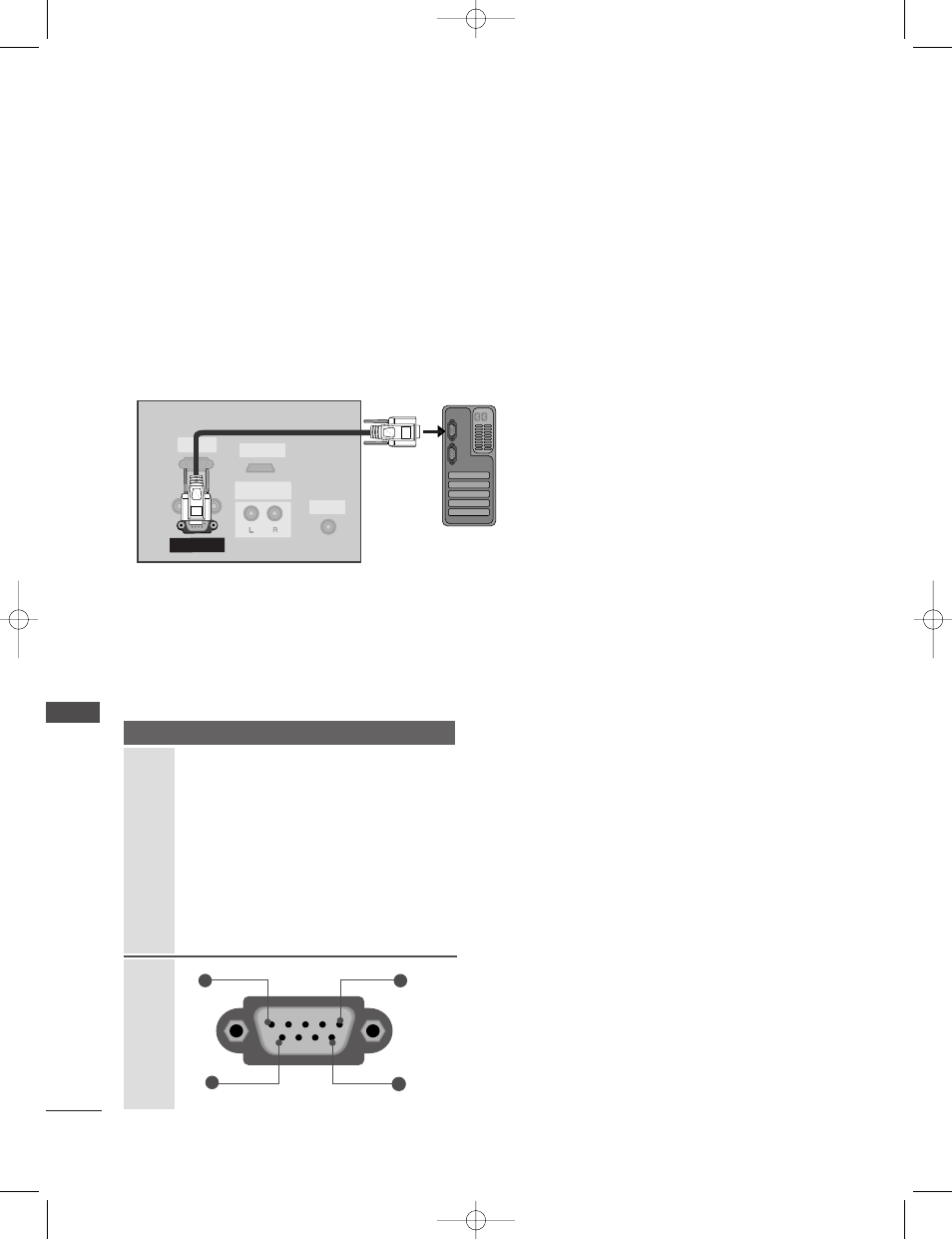

Connect the serial port of the control device to the RS-232C jack on the TV back pane l.RS-
232C connection cables are not supplied with the TV.
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
RGB IN RGB IN
(PC/DTV) HDMI/D HDMI/DVI IN VI IN
UPGRADE UPGRADE
(MODULE) (MODULE)
AUDIO OUT UDIO OUT
VARIABLE ARIABLE
RS-232C IN
(CONTR (CONTROL OL & SER SERVICE) VICE)
PC
Type of Connector; D-Sub 9-Pin Male
RGB IN
(PC/DTV)
HDMI/DVI IN
UPGRADE
(MODULE)
AUDIO OUT
VARIABLE
RS-232C IN
(CONTROL & SERVICE)
No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
9 9
1 5
6
