20
VCR SETUP
CONNECTIONS & SETUP
CONNECTIONS
&
SETUP
( )
AUDIO VIDEO S-VIDEO A
V
IN 1
1
2
MONO ( )
AUDIO UDIO VIDEO VIDEO S-VIDEO S-VIDEO A V IN 1
AV OUT
VIDEO AUDIO
1
2
COMPONENT IN
S-VIDEO
OUT
IN
(R) AUDIO (L) VIDEO
3 4
OUTPUT
SWITCH
ANT OUT
ANT IN
AUDIO OUT
VARIABLE
ANTENNA
IN
V V C C R R
1
2

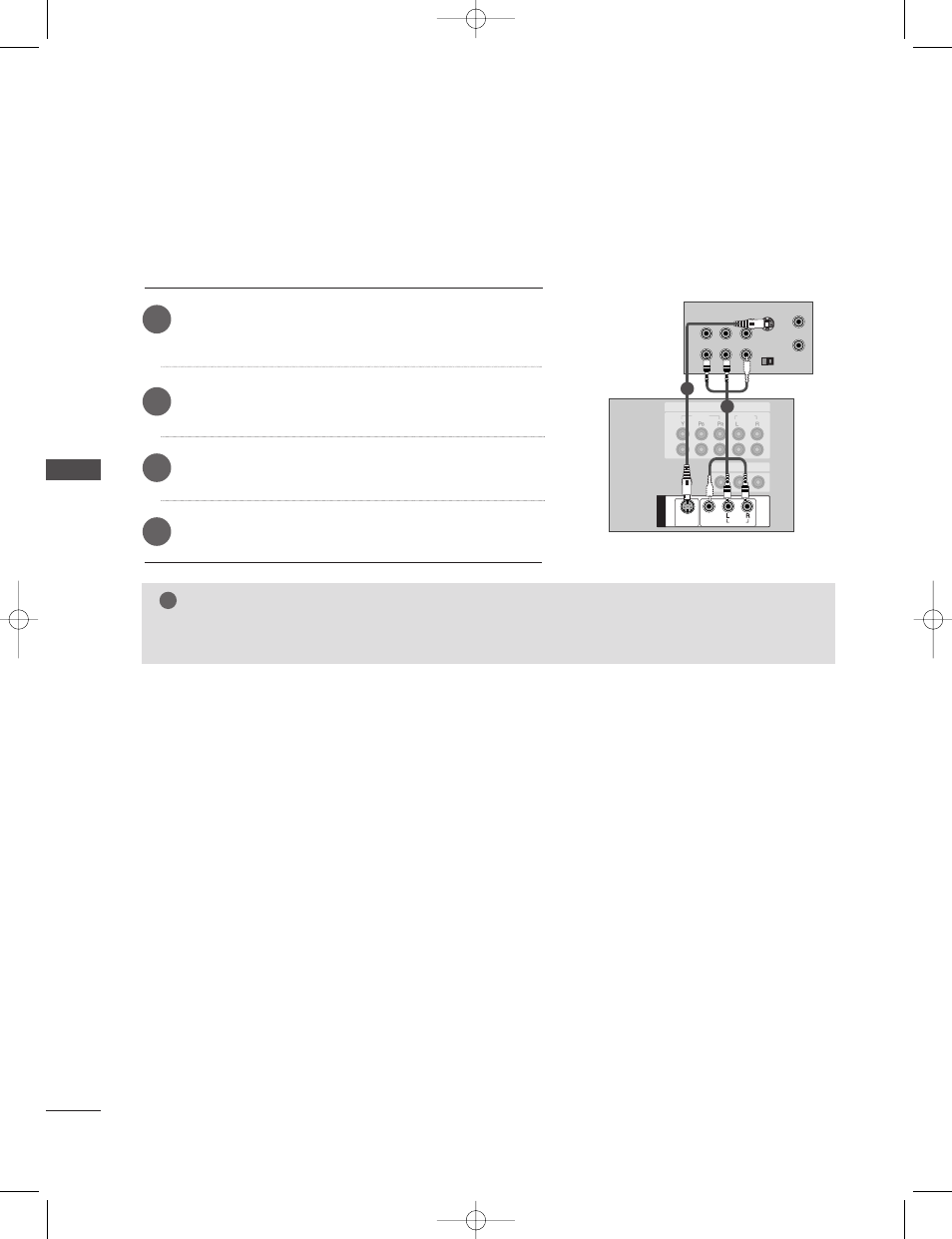

When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the S S--V VIID DE EO O
input on the set. The picture quality is improved; com-
pared to normal composite (RCA cable) input.
Connect the audio outputs of the VCR to the A A U U D D II O O
input jacks on the set.
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
1
2
3
Select AV1 input source with using the II N N P P U U T T button on
the remote control.
4
NOTE !
G G If both S-VIDEO and VIDEO sockets have been conneced to the S-VHS VCR simultaneously, only the S-
VIDEO can be received.
