2-9
Installation
54-0157 Rev. H
2.3.1 Connecting the Antenna Data/Power
Cable
1. Connect one end of the antenna data/power cable
to the antenna’s data/power connector and lock in
place (see Figure 2-10).
2. Route the other end of the data/power cable down
through the cable access hole in the vehicle’s roof
and out through the switchplate panel cutout.
3. Connect the data/power cable to the switchplate’s
data/power connector and lock in place (see
Figure 2-11).

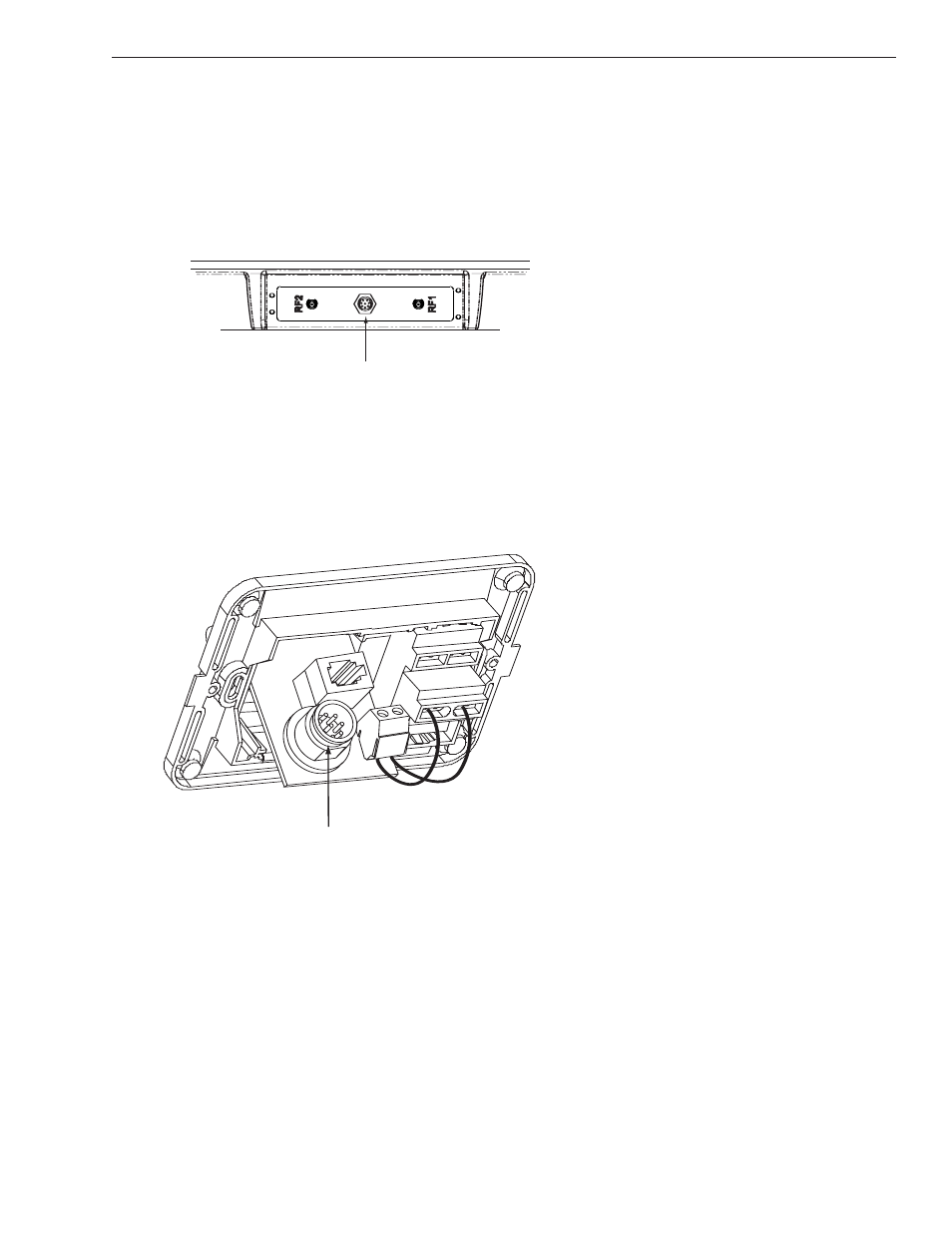

Data/Power
Figure 2-10
Antenna Data/Power Connector
Data/Power
Figure 2-11
Switchplate Data/Power Connector
