Left Fascia
Back of cart
Side Burner Shelf
A
B
C
Lid removed for clarity
8

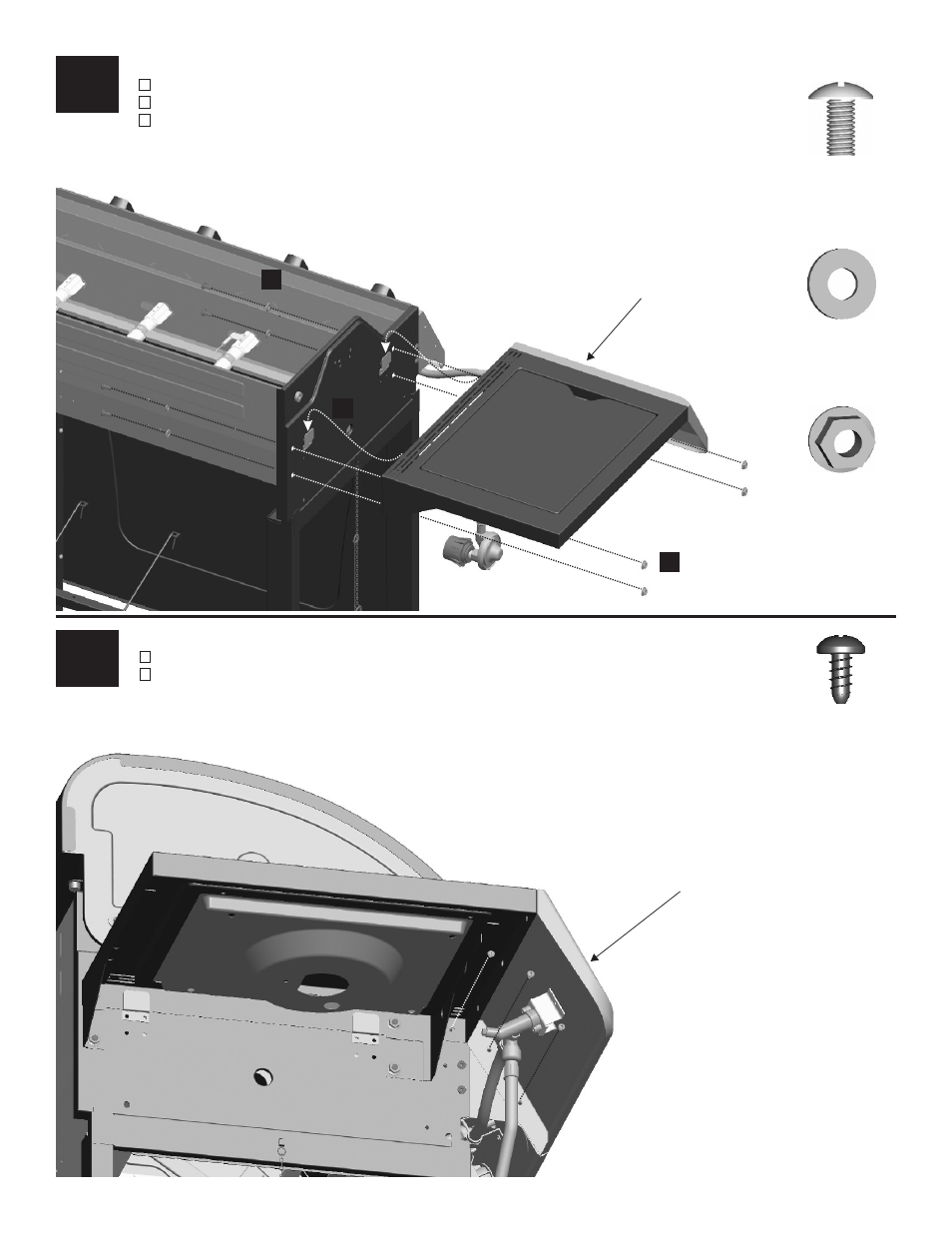

Side Burner Shelf
9
Left Fascia
CAUTION: Fascia must be securely tightened to firebox to safely move grill.
Attach fascia to firebox with (3) #8-32x3/8" sheet metal screws.
(4) fiber washers (4) 1/4-20x1/2" screws (B).
.
Hook side wall of side burner shelf over support brackets on side of firebox (A).
Inside firebox insert and as shown
Attach shelf using (4) 1/4-20 flange nuts (C)
1/4-20x1/2" screws
Qty. 4
7mm Fiber Washers
Qty. 4
Qty. 4
1/4-20
Flange Nuts
18 • 464220110
sheet metal screws
Qty. 3
#8-32x3/8"
