Kenmore 415.1612801 User Manual
Page 15

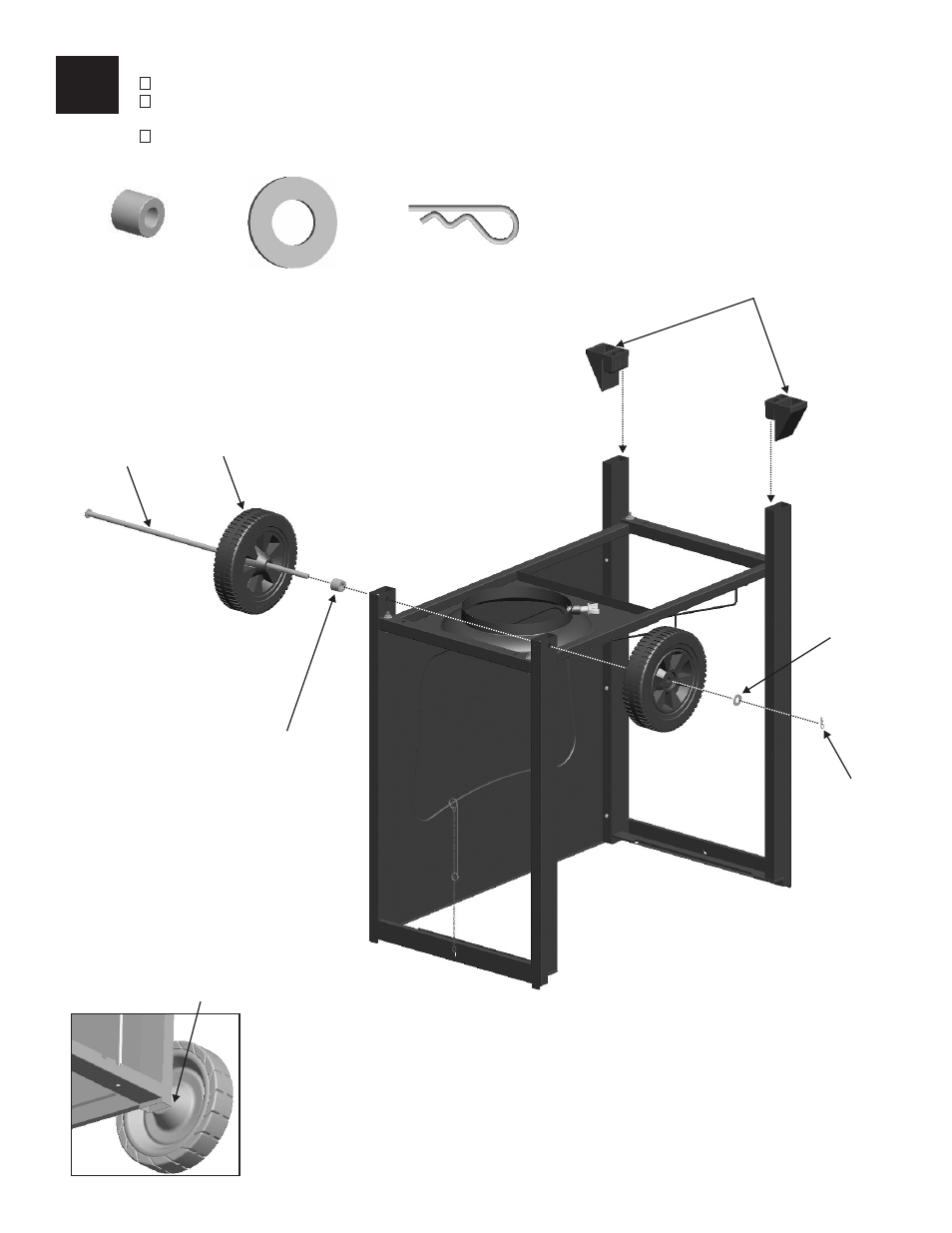

Wheels and Leg Extenders to Cart
Turn cart assembly upside down.
Insert axle rod through wheel, wheel spacer, legs and other wheel.
Attach with (1)
axle washer and hitch pin.
Hammer leg extenders into right legs.
Be sure to face “cone” side of wheel against leg.
4
464220110 • 15
"Cone" side of wheel against leg
Hitch Pin
Qty. 1
Axle Washer
Qty. 1
Wheel Spacer
Qty.1
Axle Rod
Wheel
Wheel Spacer
Hitch Pin
Axle Washer
Leg Extenders
