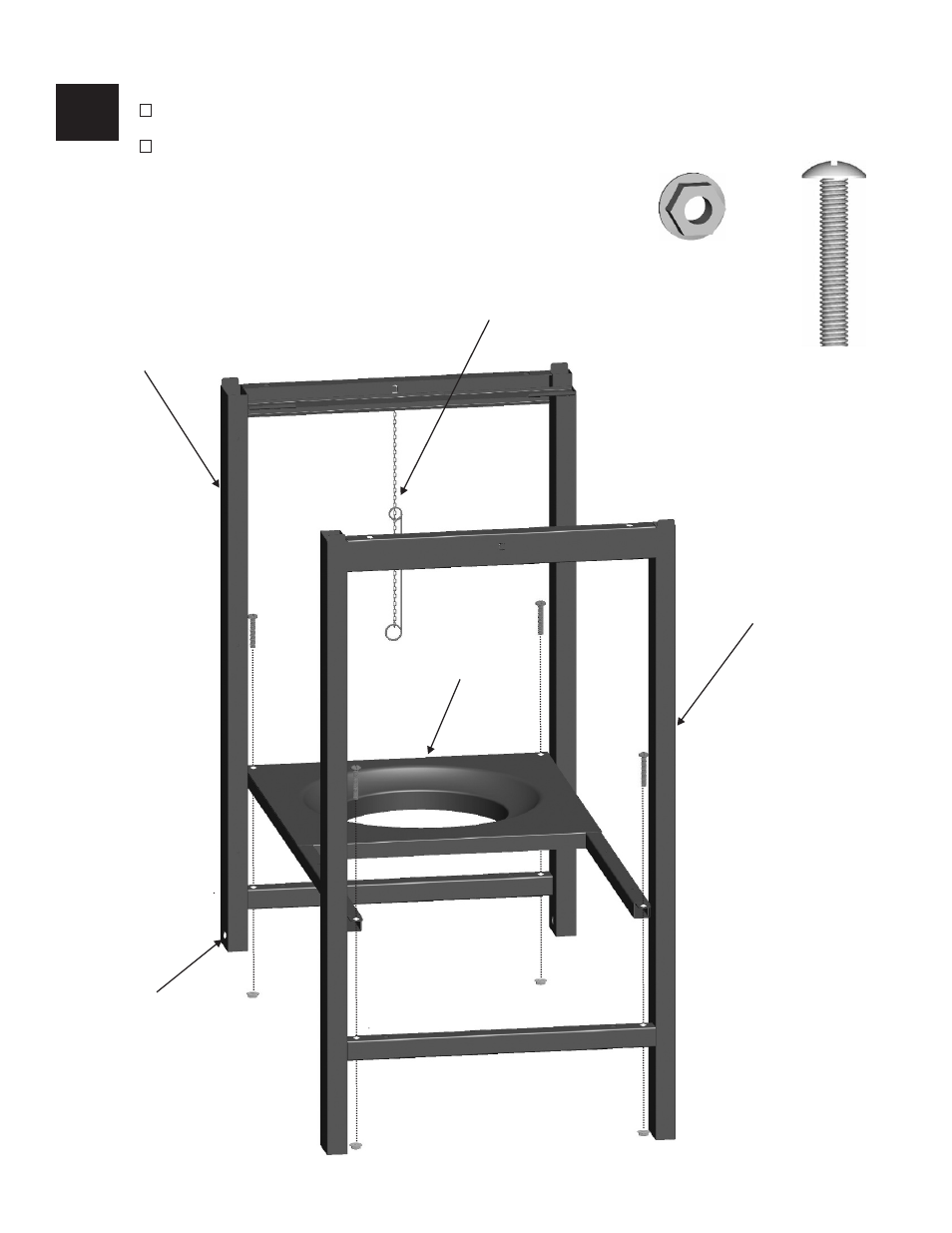

Place bottom shelf end with cut out hole for LP cylinder between leg assembly with axle holes. Attach to right and left leg
assemblies with (4) 1/4-20x1-1/2" screws and (4) 1/4-20 flange nuts.
Tighten securely.
Bottom Shelf to Legs
464220110 • 13
Qty. 4
1/4-20 Flange nuts
Qty. 4
1/4-20x1-1/2" Screws
Match Holder
Right Leg Assembly
Bottom Shelf
Front
Rear
Left Leg Assembly
Axle hole
CAUTION: When unpacking grill components, two people should raise grill head from the shipping box.
