English

7 Installation procedure

Since there are large variety of settings and

connections possible according to applications, read

the instruction manual well to select the proper

setting and connection.

1. Remove the ignition key and disconnect the

negative

· terminal of the battery to prevent short

circuits.

2. Set the unit according to the intended usage.

3. Connect the input and output wires of the units.

4. Connect the speaker wires.

5. Connect the power wire, power control wire and

grounding wire following this order.

6. Install the unit in the car.

7. Connect the negative

· terminal of the battery.

CAUTION

• If sound is not output normally, immediately turn

power off and check connections.

• Be sure to turn the power off before changing the

setting of any switch.

• If the fuse blows, check wires for shorts, then

replace the fuse with one of the same rating.

• Check that no unconnected wires or connectors

are touching the car body. Do not remove caps

from unconnected wires or connectors to prevent

short circuits.

• Connect the speaker wires to appropriate speaker

connectors separately. Sharing the negative wire

of the speaker or grounding speaker wires to the

metal body of the car can cause this unit to fail.

• After installation, check that the brake lamps,

winkers, and wipers work properly.

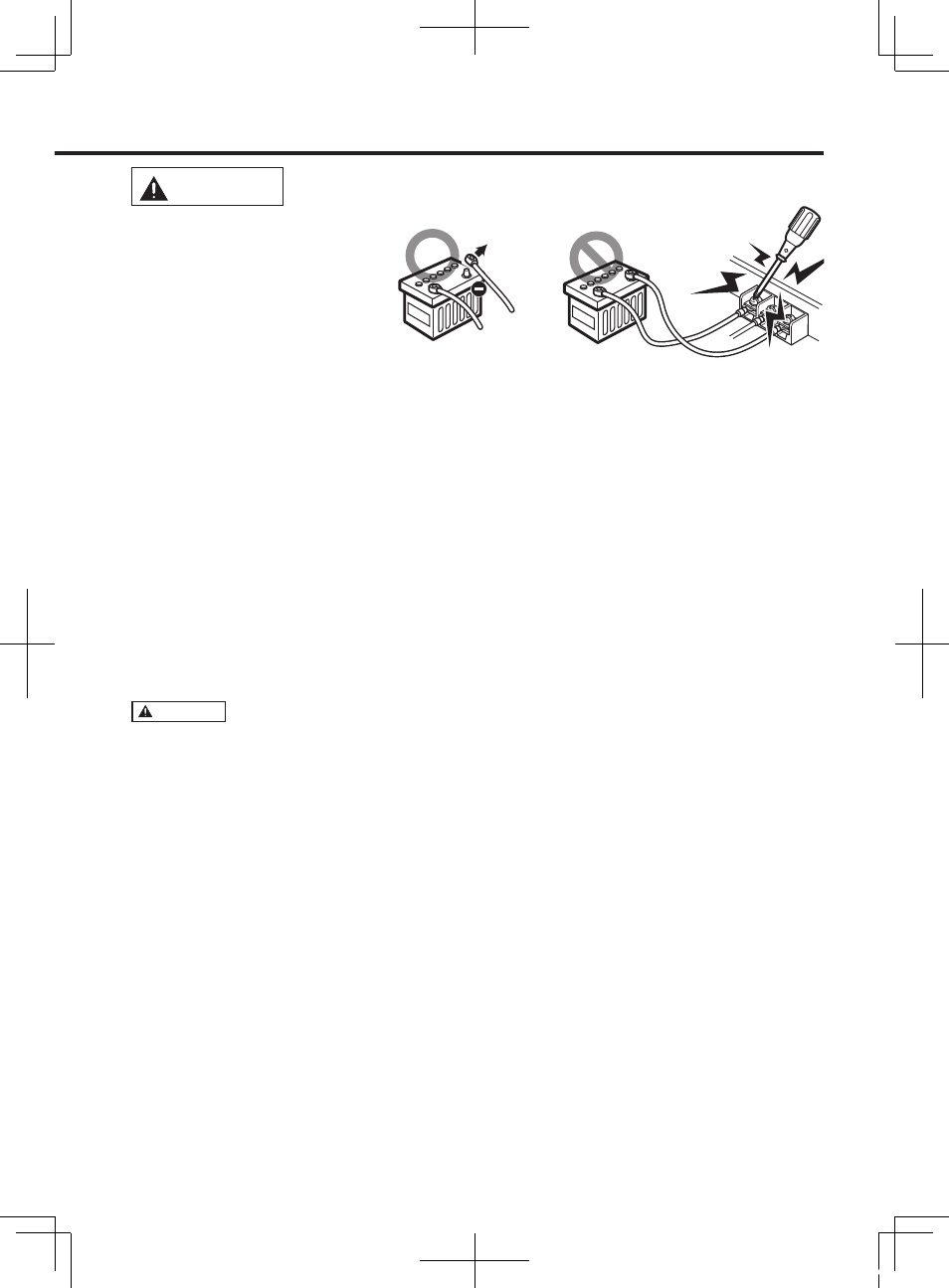

WARNING

Remove the ignition

key and disconnect the

negative

· terminal of

the battery to prevent

short circuits.
