4

English

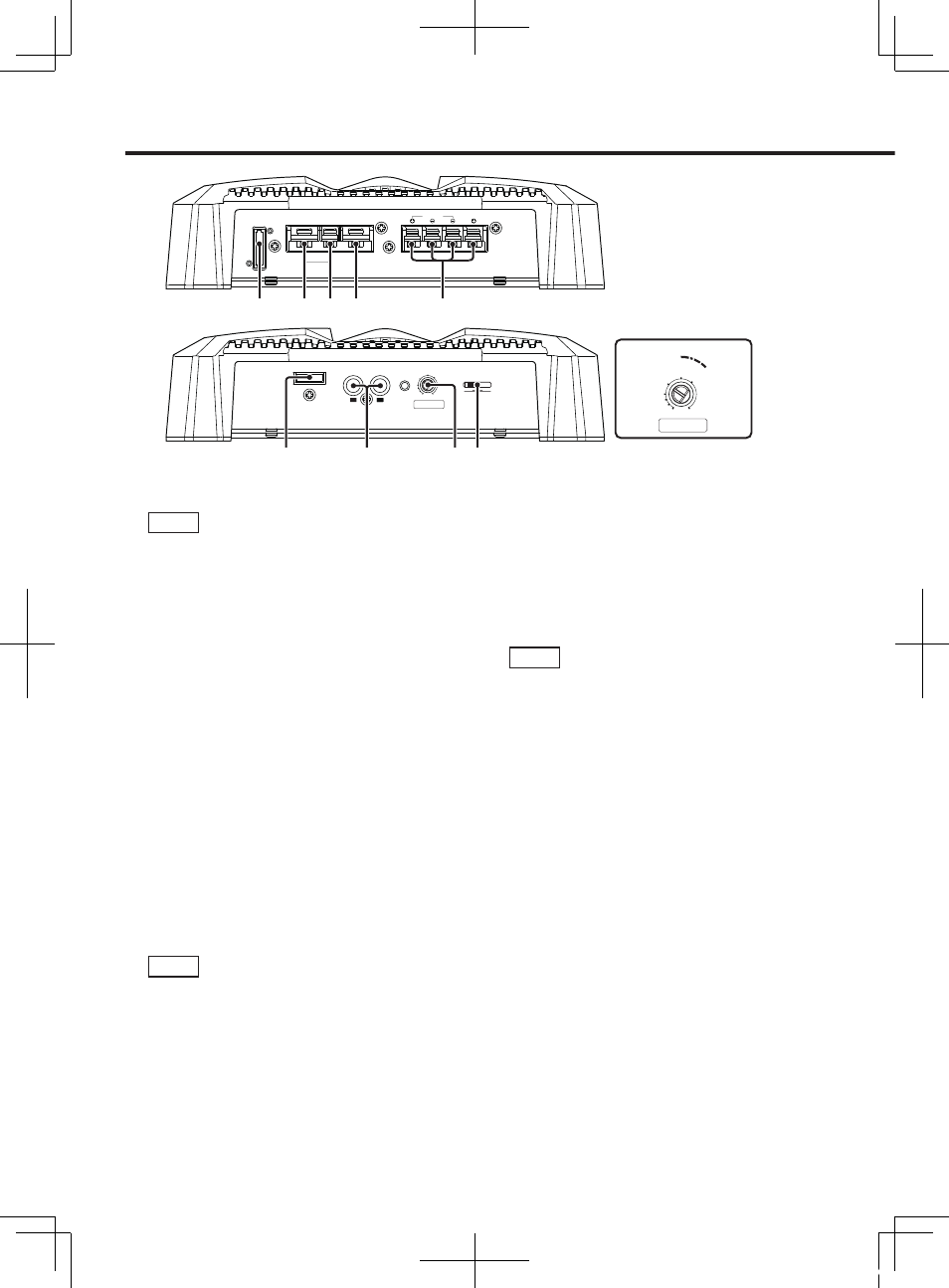

Controls / Indicator

(W)

30

40

20

10

0.5

R

LINE IN

INPUT

SENSITIVITY[V]

0.2

[MAX]

[MIN]

5

SPEAKER LEVEL INPUT

L

FILTER

OFF

LPF

0.3

1

4

3

2

FUSE [25A]

SPEAKER OUTPUT

P.CON

RIGHT

LEFT

BRIDGED

GND

POWER IN

BATT.

0.5

INPUT

SENSITIVITY[V]

0.2

[MAX]

[MIN]

5

0.3

1

4

3

2

1

Speaker level input terminals

NOTE

• The genuine-accessory car stereo shall have a

maximum power output of no more than 40 W.

• Do not connect the speaker output leads from

a power amplifier (Optional) to the speaker

level input terminals of this unit, for this may

cause malfunction or damage.

• Do not connect cables and leads to both RCA

cable input jacks and the speaker level input

terminals simultaneously, for this may cause

malfunction or damage.

• Connect the power control lead to a power

supply which can be turned ON/OFF by

the ignition key switch (ACC line). With this

connection, shock noise may be generated

when the power of the genuine-accessory car

stereo is switched ON/OFF.

2

LINE IN terminal

3

INPUT SENSITIVITY control

Set this control according to the pre-output level

of the center unit connected with this unit, or

to the maximum power output of the genuine-

accessory car stereo.

Use the diagram on the right as a guide.

NOTE

For the pre-output level or the maximum power

output, refer to the in the

instruction manual of the center unit.

4

FILTER switch

This switch allow filtering of the speaker output

signals.

• OFF position:

The original sound without filtering is output.

• LPF (Low Pass Filter) position:

Only frequencies of 80 Hz or lower are output.

(Frequencies above 80 Hz are cut.)

The speaker output is automatically switched to

monaural (L+R).

5

Fuse (5 A)

6

Battery terminal

7

Power control terminal

Controls the unit ON/OFF.

NOTE

Controls the unit power. Be sure to connect it with

all the systems.

8

Ground terminal

9

Speaker output terminals

• Stereo Connections:

When you wish to use the unit as a stereo

amplifier, stereo connections are used.

The speakers to be connected should have an

impedance of 2Ω or greater. When multiple

speakers are to be connected, ensure that the

combined impedance is 2Ω or greater for each

channel.

• Bridged Connections:

When you wish to use the unit as a high-

output monaural amplifier, bridged

connections are used. (Make connections to

the LEFT channel

9 and the RIGHT channel ·

SPEAKER OUTPUT terminals.)

The speakers to be connected should have an

impedance of 4Ω or greater. When multiple

speakers are to be connected, ensure that the

combined impedance is 4Ω or greater.
