Connections
Chapter 1: Connection of Equipment
COAXIAL
TV SCART
VCR SCART
OPTICAL
DIGITAL OUTPUT
(PCM/BIT STREAM)
1
2
CENTER
SUB WOOFER FRONT SURROUND
6CH. OUTPUT COMPONENT VIDEO OUTPUT
MIX LINE
OUTPUT
1 2
Y Cb Cr
VIDEO
OUTPUT
L
R
TV SCART
VCR SCART
S VIDEO OUTPUT
1 2

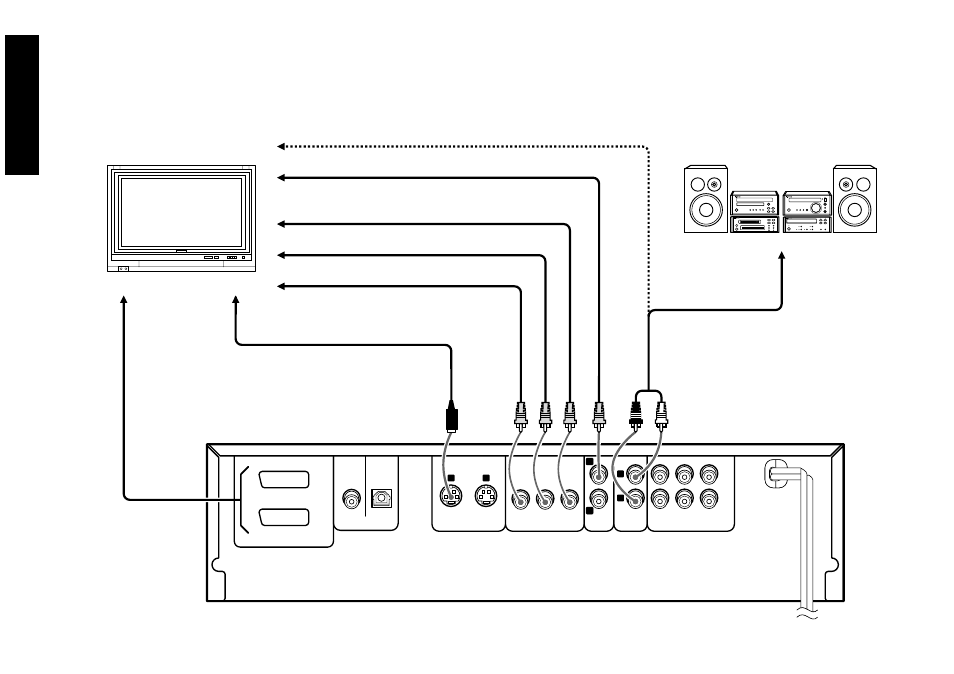

Connection with a TV or Stereo System
S Video cable (provided)
Video cable (optional)
Audio cable (provided)
Audio connection: To audio input jacks
Video connection: To video input jack
Audio cable (provided)
Audio connection: To audio input jacks
Video cable (optional)
Video cable (optional)
Video cable (provided)
Component video connection:
TV Stereo system
To color difference (Cr) input jack
To color difference (Cb) input jack
To luminance (Y) input jack
Select the video connection method according to the TV in use. When S-Video cable is connected, the ordinary video connection is not necessary.
S Video connection: To S Video input connector
SCART connection (For U.K. and Europe):
Connect the TV SCART connector to the TV's input connector.
Connect the VCR SCART connector to the VCR's input connector.
