A-61580 November 2007 4-5

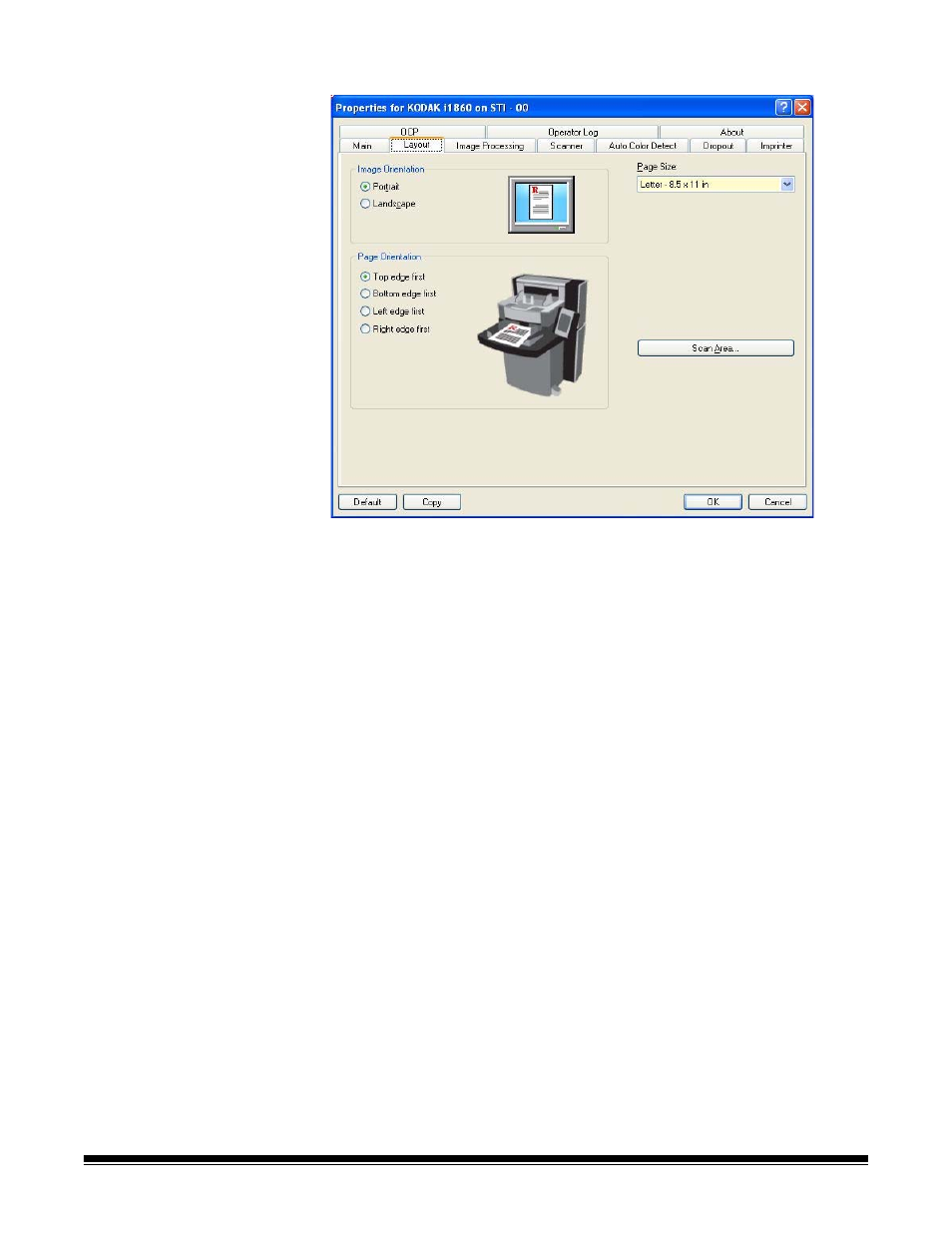

Layout tab
The Layout tab provides these options:
Image Orientation
• Portrait: displays the image orientation in the shape of a
conventional portrait, where height is greater than width.
• Landscape: displays the image orientation in the shape of a
conventional landscape painting, where width is greater than height.
Page Orientation — allows you to select the way you place your
documents in the scanner, Top edge first, Bottom edge first, Left
edge first or Right edge first.
Page size  the default page size is set when a scanner is first
selected. You can choose a different page size using the drop-down list
box.
Scan Area — displays the Scan Area dialog box. The Scan Area
options are only available for images when the cropping option is Fixed
to Transport or Relative to Document. See the section entitled “The
Scan Area dialog box” later in the chapter for more information.
