Setting up the system
• Never short circuit the + and – speaker cords.
• If the left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be
unnatural with ambiguous acoustic imaging. Be sure to connect the
speakers correctly.

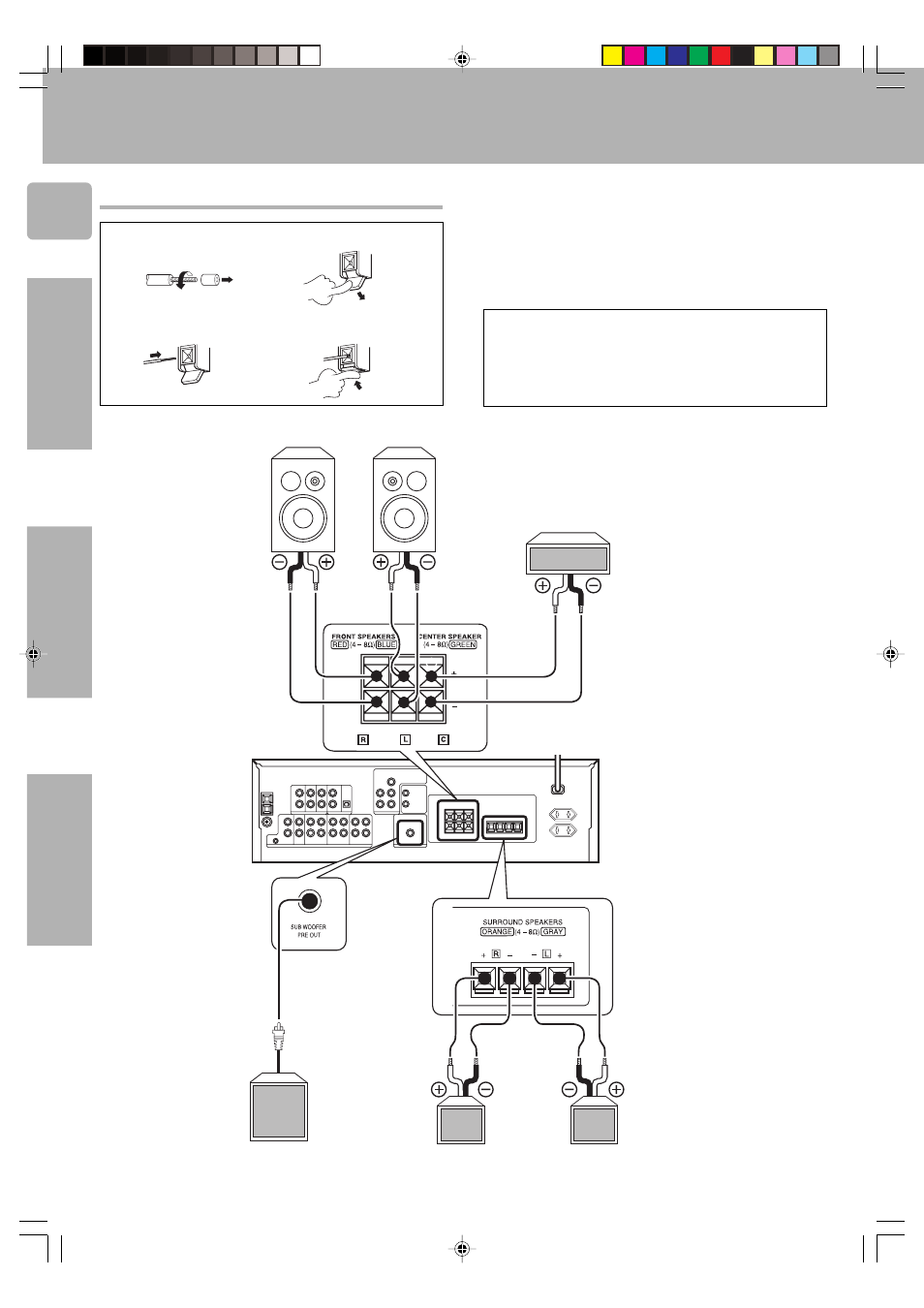

Connecting the speakers
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of the receiver, connect speakers with matching imped-
ance ratings. Using speakers with a rated impedance other than that
indicated on the rear panel of the receiver could result in malfunctions
or damage to the speakers or receiver.
Left Right
Surround Speakers
1 Strip coating. 2 Push the lever.
3 Insert the cord. 4 Return the lever.
Right
Front Speakers
Left
Center
Speaker
Powered
subwoofer
(Be sure to connect both surround speakers)
