10 N AMES OF PARTS
* This camera is a sophisticated optical instrument. Care should be taken to keep these surfaces
clean. Please read the care and storage instructions in the back of this manual (p. 116).

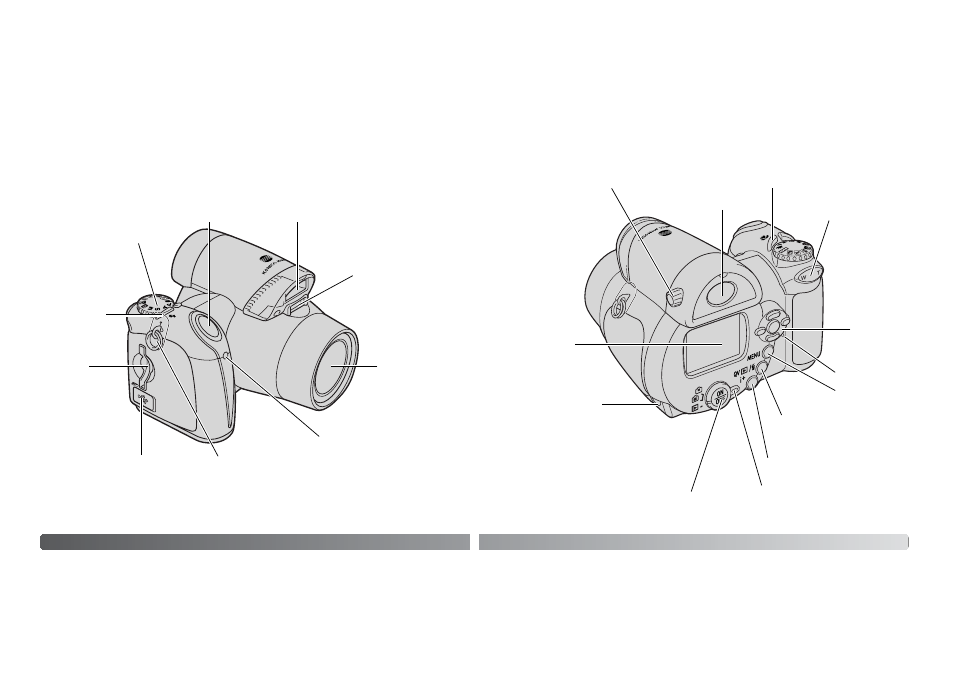

Names of parts
The battery-chamber door (p. 13) and tripod socket are located on the bottom of the
body.
Flash* (p. 26)
AF window*
Lens*
Shutter-release button
Self-timer lamp (p. 46)
Flash-mode
button (p. 26)
Exposure-mode dial
(p. 21, 29, 36 - 40)
Strap eyelet (p. 12)
Card slot
(p. 16)
USB port/Video-out terminal
(p. 84, 98, 108)
11
Diopter-adjustment dial (p. 17)
Viewfinder* (p. 17)
Macro button (p. 35)
Zoom lever
(p. 20)
Controller
Access lamp
LCD monitor*
DC terminal (p. 15)
Menu button
Quick View / Delete button
(p. 30, 31)
Information button (p. 28, 32)
Mode switch Main switch
