XD-9581MD (En)
8
Preparation section
Basic section
Application section
Knowledge sections
Before applying power
GND
AM
FM 75 Ω
SUPER
WOOFER
PRE OUT
Plugging the connector
Insert the plug straight into
the connector unit it locks While pushing the two sides
of connector in, pull it straight
out
Unplugging the connector
Connection of system control cord
Connect separately sold parts as shown in the figure.
Do not plug the power cord into the power outlet until all
of the required connections have been made.

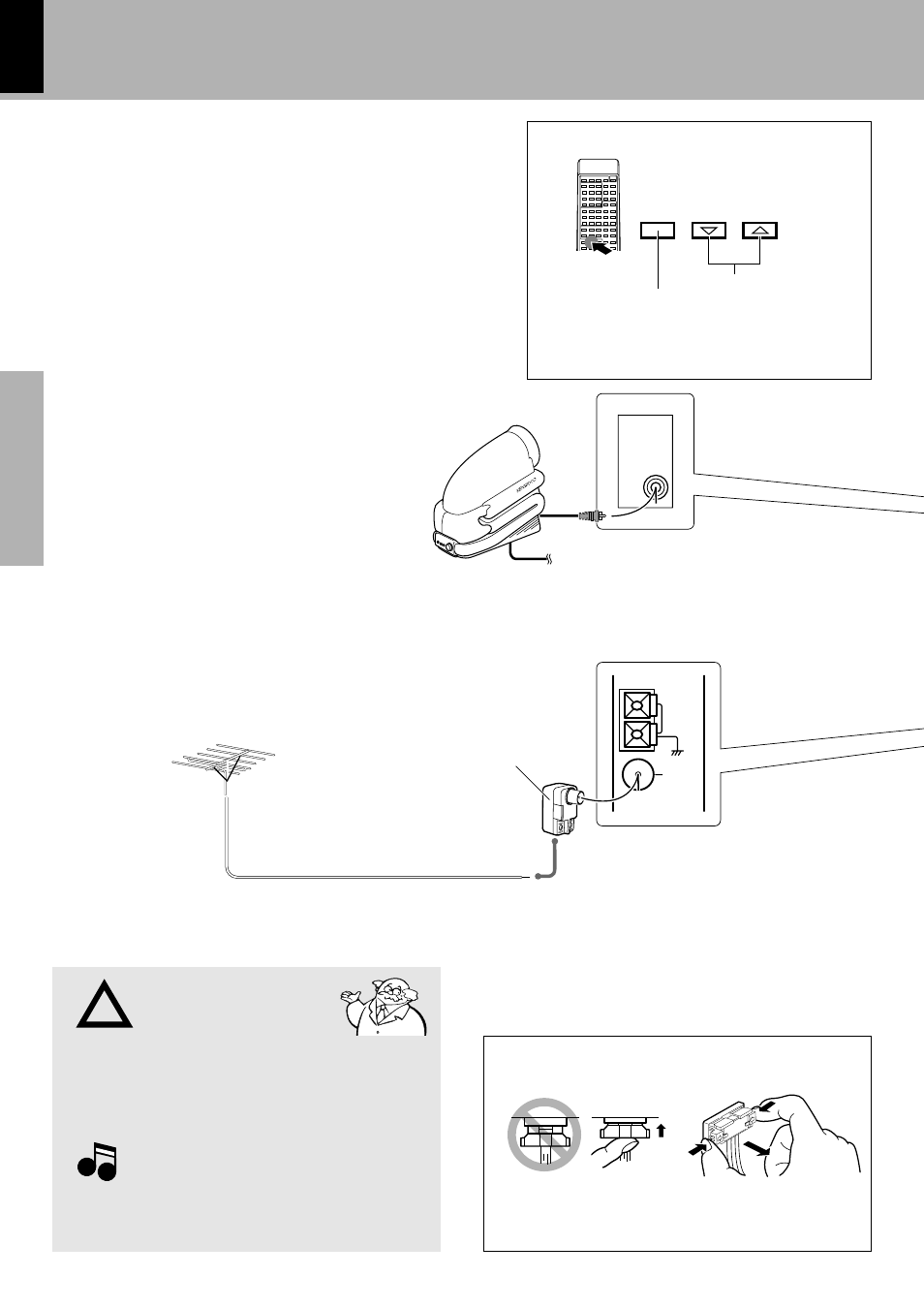

Connection of other components
and accesories
Please remove the room antenna after an outdoor
antenna has been installed.
FM outdoor antenna
Lead the 75
Ω
coaxial cable connected to the FM out-
door antenna into the room and connect it to the
FM 75
Ω terminal.
1. Be sure to insert all connection cords securely. If their connections are
imperfect, the sound may not be produced or noise may interfere.
2. Before plugging or unplugging a connection cord, be sure to unplug
the power cord from the wall AC outlet. If connection cords are
plugged or unplugged with the power cord left plugged in, malfunc-
tion or damage may result.
Caution Caution
1. In case an associated system component is connected, also read the
instruction manual of the component.
2. To pull the cable, press both ends of the socket and pull the cable
straight out.
Notes Notes
To wall AC outlet
Super woofer (SW-500) (optional)
Extremely low sound is played back powerfully. This can be used with any
type of playback.
System connection
Super-Woofer Operation
÷Once the super-woofer volume has been decided, the
VOLUME CONTROL can be used for volume adjustment
with the same balance.
÷Point the remote control towards the super-woofer.
Adjustment of the super-woofer volume.
Switching Super-woofer ON/OFF.
S.W.POWER S.W.VOLUME
Antenna adaptor
