MAINTENANCE WORK ON CHASSIS AND ENGINE
»
6
5
3
4
1
2
7 8
Main fuse

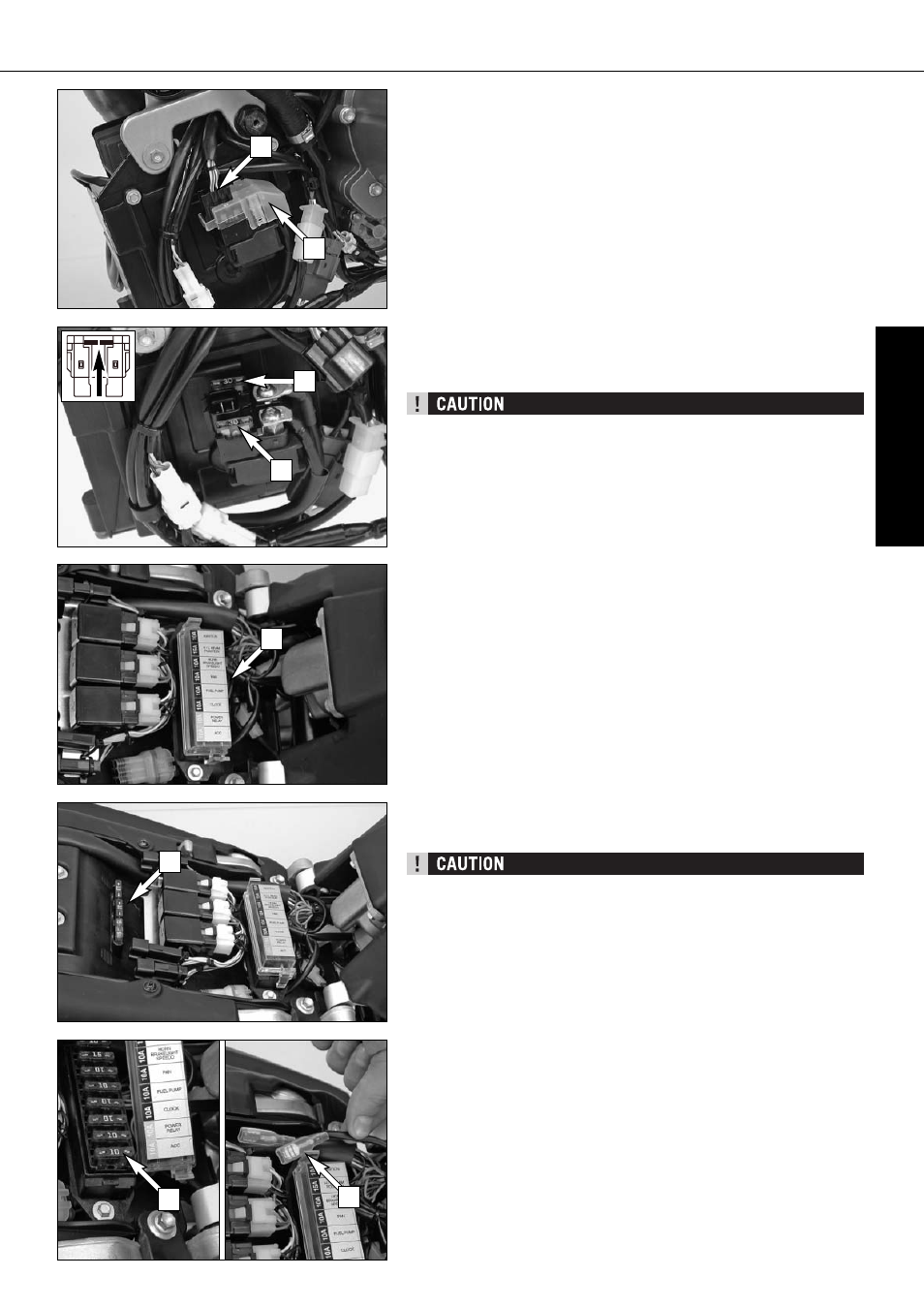

The main fuse protects all of the motorcycle's electric power consumers. The
main fuse is located on the left under the front spoiler.
Pull the connector [1] out of the bracket, remove the cap [2] and check the
main fuse [3]. A spare fuse [4](30 amperes)is also plugged into the bracket.
Always replace blown fuses with an equivalent fuse. Visit an authorized KTM
workshop if a new fuse blows again after it is inserted.
NEVER USE A STRONGER FUSE OR A REPAIRED FUSE. IMPROPER USE CAN
DESTROY THE ENTIRE ELECTRIC SYSTEM.
Fuses for individual power consumers
A fuse box is mounted under the seat containing additional fuses that pro-
tect the individual electric power consumers.
The power consumers and the corresponding capacities are listed on the cover
of the fuse box [5]. Spare fuses [6] of 10 and 15 amperes are located next
to the fuse box.
Replace a blown fuse only with an equivalent one. If a new fuse that has just
been set in gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
UNDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR
A FUSE ALLOWED TO BE “REPAIRED”. AN INEXPERT TREATMENT COULD DAM-
AGE THE WHOLE ELECTRICAL INSTALLATION!
The ACC fuse [7] is designed for accessories with a maximum power con-
sumption of 10 amperes. A connector [8] to connect the equipment is pro-
vided under the seat. Ask your authorized KTM workshop for details.
