Smeg A1XCU6 User Manual
Smeg Radio

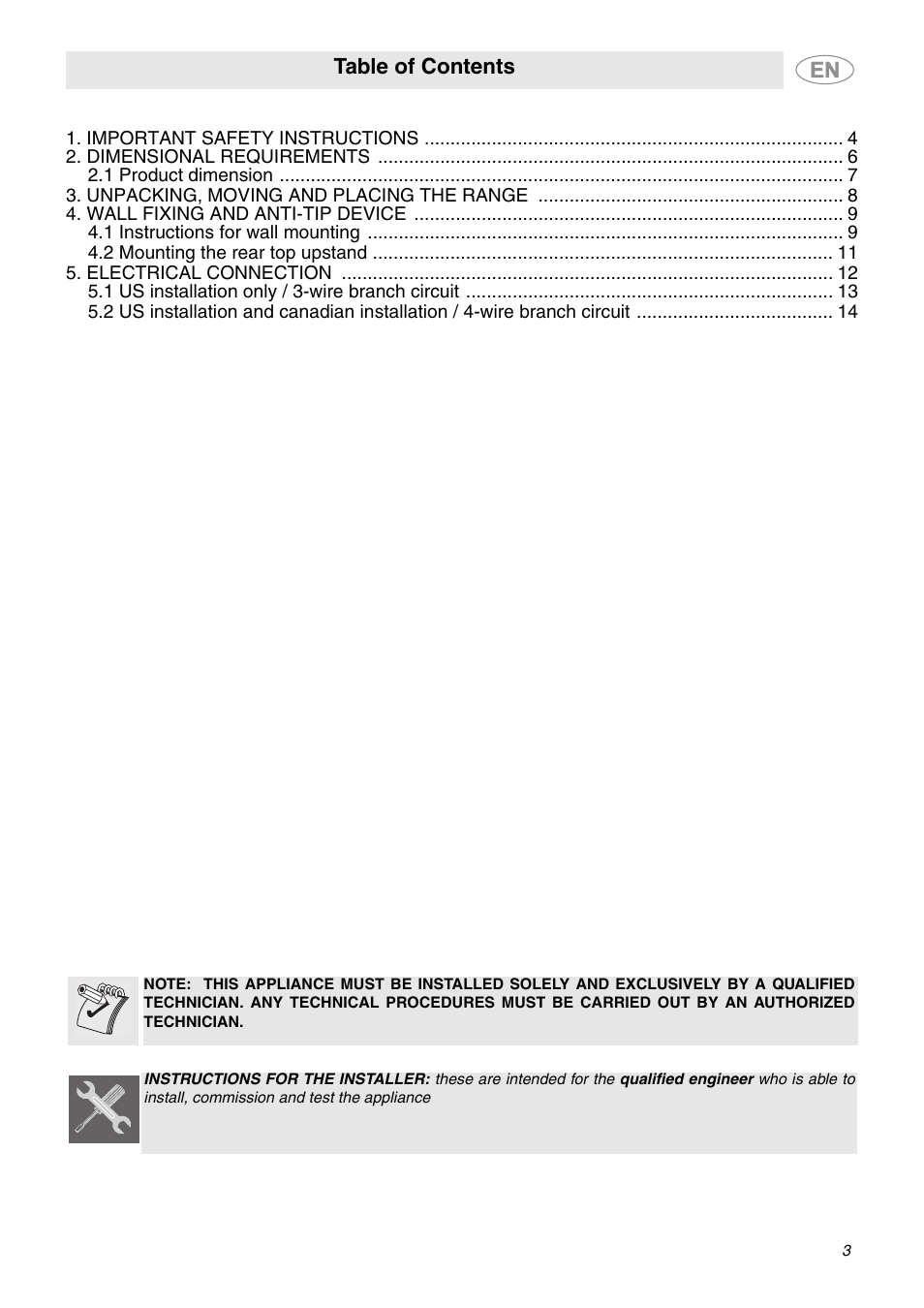

Table of contents
Document Outline
- Important safety instructions
- 1 Installations must be performed by a qulified or licensed contractor, plumber or gas fitter qualified or licensed by the state, province or region where this appliance is being installed.
- 2 Shut-off valve must be “T” handle gas cock.
- 3 Flexible gas connector must not be longer than 36”.
- 1 To contact a qualified electrician to install the appliance
- 2 To ensure that the electrical system is adequate and in conformance with the national ANSI/NFPA 70 ELECTRICAL CODE - LATEST ED...
- 2. DIMENSIONAL REQUIREMENTS
- 1 24” (61 cm) min. when bottom of wood or metal cabinet is protected by not less than ¹ “ (0.64 cm) flame retard millboard cover...
- 2 13” (33 cm) max. upper cabinet depth;
- 3 35- º “ (90 cm) min. cabinet opening widht;
- 4 18” (45.7 cm) upper cabinet to countertop;
- 5 2” (5 cm) min. clearance from the sides of range to side wall or other combustible material;
- 6 Junction box.
- 2.1 Product dimension
- 3. UNPACKING, MOVING AND PLACING THE RANGE
- 4. WALL FIXING AND ANTI-TIP DEVICE
- 4.1 Instructions for wall mounting
- 1 Level the range using the front adjustable leveling legs.
- 2 From the floor, measure the height of the notch found on the bracket. This notch corresponds to the centerline of the holes for the screws that will fasten the brackets to the wall.
- 3 Attach the two anti-tip brackets to the wall using an appropriate fastener (for example, screws appropriate for the type of th...
- 4 Correctly position the range so that the two screws fit the anti-tip brackets on the range perfectly.
- 4.2 Mounting the rear top upstand
- 4.1 Instructions for wall mounting
- 5. Electrical connection
