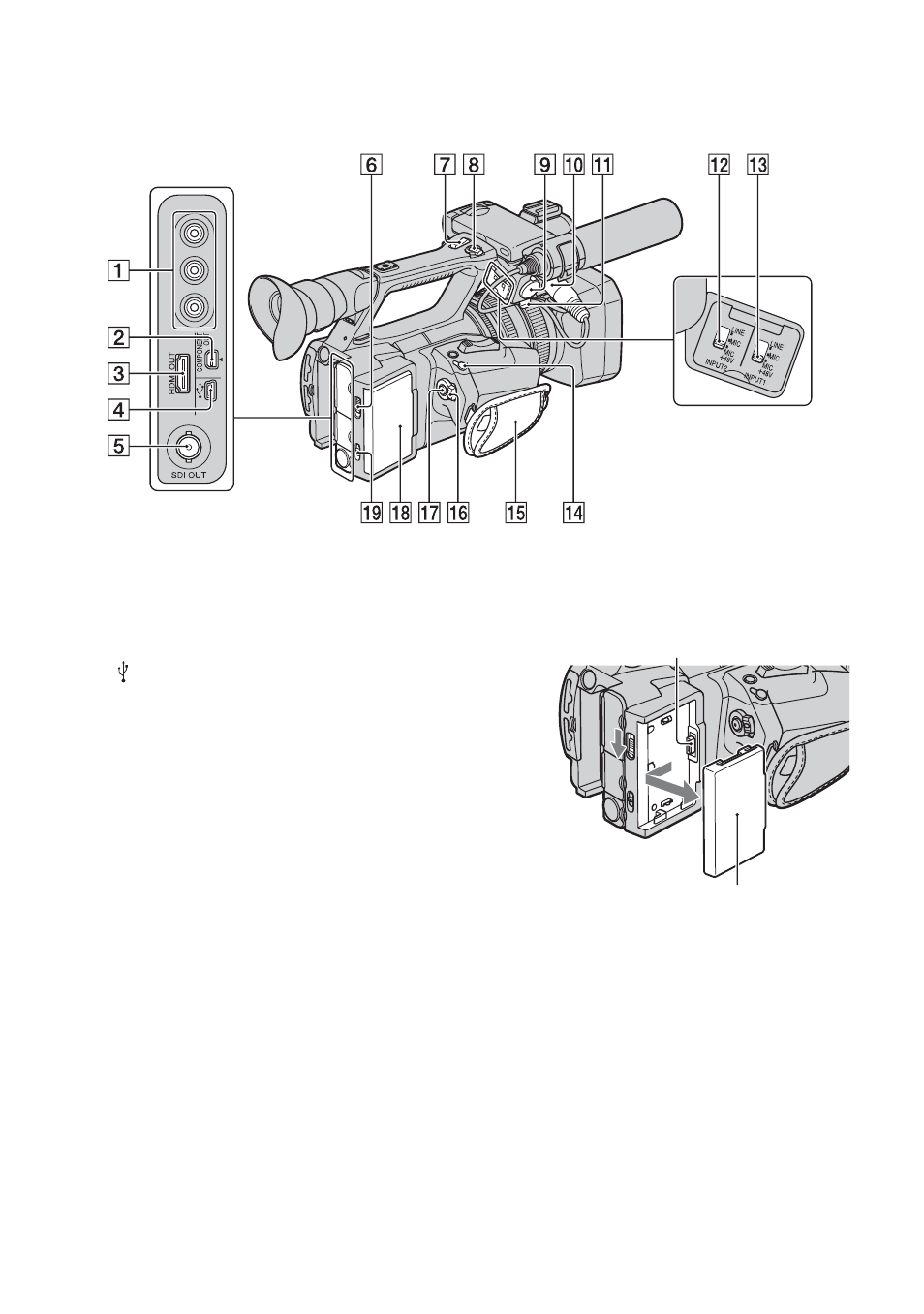

A VIDEO OUT jack/AUDIO OUT jacks
(54)
B COMPONENT OUT jack (54)
C HDMI OUT jack (54)
D USB jack (88)
E SDI OUT jack (54)
F RELEASE lever (20)
G Handle zoom lever (26)
H Handle record button (21)
I INPUT2 jack (10)
J INPUT1 jack (10)
K Cable holder (10)
Provided for securing a microphone
cable, etc.
L INPUT2 switch (39)
M INPUT1 switch (39)
N REMOTE jack
The REMOTE jack is used for
controlling playback, etc. on the video
device and peripherals connected to it.
O Grip belt (14)
P POWER switch (14)
Q Record button (21)
R Flash memory unit mount (20)
For attaching a flash memory unit (sold
separately).
S GPS switch (41) (HXR-NX5E/NX5P)
When it is set to ON, the camcorder
acquires the GPS information (location
and time of recording) and records with
images.
Flash memory unit jack
Flash memory unit jack cover
Identifying parts and controls (Continued)
