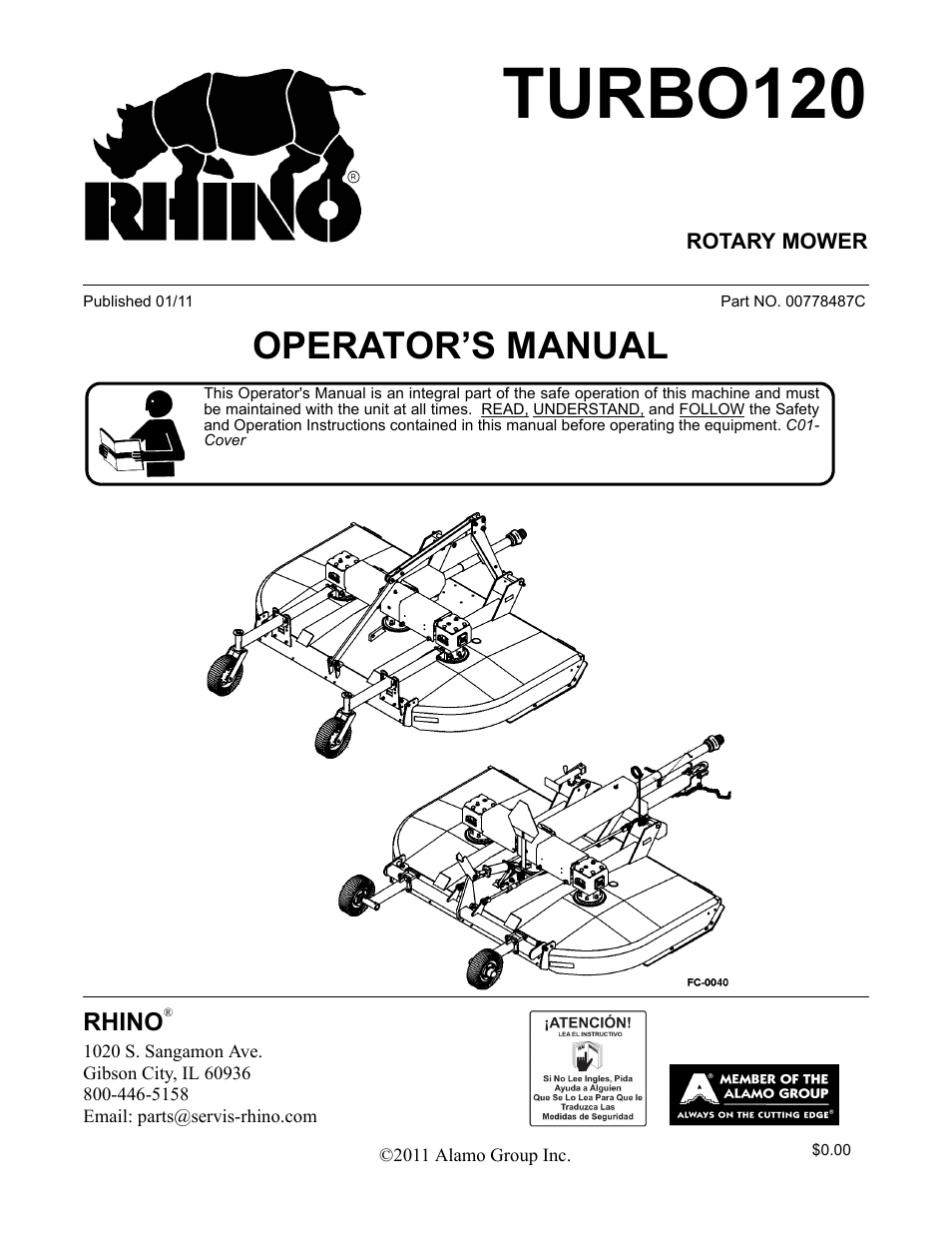

Servis-Rhino TURBO120 User Manual
Turbo120, Operator’s manual
Table of contents
Document Outline
- TURBO120
- OPERATOR’S MANUAL
- To the Owner/Operator/Dealer
- DEALER to CUSTOMER Pre-Delivery/ Operation Instructions
- Table of Contents
- GENERAL SAFETY INSTRUCTIONS AND PRACTICES
- OPERATOR SAFETY
- CRUSHING HAZARDS
- THROWN OBJECTS HAZARDS
- 1. MARK objects that cannot removed.
- 2. AVOID these objects when mowing.
- 1. MAINTAIN MOWER SHIELDING, side skirts, skid shoes, and blades in good operational condition,
- 2. RAISE CUTTING HEIGHT to 6 INCHES minimum,
- 3. INSPECT AREA thoroughly before mowing to REMOVE potential THROWN OBJECT HAZARDS,
- 4. NEVER ALLOW BLADES to CONTACT SOLID OBJECTS like wire, rocks, post, curbs, guardrails, or ground while mowing. PN TO02
- THROWN OBJECTS HAZARDS (CONTINUED)
- RUN OVER HAZARDS
- PTO ENTANGLEMENT HAZARDS
- MOWER BLADE CONTACT HAZARDS
- TRANSPORTING HAZARDS
- Decal Location
- 1. D389 1 DECAL Multi Hazard
- 2. D629 1 INFORMATION Lube Chart
- 3. D388 1 DECAL Driveline Hazards
- 4. 00756004 3 DANGER D/L Shield Missing. Do Not Operate
- 5. 00756005 2** DANGER Rotating D/L Entanglement
- 6. D137 1 INSTRUCT CCW Blade Rotation
- 7. D138 1 INSTRUCT CW Blade Rotation
- 8. D454 1 WARNING Crushing Hazard (Decal under Deck)
- 9. 00771283 3 INSTRUCT 5 Year Gearbox Warranty
- 10. D608 2 WARNING Blade Timing
- 11. 99102 1 LOGO Rhino
- 12. D303 2 LG. NAME Rhino Type (4-3/8 x 16-3/4)
- 13. 00785615 2 LG. NAME TURBO 120
- 14. 00785614 1 SM. NAME TURBO 120
- 15. D302 2 LOGO Rhino Logo (4-7/8 x 6-1/2)
- 16. 03200347 1 REFLECTOR SMV Sign
- 17. 00760657 1 IMPORTANT Rhino Genuine Parts, Rotary Mower
- 18. nfs 1 SER PLT Serial Number Plate
- 19. D401 1 INSTRUCT 1000 RPM
- 20. 1458392 2 REFLECTOR Red Reflectors
- 21. 1458393 2 REFLECTOR Amber Reflectors
- 22. 00776031 1 Canister, Operator’s Manual
- 23. 00778586C 1 Operator’s Manual
- 24. 10058000 3 Bolt
- 25. 00024100 6 Flatwasher
- 26. 02959924 3 Locknut
- 27. 00785538 1 INFORMATION Turbo Dome Deck
- 28. D614 3 DANGER Thrown Object Shield Missing
- 29. D534 2 IMPORTANT Torque Blade Bolt 600 lbs.
- 1. D389 1 DECAL Multi Hazard
- 2. D390 1 DECAL Pull Type Unit Hazards
- 3. D388 1 DECAL Driveline Hazards
- 4. 00756004 3 DANGER D/L Shield Missing. Do Not Operate
- 5. 00756005 2** DANGER Rotating D/L Entanglement
- 6. D137 1 INSTRUCT CCW Blade Rotation
- 7. D138 1 INSTRUCT CW Blade Rotation
- 8. D454 1 WARNING Crushing Hazard (Decal under Deck)
- 9. 00771283 3 INSTRUCT 5 Year Gearbox Warranty
- 10. D608 2 WARNING Blade Timing
- 11. 99102 1 LOGO Rhino
- 12. D303 2 LG. NAME Rhino Type (4-3/8 x 16-3/4)
- 13. 00785615 2 LG. NAME TURBO 120
- 14. 00785514 1 SM. NAME TURBO 120
- 15. D302 2 LOGO Rhino Logo (4-7/8 x 6-1/2)
- 16. 03200347 1 REFLECTOR SMV Sign
- 17. 00760657 1 IMPORTANT Rhino Genuine Parts, Rotary Mower
- 18. nfs 1 SER PLT Serial Number Plate
- 19. D401 1 INSTRUCT 1000 RPM
- 20. 1458392 2 REFLECTOR Red Reflectors
- 21. 1458393 2 REFLECTOR Amber Reflectors
- 22. 00776031 1 Canister, Operator’s Manual
- 23. 00778586C 1 Operator’s Manual
- 24. 10058000 3 Bolt
- 25. 00024100 6 Flatwasher
- 26. 02959924 3 Locknut
- 27. D518 1 WARNING Jack Positioning
- 28. 00785538 1 INFORMATION Turbo Dome Deck
- 29. D614 3 DANGER Thrown Object Shield Missing
- 30. D534 2 IMPORTANT Torque Blade Bolts 600 lbs.
- 31. D629 1 INFORMATION Lube Chart
- SAFETY SECTION
- Decal Description
- KEY OPERATION POINTS
- RHINO LIMITED WARRANTY
- 1. LIMITED WARRANTIES
- 1.01. Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the ...
- 1.02. Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be defective under normal use and service due to defects in material or workmanship.
- 1.03. This limited warranty does not apply to any part of the goods which has been subjected to improper or abnormal use, negligence, alteration, modification, or accident, damaged due to lack of maintenance or use of wrong fuel, oil, or lubricants, ...
- 1.04. Except as provided herein, no employee, agent, Dealer, or other person is authorized to give any warranties of any nature on behalf of Manufacturer.
- 2. REMEDIES AND PROCEDURES.
- 2.01. This limited warranty is not effective unless the Purchaser returns the Registration and Warranty Form to Manufacturer within 30 days of purchase.
- 2.02. Purchaser claims must be made in writing to the Authorized Dealer (“Dealer”) from whom Purchaser purchased the goods or an approved Authorized Dealer (“Dealer”) within 30 days after Purchaser learns of the facts on which the claim is based
- 2.03. Purchaser is responsible for returning the goods in question to the Dealer.
- 2.04. If after examining the goods and/or parts in question, Manufacturer finds them to be defective under normal use and service due to defects in material or workmanship, Manufacturer will:
- 2.05. Purchaser is responsible for any labor charges exceeding a reasonable amount as determined by Manufacturer and for returning the goods to the Dealer, whether or not the claim is approved. Purchaser is responsible for the transportation cost for...
- 3. LIMITATION OF LIABILITY.
- 3.01. MANUFACTURER DISCLAIMS ANY EXPRESS (EXCEPT AS SET FORTH HEREIN) AND IMPLIED WARRANTIES WITH RESPECT TO THE GOODS INCLUDING, BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
- 3.02. MANUFACTURER MAKES NO WARRANTY AS TO THE DESIGN, CAPABILITY, CAPACITY, OR SUITABILITY FOR USE OF THE GOODS.
- 3.03. EXCEPT AS PROVIDED HEREIN, MANUFACTURER SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO PURCHASER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE CAUSED OR ALLEGED TO BE CAUSED DIRECTLY OR INDIRECTLY BY THE GOODS INCLU...
- 3.04. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS WARRANTY OR TRANSACTIONS UNDER THIS WARRANTY MAY BE BROUGHT MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION HAS OCCURRED.
- 4. MISCELLANEOUS.
- 4.01. Proper Venue for any lawsuits arising from or related to this limited warranty shall be only in Guadalupe County, Texas.
- 4.02. Manufacturer may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall be deemed to be a waiver of any other term.
- 4.03. If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the invalidity of such provision shall not invalidate any other provisions herein.
- 4.04. Applicable law may provide rights and benefits to purchaser in addition to those provided herein.
- DEALER SETUP INSTRUCTIONS
- A-FRAME ASSEMBLY-LIFT TYPE
- 1. Insert bushing (8) into lower end of each A-Frame half (1 & 2). Position each A-Frame half inside Main Frame Lug. Install bolt (17) with Flatwasher (14) through bushing (8) in A-Frame half (1 & 2) and hole in inside Main Frame lug. Install locknut(6)
- 2. Install bushing (15) between braces (3) through top rear hole of A-frame and insert bolt (16), flatwasher (14) and locknut (6). Install Driveline Holder Bracket (21) to left A-Frame (2) with bolt (10) and locknut (9).
- 3. Install bushing (11) between A-Frame halves (1 & 2) and insert bolt (13) and locknut (12). Then attach braces (3) and brace (4) by installing bushings (8) through brace (4) and install bolt (7), and locknut (6) through braces (3) and brace (4). Th...
- 4. Install Brace supports (4) to the rear lugs on the Main Frame with pivot pin(22) and retain with bolt (10) and locknut (6). Figure Asm-R-0305
- 1. 1 A-Frame - RH
- 2. 1 A-Frame - LH
- 3. 2 Brace
- 4. 1 Brace
- 5. 2 Hitch Pin
- 6. 1 Nut
- 7. 2 Bolt
- 8. 4 Spacer
- 9. 2 Nut
- 10. 2 Bolt
- 11. 1 Bushing
- 12. 1 Locknut
- 13. 1 Bolt
- 14. 3 Flatwasher
- 15. 1 Spacer
- 16. 1 Bolt
- 17. 2 Bolt
- 18. 3 Clip
- 19. 1 Pin
- 20. 1 Bushing
- 21. 1 Driveline Holder
- 22. 1 Axle Pivot Pin
- TAIL WHEEL ASSEMBLY - LIFT TYPE
- 1. Attach Beam Support Weldments (2) to the Main Frame Assembly with 1/2” x 1-1/2” Bolts (6) & Locknuts(7).
- 2. Slide the Beam Weldment (1) through Bracket (3) and attach to the Mower Lugs with 5/8" x 4- 1/2" Bolt (4) and Locknut (5). Then attach to gearbox with flatwasher (9) and locknut (8).
- 3. Install 1/2” x 1-1/2” Bolts (6) through Beam Support Weldment (2) and Bracket (3). (Install through pair of holes which will give approximate desired cutting height). Install Locknut (7). Figure Asm-R-0307
- TONGUE
- AXLE ASSEMBLY
- AXLE ARMS
- CONTROL RODS
- HYDRAULIC OR MANUAL LIFT
- FRONT AND REAR DEFLECTORS (Standard Equip.) CHAINGUARDS (Optional Equip. at Extra Cost)
- FRONT AND REAR DEFLECTORS (Standard Equip.) CHAINGUARDS (Optional Equip. at Extra Cost)
- DRIVELINE ATTACHMENT
- SHIELD ASSEMBLY - Side Drives - Lift and Pull
- CHECK CHAINS (Extra Equipment) LIFT MODELS
- RHINO TURBO 120 MEDIUM-DUTY ROTARY MOWER
- OPERATION INSTRUCTIONS
- 1. OPERATOR REQUIREMENTS
- 2. TRACTOR REQUIREMENTS
- Tractor Requirements and Capabilities
- 2.1 ROPS and Seat Belt
- 2.2 Tractor Safety Devices
- 2.3 Tractor Horsepower
- 2.4 3-Point Hitch-Lift Type and Semi-Mount Type Mowers
- 2.5 Drawbar-Pull Type Mower
- 2.6 Front End Weight
- 2.7 Power Take Off (PTO)
- 2.8 Tire Spacing
- 3. GETTING ON AND OFF THE TRACTOR
- 4. STARTING THE TRACTOR
- 5. CONNECTING THE MOWER TO THE TRACTOR
- 5.1 Connecting the Mower Lift Type and Semi-Mount Type
- 1. Make sure the tractor is equipped with the correct PTO shaft. Change shafts if needed.
- 2. Shorten or remove the tractor drawbar to avoid interference when raising and lowering the mower.
- 3. Board the tractor and start the engine. Position the tractor to the mower with the 3-point lift arms positioned between the respective set of mower A-frame lift lugs. Note: Set the 3-point lift control to “Position Control” so that the lift ar...
- 4. Turn off the tractor engine, set the parking brake, place the tractor in park, and dismount.
- 5. One lift arm at a time, align arm end hole between the set of holes of A-frame lift lugs. Insert hitch pin through the lug and arm holes and insert retaining pin into hitch pin. Walk around to opposite side and repeat procedure for remaining lift ...
- 6. Lift Mowers-Extend or retract the 3-point top link to align its end hole with the holes of the mower’s top link. Insert the top link hitch pin and insert retaining pin into hitch pin. Semi- Mount Mowers-If hydraulic cylinders are being used to r...
- 7. Adjust any lower link check chains, guide blocks, or sway blocks to prevent the mower from swaying side to side and possible contact with tractor rear tires.
- 5.2 3-Point Quick Hitch
- 5.3 Connecting Mower - Lift Type (Quick Hitch)
- 1. Make certain the implement’s upper and lower hitch pins are secured.
- 2. Lower the tractor’s 3-point lift until the three Quick-Hitch hooks are lower than the implements hitch pins. Carefully back the tractor to align the Quick-Hitch hooks under the implement’s hitch pins.
- 3. Slowly raise the tractor’s 3-point lift until the lower Quick-hitch hooks lock into place over the implement’s 3-point hitch pins.
- 5.4 Connecting the Mower-Pull Type
- 1. Make sure the tractor is equipped with the correct PTO shaft and the drawbar is extended 14” from the PTO shaft end for a 540 RPM mower and 16” for a 1000 RPM unit.
- 2. Block the mower wheels in place and use the attached parking jack to raise or lower the tongue clevis to the height of the tractor drawbar. The parking jack can be rotated 15 degrees in each direction to obtain a near vertical position. Note: Alwa...
- 3. Board the tractor and start the engine. Back the tractor to the mower aligning the drawbar hitch hole with the mower hitch clevis. Turn off the tractor engine, set the parking brake, place the tractor in park, and dismount.
- 4. To attach the mower, place two 1” flatwashers (1) positioned under top lip of tongue clevis and to the top of drawbar. Add additional 1” flatwashers (2) between the bottom of drawbar and bottom lip of clevis to fill open space. Insert a 3/4”...
- 5. Securely attach mower safety chain to tractor drawbar or drawbar support frame.
- 6. Lower the jack until the tongue is completely supported by the drawbar. Remove jack from the tongue and place on storage bracket of mower main frame.
- 7. If using a hydraulic cylinder, connect hydraulic hose ends into tractor hydraulic ports.
- 8. If the mower has been attached to a 3-point hitch drawbar, adjust any tractor equipped lower link check chains, guide blocks, or sway blocks to prevent the hitch and mower from swaying side to side. Note: Never raise the 3-point lift with the mowe...
- 5.5 Safety Tow Chain
- 5.1 Connecting the Mower Lift Type and Semi-Mount Type
- 6. SETTING THE MOWER
- 6.1 Setting Mower Height- Lift Type
- 1. Park the tractor and mower on level ground.
- 2. Using the 3-point hitch control lever, position the front of the mower with its side skids 1” less off the ground than desired cut height. For example, for a 3” cut, position the skids 2” from the ground. Set the 3-point control lever stop a...
- 3. Shut down the tractor and remove the key.
- 4. Level the mower deck front to rear by extending or retracting the 3-point top link.
- 5. Level the mower side to side by manipulating one lower lift arm length. On most tractors, at least one of the lift arms is designed to allow for manipulation of its length. Shortening or extending will allow for deck leveling from side to side.
- 6. Securely block up the mower at this height.
- 7. Remove the bolts securing the tailwheel beam support brackets and allow the tailwheel(s) to rest at ground level. Align beam and positioning bracket holes with closest set of holes in support brackets and reinstall securing the beam(s) in position...
- 8. Extend the tractor’s top 3-point link so that when lifting the mower, the front of the deck will raise 2 to 2½” before the tail wheel(s) leaves the ground. This will allow the mower to follow the contour of uneven terrain.
- 6.2 Setting Mowing Height-Pull Type and Semi-Mount Type Mowers
- 1. Park the tractor and mower on level ground.
- 2. Using the ratchet jack or hydraulic cylinder, position the mower so the skid shoes are 1” less off the ground than the desired final cut height. For example, if a 3” cut is desired, raise or lower the mower until the skid shoes are 2” off th...
- 3. Adjust the mower leveling rod so that the front of the mower is approximately 3/4” lower that the rear.
- 4. If the mower is attached to a 3-point hitch drawbar, adjust any tractor equipped lower link check chains, guide blocks, or sway blocks to prevent the hitch and mower from swaying from side to side. Never raise the 3-point lift with the mower attac...
- 6.3
- 6.4 Setting Deck Pitch
- 6.1 Setting Mower Height- Lift Type
- 7. DRIVELINE ATTACHMENT
- 8. PRE-OPERATION INSPECTION AND SERVICE
- 9. DRIVING THE TRACTOR AND IMPLEMENT
- 9.5 Crossing Ditches and Steep Inclines
- 10. OPERATING THE TRACTOR AND IMPLEMENT
- 10.6 Right of Way (Highway) Mowing
- 1. MAINTAIN MOWER SHIELDING in good operational condition,
- 2. DAILY INSPECT the condition of the Thrown Object Guards, mower Side Skirts, and skid shoes: Replace or repair worn or damaged guards.
- 3. DAILY INSPECT the condition of the Blades and Blade Bolts. Replace any cracked, worn, bent or damage blades. Always replace blade bolts and nuts when replacing blades. Make sure the blade bolts are properly tightened.
- 4. RAISE CUTTING HEIGHT to 6 INCHES minimum.
- 5. INSPECT AREA thoroughly before mowing to REMOVE potential THROWN OBJECT HAZARDS.
- 6. NEVER ALLOW BLADES to CONTACT SOLID OBJECTS like wire, rocks, posts, curbs, guardrails, or ground while mowing.
- 10.7 Shutting Down the Implement
- 11. DISCONNECTING THE MOWER FROM THE TRACTOR
- 12. MOWER STORAGE
- 13. TRANSPORTING THE TRACTOR AND IMPLEMENT
- 13.2 Hauling the Tractor and Implement
- 14. TROUBLE SHOOTING GUIDE
- Problem Possible Cause Remedy
- (Refer to "Maintenance" section).
- (Refer to "Assembly" section)
- (Refer to your tractor
- operator's manual)
- (Refer to "Operation" section)
- RPM too low Use full PTO speed.
- (Refer to your tractor
- operator's manual)
- rear to hold and circulate material
- longer. (Refer to the "Operation Section
- Setting the Mower-Setting Deck
- Height”) Reduce ground speed.
- Setting Deck Pitch”)
- Height”)
- Excessive ground speed Reduce ground speed.
- Conditions too wet. Wait for conditions to dry. Reduce
- ground speed.
- Blade Bolts Working Loose Bolts not tightened. Tighten Bolts to 300 ft./lbs.
- Bolt hole elongated or oversized. Replace Blade Carrier.
- Locknut worn out. Replace Locknut.
- Rough gears. Run in or change Gears.
- Worn Bearing. Replace Bearing.
- Bent Shaft. Replace Oil Seal and Shaft.
- Oil Seal Race rough. Replace Shaft or repair Race.
- Oil Seal installed wrong. Replace Seal.
- Oil Seal not sealing in the housing. Replace Seal or use a sealant on O.D.
- of Seal.
- Oil level too high. Drain oil to proper level.
- Gasket damaged. Replace Gasket.
- Bolts loose. Tighten Bolts.
- Sand hole in casting. Replace castings or gearbox.
- Blades unable to cut that part of ground speed of tractor but keep
- grass pressed down by path of engine running at full PTO wpm.
- tractor tires. Lowering the cutting height may help.
- Dull blades. Sharpen or replace blades.
- Height of cutter lower at rear or See Cutting Height Instructions.
- front.
- Improper type lubricant. Replace with proper lubricant.
- Excessive trash build-up around Remove trash.
- gearbox.
- Bearing or gears set up improperly. Consult your Dealer.
- Excessively 540 RPM.
- Heavy Material. Reduce ground speed. Raise cutting
- height.
- Not using proper pin. Replace only with recommended shear
- pin.
- PTO engaged at high engine RPM Idle engine to engage PTO
- Cutting in rocky conditions Increase cutting height.
- Blade carrier RPM too high. Check gearbox ratios.
- Blades not properly heat treated. Consult your Dealer.
- Blades not properly heat treated. Consult your Dealer.
- HAZARDS WITH MAINTENANCE OF IMPLEMENT
- Lubrication
- GEARBOX
- TAIL WHEEL ASSEMBLY
- Problem Possible Cause Remedy
- DRIVELINES
- MAIN CV DRIVELINE SAFETY SHIELD
- BLADE SERVICING
- BLADE SHARPENING
- BLADE REMOVAL
- Blade Bolt Inspection
- BLADE CARRIER REMOVAL
- BLADE CARRIER INSPECTION
- BLADE TIMING AND ROTATION
- BLADE TIMING PROCEDURE
- 1. Raise the mower to minimum height to allow sufficient clearance between the mower deck and ground to visually inspect blade carriers.
- 2. Completely shut down the tractor and secure the tractor in position by placing the tractor in park and setting the parking brake. Securely block the mower at this height.
- 3. On a side gearbox, remove connecting coupler.
- 4. Manually rotate carriers until blades are positioned at near 90 degree angle from one another. See Fig. Mnt-R-0102
- 5. Replace connecting coupler.
- 6. Manually spin carriers a complete rotation to ensure blades do not collide with one another.
- SLIP CLUTCH
- SEASONAL CLUTCH MAINTENANCE
- 1. Loosen nuts (Figure Mnt-R-0251) on springs until the springs can freely rotate, yet remain secure on bolts.
- 2. Attach mower to tractor and start the tractor. Set the engine speed at 1200 RPM.
- 3. Engage the PTO (approximately one second) and then quickly disengage it. The friction lining plates shoulder break loose.
- 4. Turn tractor off and tighten the nuts on the springs to their original position of 1-9/16” compressed spring length.
- SEASONAL CLUTCH MAINTENANCE
- STORAGE
- 1. Thoroughly clean the cutter.
- 2. Lubricate the cutter as covered in Maintenance Section.
- 3. Tighten all bolts and pins to the recommended torque.
- 4. Check the cutter for worn or damaged parts. Make replacements immediately.
- 5. Place driveline in storage position resting on bracket.
- 6. Store the cutter in a clean, dry place with the cutter housing resting on blocks.
- 7. Use spray touch-up enamel where necessary to prevent rust and maintain the appearance of the cutter.
- PROPER TORQUE FOR FASTENERS
