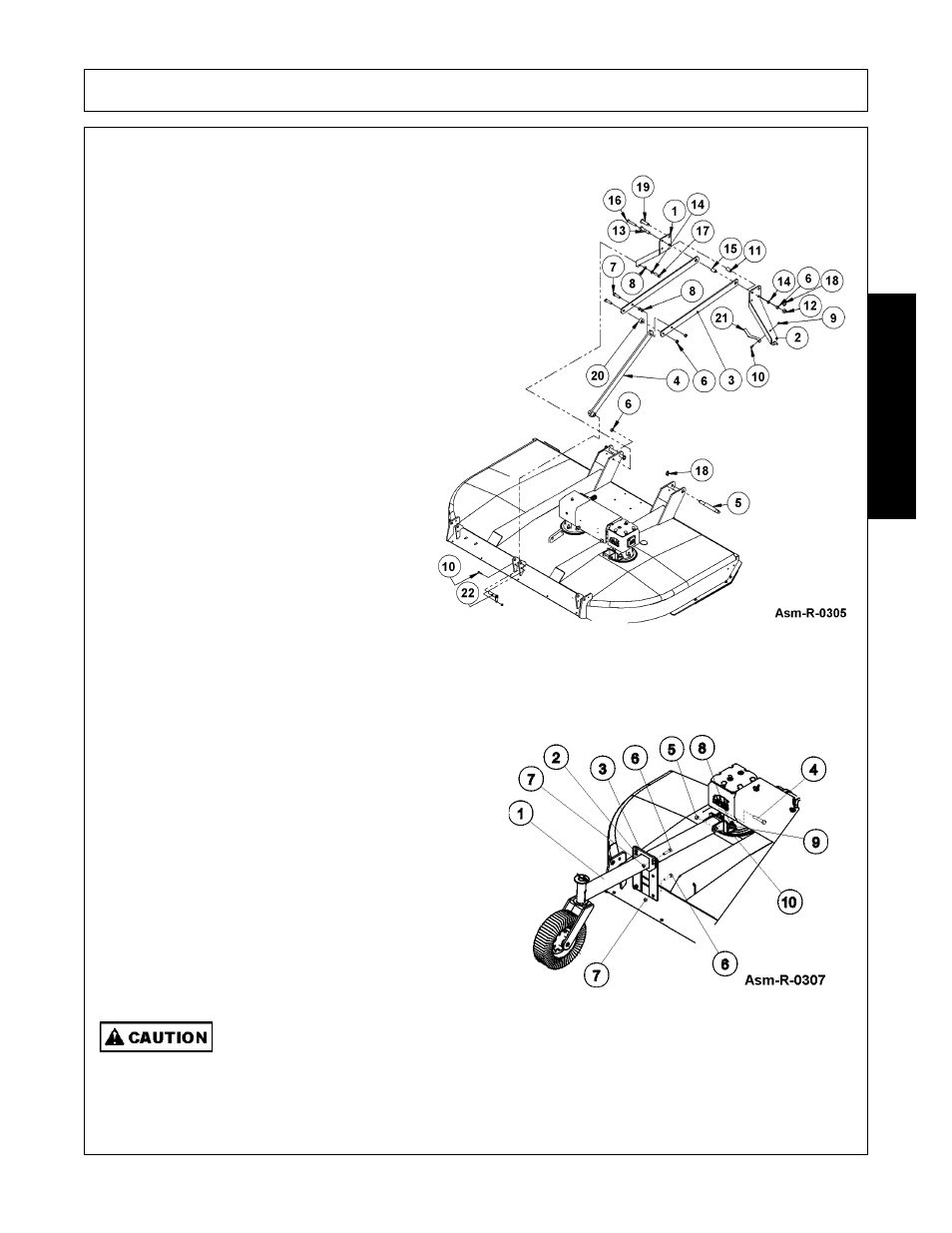

ASSEMBLY
Turbo120 01/11
Assembly Section 3-3
© 2011 Alamo Group Inc.
ASSEMBL
Y
ITEM
QTY
DESCRIPTION
1.
1
A-Frame - RH
2.
1
A-Frame - LH
3.
2
Brace
4.
1
Brace
5.
2
Hitch Pin
6.
1
Nut
7.
2
Bolt
8.
4
Spacer
9.
2
Nut
10.
2
Bolt
11.
1
Bushing
12.
1
Locknut
13.
1
Bolt
14.
3
Flatwasher
15.
1
Spacer
16.
1
Bolt
17.
2
Bolt
18.
3
Clip
19.
1
Pin
20.
1
Bushing
21.
1
Driveline Holder
22.
1
Axle Pivot Pin
TAIL WHEEL ASSEMBLY - LIFT TYPE
1. Attach Beam Support Weldments (2) to the
Main Frame Assembly with 1/2” x 1-1/2” Bolts
(6) & Locknuts(7).
2. Slide the Beam Weldment (1) through Bracket
(3) and attach to the Mower Lugs with 5/8" x 4-
1/2" Bolt (4) and Locknut (5). Then attach to
gearbox with flatwasher (9) and locknut (8).
3. Install 1/2” x 1-1/2” Bolts (6) through Beam
Support Weldment (2) and Bracket (3). (Install
through pair of holes which will give
approximate desired cutting height). Install
Locknut (7). Figure Asm-R-0307
‘
The Components of these machines are quite heavy. Block all components up securely
before working under or putting extremities under such parts.
