ASSEMBLY

Turbo120 01/11

Assembly Section 3-6

ASSEMBL

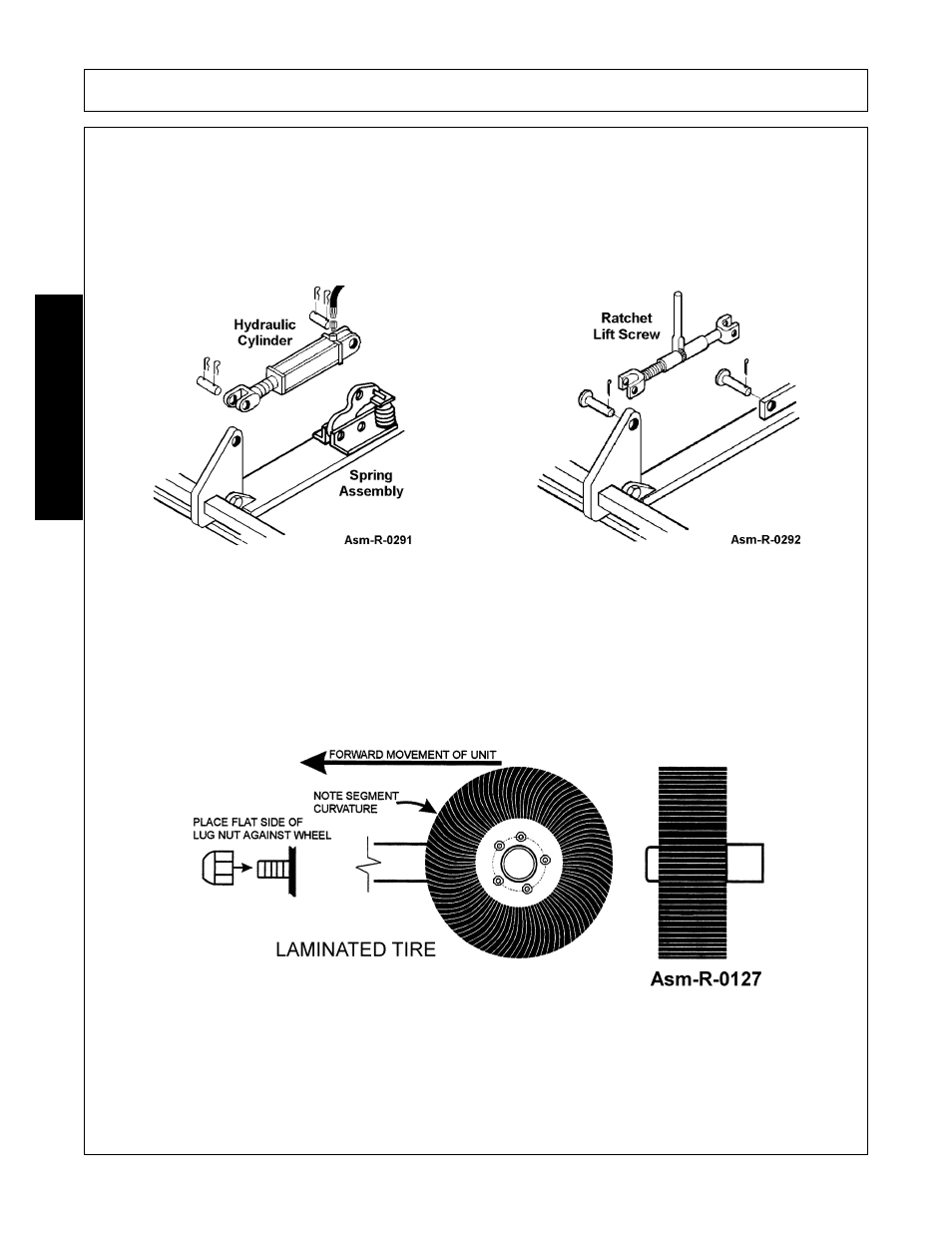

HYDRAULIC OR MANUAL LIFT

Attach the Spring Assembly option (Asm-R-0291) to the lug on the mower deck behind the Center Gearbox.
Retain using pin and cotter pin. Install the Hydraulic Cylinder (Asm-R-0291) or the manual Ratchet Lift Screw
(Asm-R-0292) 1"x2 3/4 between the Axle Center Lug and the Lug directly behind the Center Gearbox. Tighten
all Bolts securely.

WHEELS

Install the Wheels on the Wheel Hubs.

Note: If Laminated Tires are used, place the flat side of the Lug Nut against the Wheel.

Note: the direction of travel and curvature of rubber segments in tire and install as shown in FIGURE Asm-R-
0127
