Specifications
66

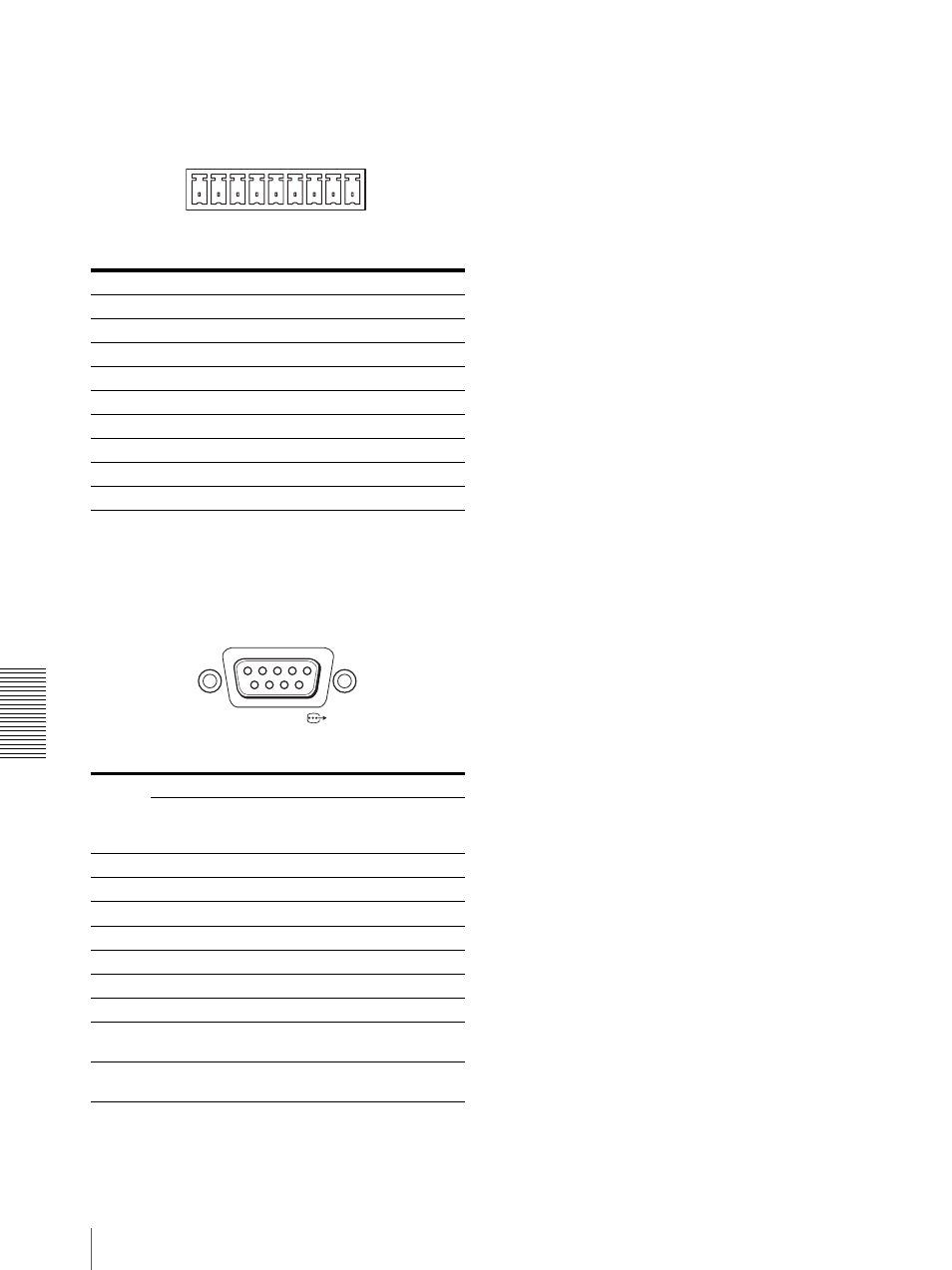

VISCA RS-422 connector (connector plug,
9-pin)
BRBK-301 Analog RGB Component Card
(optional)
Analog video output connector (D-sub 9-pin)
Pin No. Function
1 RXD OUT-
2 RXD OUT+
3 TXD OUT-
4 TXD OUT+
5 GND
6 RXD IN-
7 RXD IN+
8 TXD IN-
9 TXD IN+
Pin No. Function
At RGB/
VBS
setting At RGB/
Y/C
setting At YCrCb/
VBS
setting At YCrCb/
Y/C
setting
1 RGB GND RGB GND RGB GND RGB GND
2 RGB GND RGB GND RGB GND RGB GND
3 R R Cr Cr
4 G G Y Y
5 B B Cb Cb
6 Composite Y Composite Y
7 SYNC SYNC SYNC SYNC
8 SYNC
GND SYNC
GND SYNC
GND SYNC
GND
9 No
Connection C No
Connection C
VISCA RS-422
1 2 3 4 5 6 7 8 9
RGB/SYNC
5 4 3 2 1
9 8 7 6
