-14-
N(/(+Fne\ijDXelXcD]^%('&'/"
J<
K
L
G
KfXjj\dYc\k_\af`ek\i#[fk_\j\jk\gj1
(% DISCONNECT JOINTER FROM POWER SOURCE!
)% Use two of the included cap screws and lock washers
to attach the fence support to the jointer bed, as
shown in
=`^li\12.
8jj\dYcp
*% Insert the locking plate assembly into the fence
support, positioning it so the two pins are against
the bottom edge of the fence support, as shown in
=`^li\13.
+% Secure the locking plate in position with the fence
sliding handle, as shown in =`^li\14.

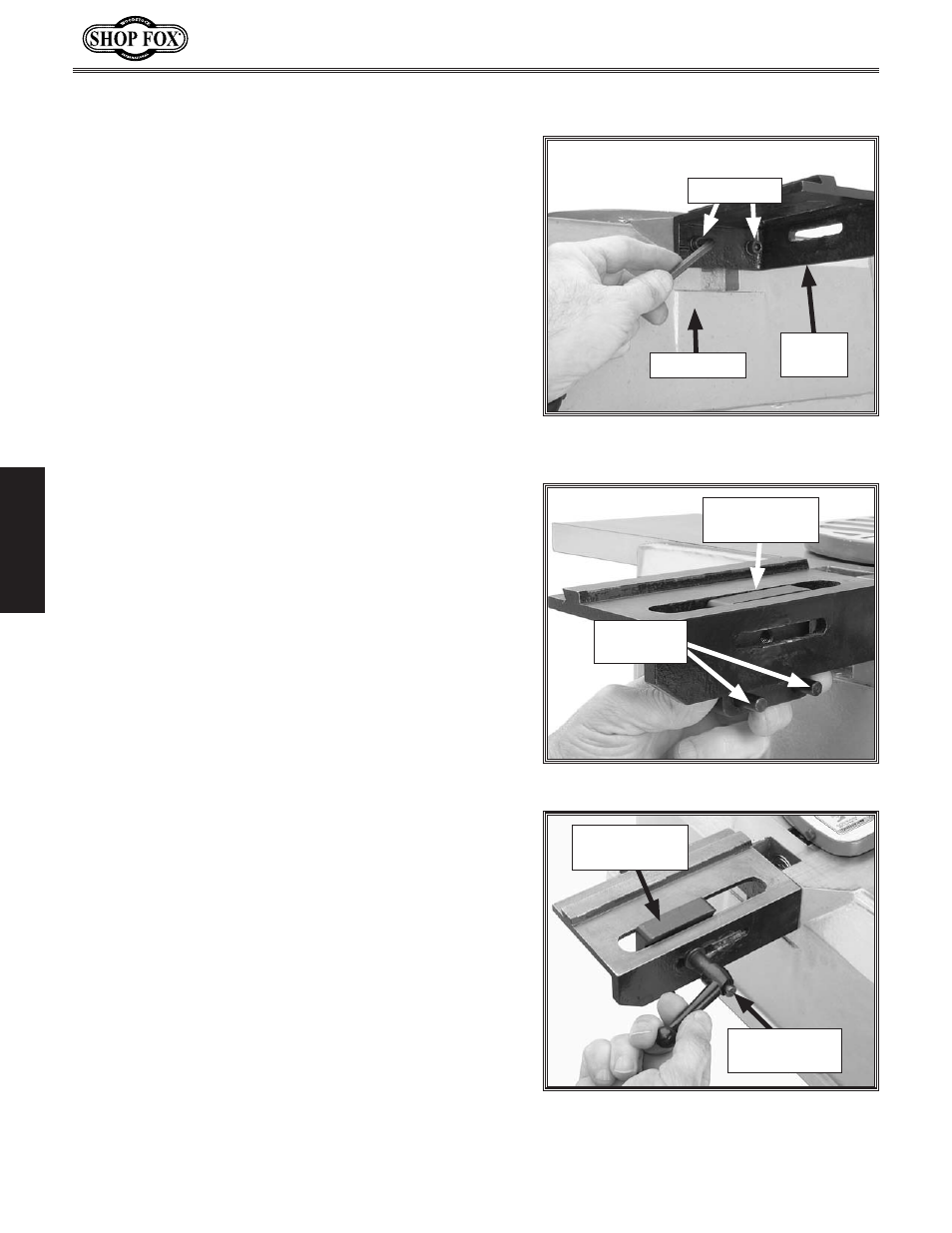

=`^li\12. Attaching the fence support to
the bed assembly.
Cap Screws
Fence
Support Jointer Bed
=`^li\13. Inserting the locking plate.
Locking
Plate Pins
Locking Plate
Assembly
=`^li\14. Securing the locking plate
assembly with the fence sliding handle.
Locking Plate
Assembly
Fence Sliding
Handle
