Instructions for the installer
12
4.2 Burner and nozzle characteristics table
Burner
LPG ( PROPANE ) – 2.75 KPa
Nominal gas Turn-down gas Injector
consumption consumption (mm)
(MJ/h) (MJ/h)
Auxiliary 3.9 1.5 0,54
Semi rapid 6.3 1.5 0,68
Rapid 10 2.7 0,88
WOK 12.8 5.4 1,00
Burner
NG – 1.0 KPa
Nominal gas Turn-down gas Injector
consumption consumption (mm)
(MJ/h) (MJ/h)
Auxiliary 3.9 1.5 0,90
Semi rapid 7 1.5 1,20
Rapid 12 2.7 1,55
WOK 15 5.4 1,75

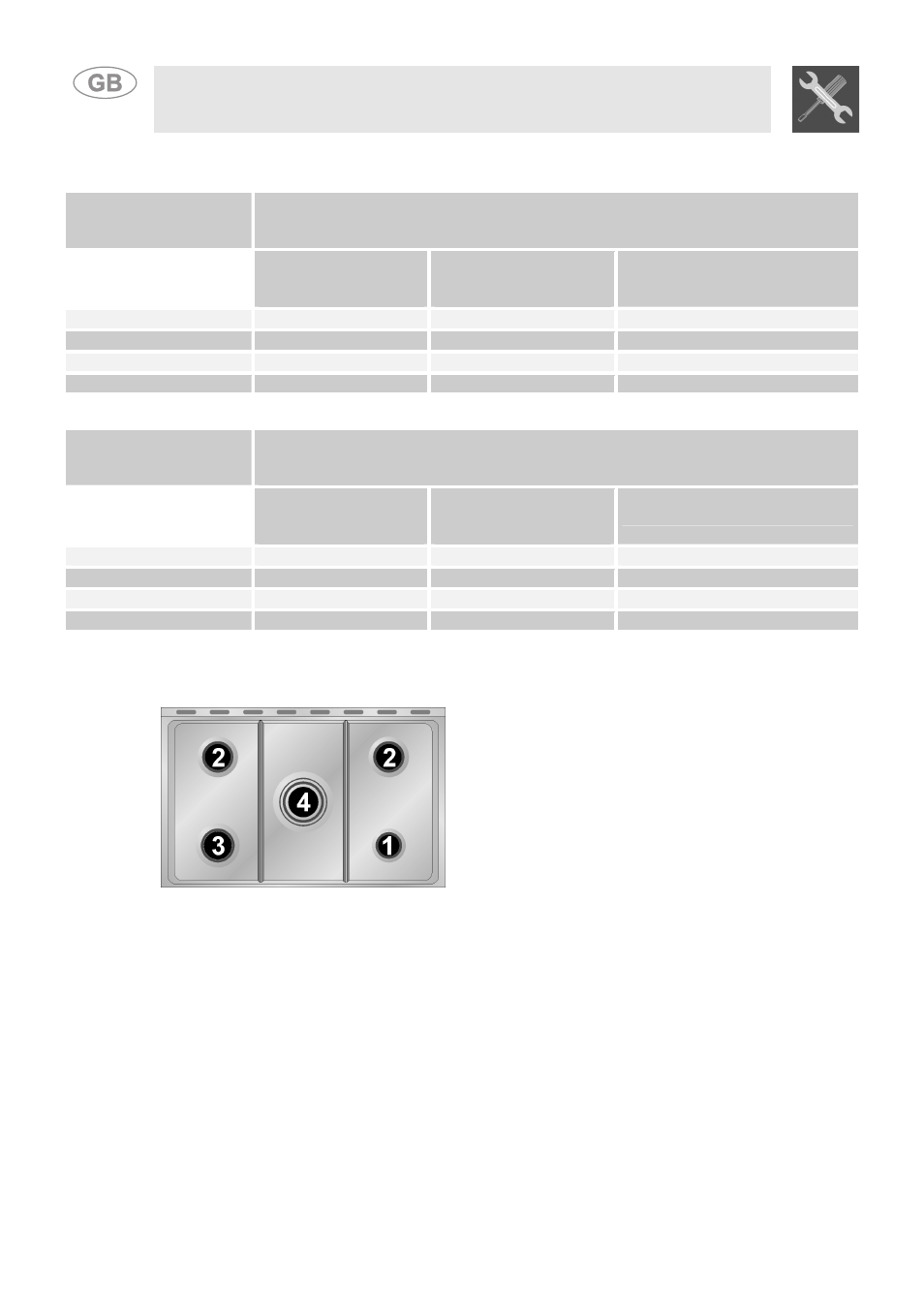

4.3 Burner arrangement on the hob
BURNERS
1
Auxiliary
2 Semi rapid
3 Rapid
4
WOK
