14
MVDS X-1 User's Guide

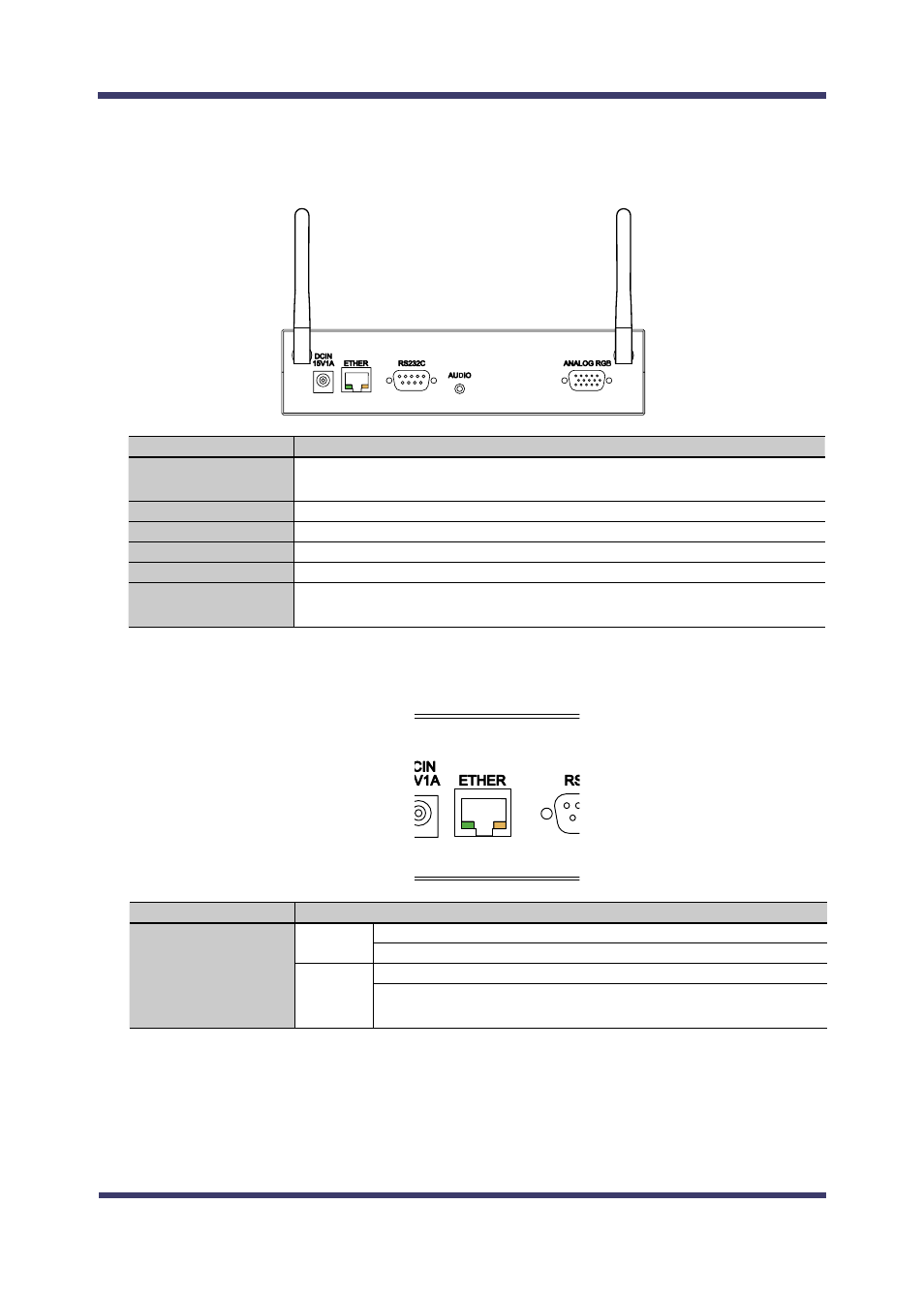

Back
Both Transmitter and Receiver
Part
Description
DCIN 15V1A
AC connector (15V 1A)
* In case of X-1ER, AC power can be supplied via internal DC connector.
ETHER
Ethernet interface (RJ45)
RS232C
Serial interface (9pin Male)
AUDIO
Audio interface (3.5mm mini)
ANALOG RGB
RGB interface (D-Sub15pin)
Antenna
SMA Connector
(Connect the antenna to either or both of the connectors.)
Ethernet LED
Description
Backside
(Ethernet Connector)
Green
OFF: Not connected to a wired LAN (Not linked)
ON: Connected to a wired LAN (Linked)
Orange
Blink: Blink when receiving a packet via wired or wireless LAN.
Flash: Data error in a configuration area
ROM/RAM check error
LED (both Transmitter and Receiver)
