Instructions for the user

3. DESCRIPTION OF CONTROLS

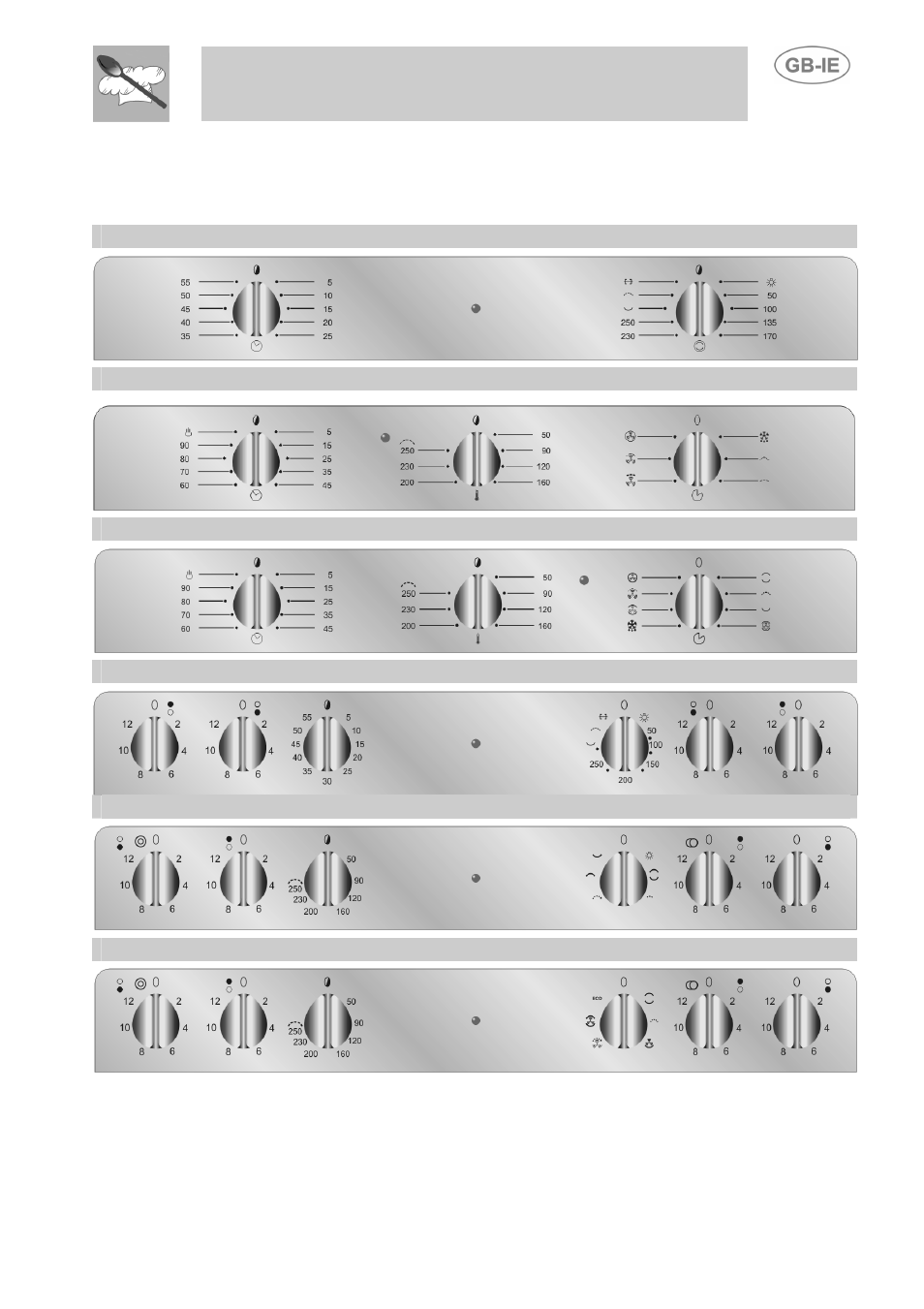

3.1 Front control panel

All the oven controls are grouped together on the front panel.

STATIC MODEL

6- FUNCTION MODEL

8- FUNCTION MODEL

STATIC MODEL + HOB CONTROLS

5-FUNCTION MODEL + HOB CONTROLS

6-FUNCTION MODEL + HOB CONTROLS

33
