Product overview
11

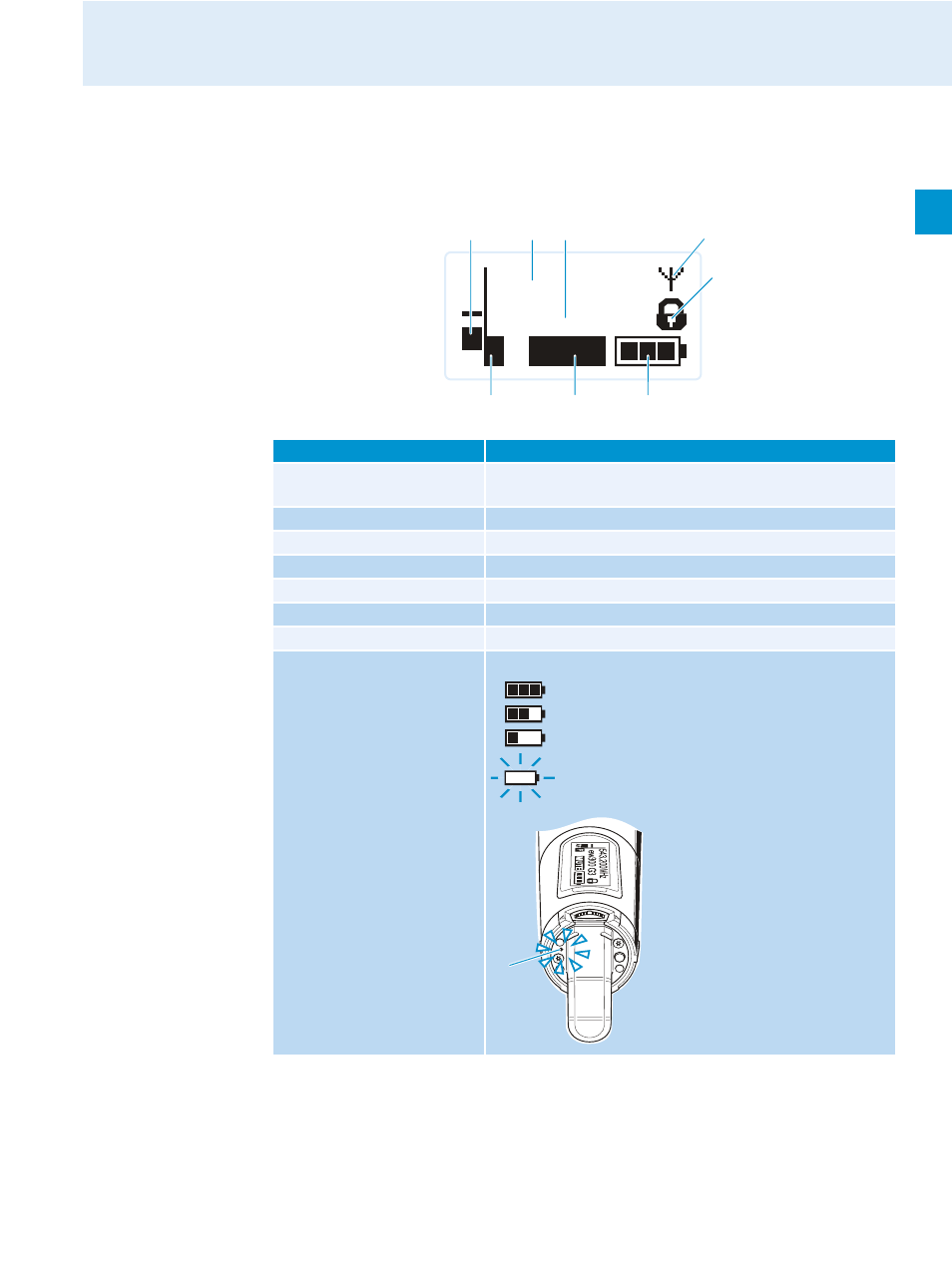

Overview of the displays of the SKM 300 radio microphone
After switch-on, the radio microphone displays the standard display “ Frequency/Name ”.
For further illustrations and examples of the different standard displays, refer to page 25.
The display backlighting is automatically reduced after approx. 20 seconds.
Display Meaning
ቢ
Audio level “ AF ” Modulation of the radio microphone with peak hold
function
ባ
Frequency Current transmission frequency
ቤ
Name Freely selectable name of the radio microphone
ብ
Transmission icon RF signal is being transmitted
ቦ
Lock mode icon Lock mode is activated
ቧ
“ P ” (Pilot) Pilot tone transmission is activated
ቨ
“ MUTE ” Audio signal is muted
ቩ
Battery status Charge status:
MHz 543.200
ew300 G3
MUTE P
AF
ባ ቤ ቢ
ቦ
ብ
ቩ ቨ ቧ
approx. 100%
approx. 70%
approx. 30%
Charge status is critical,
the red
LOW BATT LED
µ
is flashing:
µ
