Instructions for the installer
3.2 Burner and nozzle characteristics table
Burner
Rated
heating
capacity
(kW)
LPG
–
G30/G31
28/37
mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary
1.05
50
30
360
76
75
Semi-rapid
1.8
65
33
450
131
129
Rapid
3
85
45
750
218
215
Triple crown
3.3
91
68
1600
240
236
Fish pan
1.9
68
45
800
138
136
Burner
Rated heating
capacity
(kW)
NATURAL GAS –
G20
20
mbar
Nozzle diameter
1/100 mm
Reduced Flowrate
(W)
Auxiliary
1.05
72
360
Semi-rapid
1.8
97
450
Rapid
3
115
750
Triple crown
3.5
133
1600
Fish pan
1.9
94
800

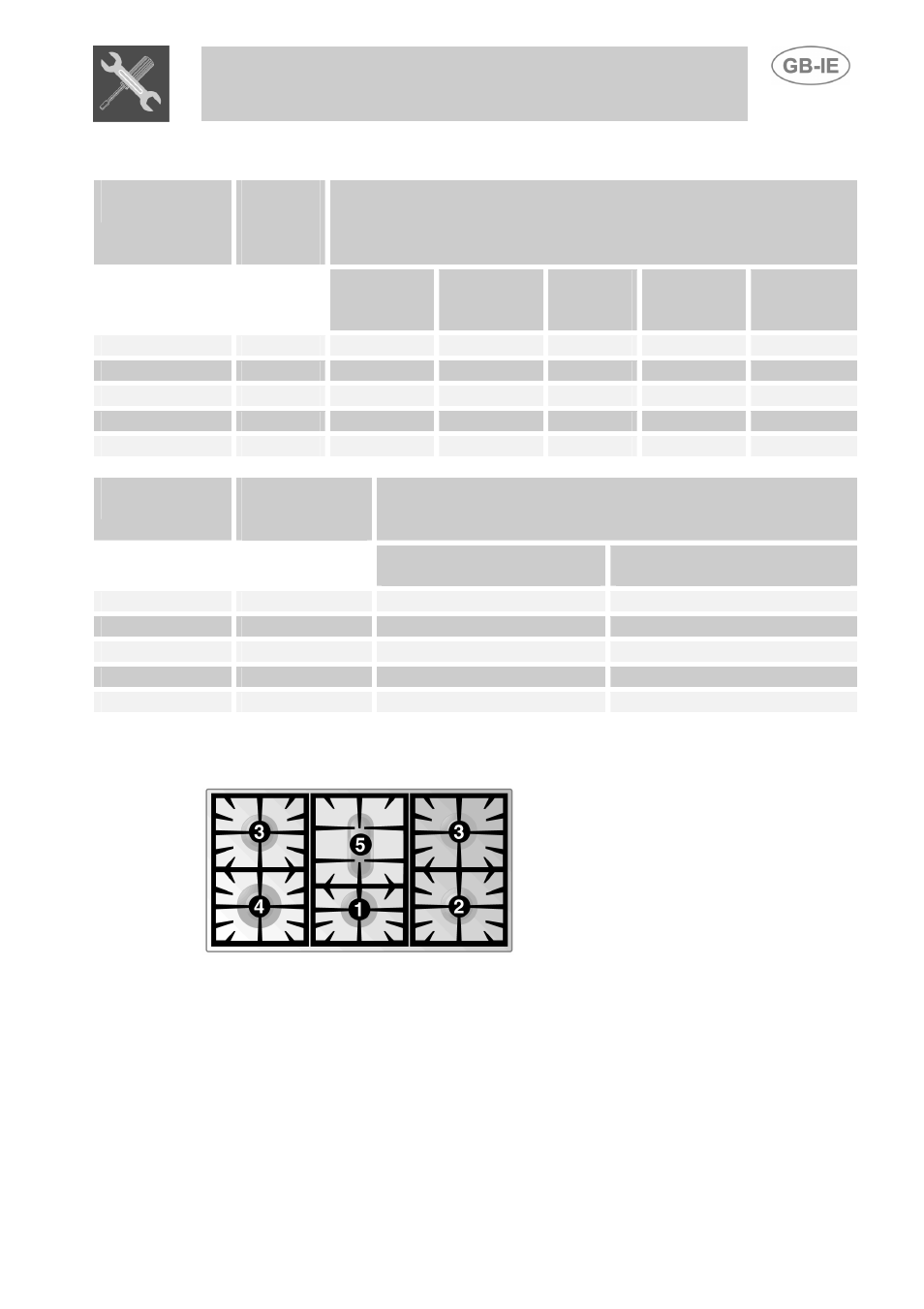

3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi rapid
3
Rapid
4
Ultra rapid
5
Fish pan
