MC50 Integrator Guide 3-14
Universal Battery Charger (UBC) Adapter
This section describes how to use the UBC adapter to charge a spare battery.
Use the UBC with a power supply as a standalone spare battery charger, or with the four station UBC2000 to simultaneously charge
up to four spare batteries. For additional information about the UBC2000, see the UBC 2000 Universal Battery Charger Product Guide
(p/n 70-33188-xx).
Battery Insertion and Removal
Insert the battery into the battery well with the charging contacts on the battery aligning with the charging pins on the adapter, and
gently press down on the battery to ensure proper contact.
To remove the battery, press the battery release and lift battery out of the well.

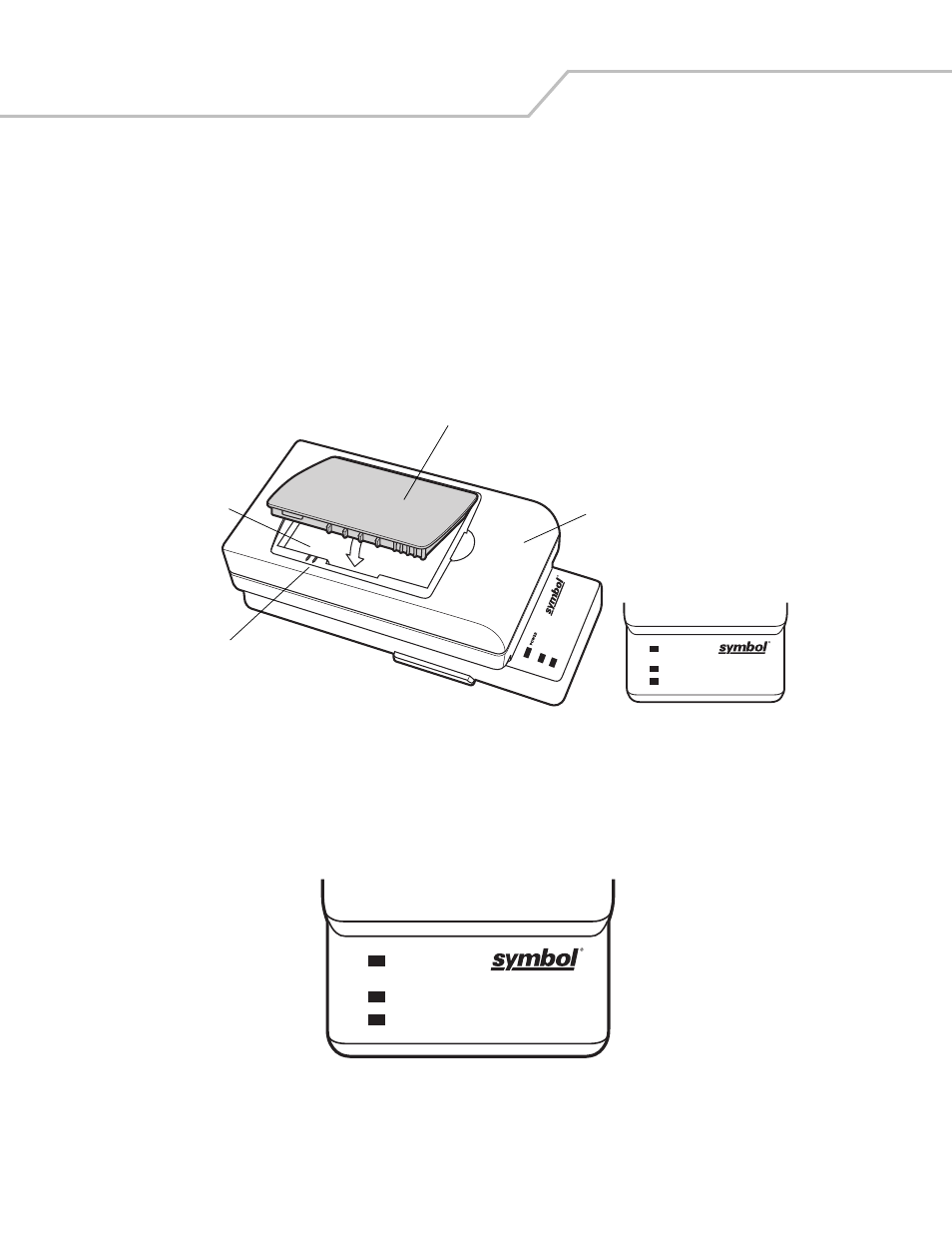

Figure 3-13. UBC Adapter
Battery Charging Indicators
To charge a spare battery using the UBC adapter, insert the spare battery. The spare battery begins charging.
The UBC’s charge LEDs show the status of the battery charging in the adapter. Table 3-3 shows battery charging status indications.
The battery usually charges in four hours.
Figure 3-14. UBC Adapter LEDs
READ
Y
CHARGING
or
ST
ANDBY
or
F A UL
T
(Gr
een)
(Flashing Y
ello
w)
(Solid Y
ello
w)
(Flashing Y
ello
w)
POWER
READY
CHARGING or STANDBY or FAULT
(Green)
(Flashing Yellow) (Solid Yellow) (Flashing Yellow)
UBC Adapter
Battery Release
Battery
Battery Well
POWER
READY
CHARGING or STANDBY or FAULT
(Green)
(Flashing Yellow) (Solid Yellow) (Flashing Yellow)
