Four Slot Spare Battery Charger
This section describes how to use the Four Slot Spare Battery Charger to charge up to four MC50 spare batteries.
Spare Battery Charging
1. Connect the charger to a power source.
2. Insert the spare battery into a spare battery charging well and gently press down on the battery to ensure proper contact.

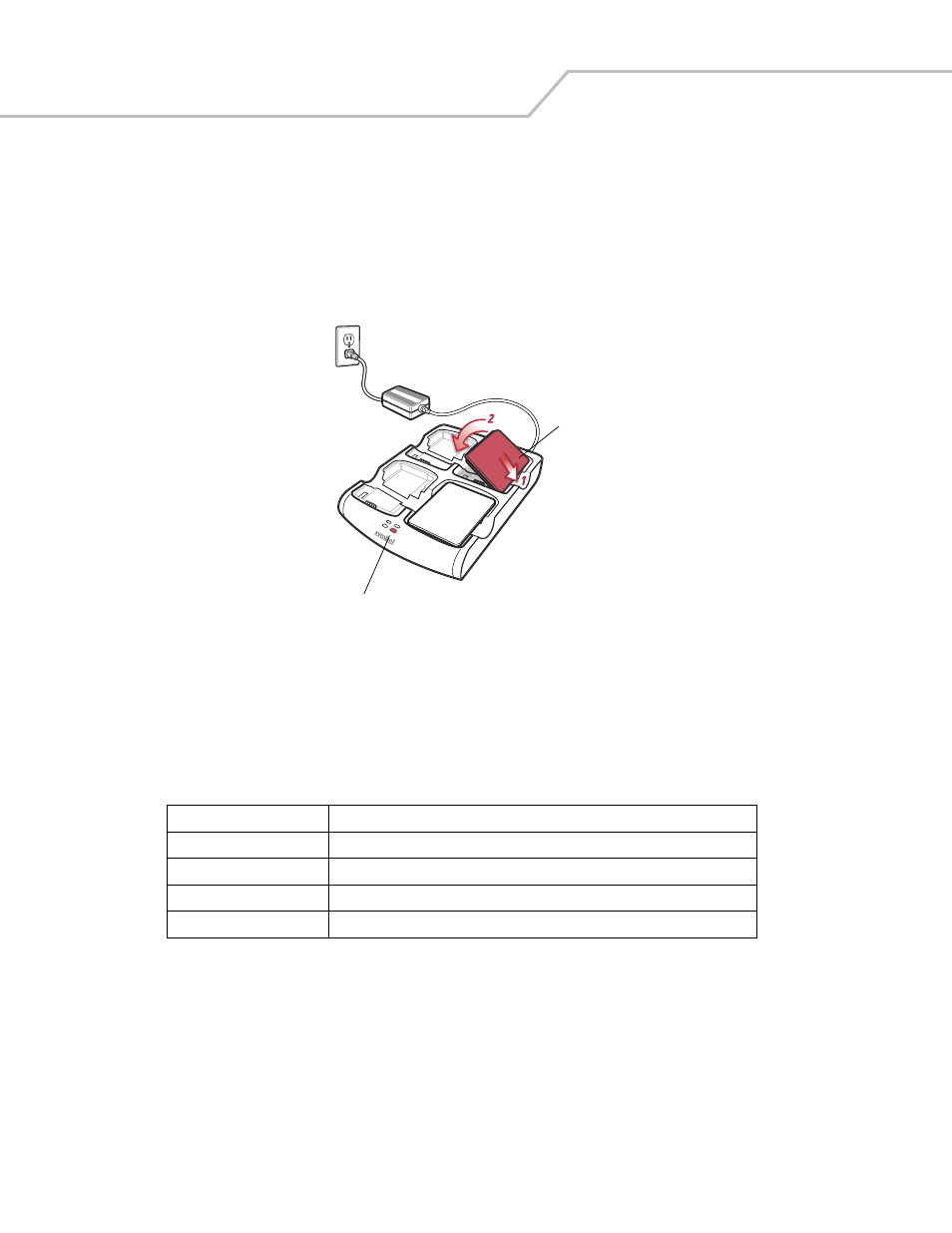

Figure 3-6. Four Slot Spare Battery Charger
Battery Charging Indicators
An amber LED is provided for each battery charging well. See Table 3-2 for charging status indications. The battery usually charges
in less than four hours.
Table 3-2. Spare Battery LED Charging Indicators
LED Indication
Off No spare battery in slot; spare battery not placed correctly; cradle is not powered.
Fast Blinking Amber Error in charging; check placement of spare battery.
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
Spare Battery
Charging LEDs (4)
Spare Battery
