Symbol Technologies MC50 - Manual (Page 65)

Accessories 3-11
Cable Adapter Module
This section describes how to and use the snap-on CAM with the mobile computer. The CAM snaps on to the bottom of the mobile
computer and can be easily removed when not in use.
Figure 3-9. Cable Adapter Module
When attached to the mobile computer, the CAM:
• Provides power for operating the mobile computer, with the appropriate power connection.
• Provides USB connection through the USB pass-through port for communication with a USB device, such as a host computer.
For communication setup procedures, refer to the MC50 Integrator Guide.
• Charges the mobile computer’s battery, when used with the appropriate power supply.
Attaching and Removing
To attach, slide the CAM onto the bottom of the mobile computer, until it snaps into place.

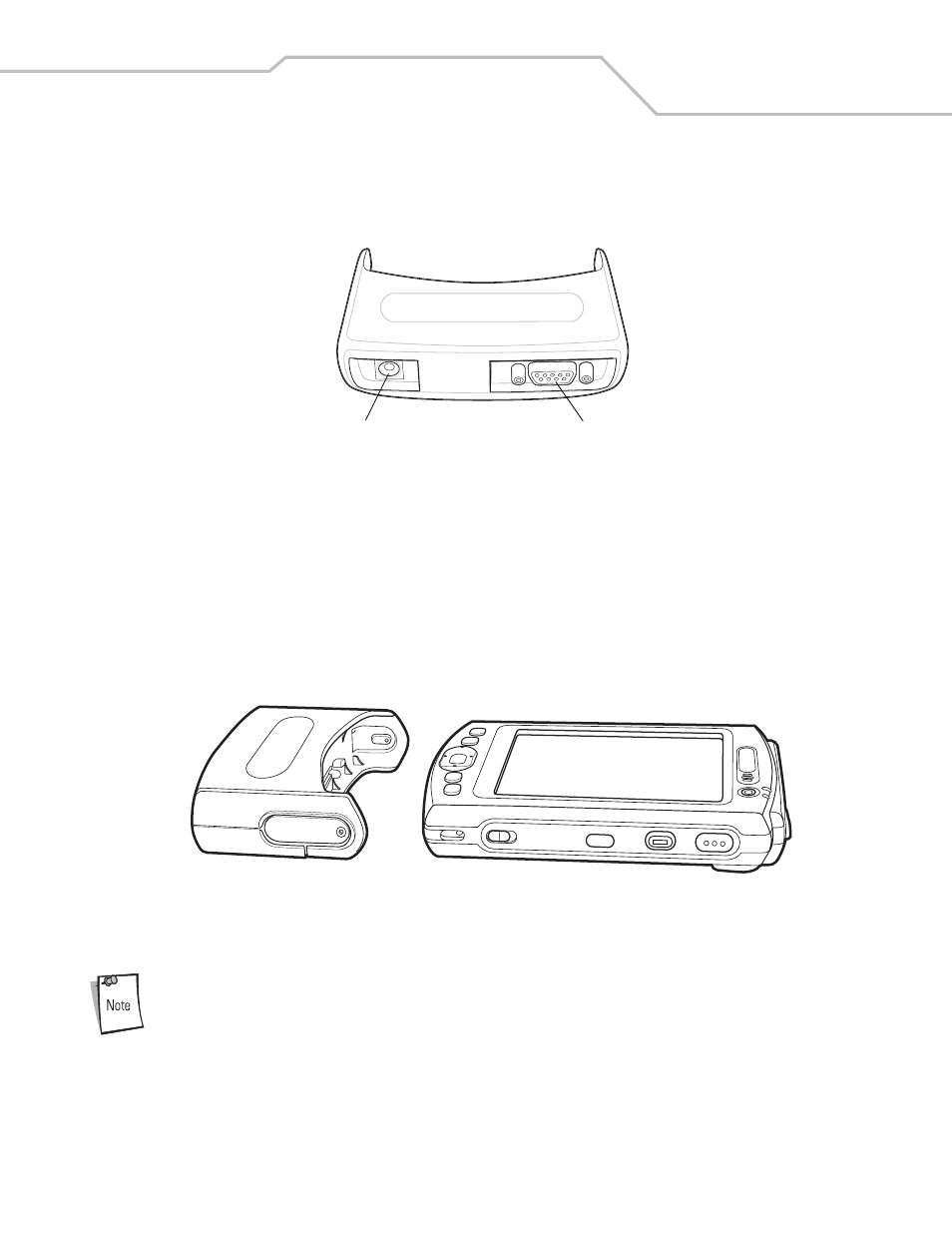

Figure 3-10. CAM Installation
To remove the CAM pull the CAM from the mobile computer.
Remove the CAM from the bottom of the mobile computer before using a cradle for charging and
communication.
Power Port Communications Port
