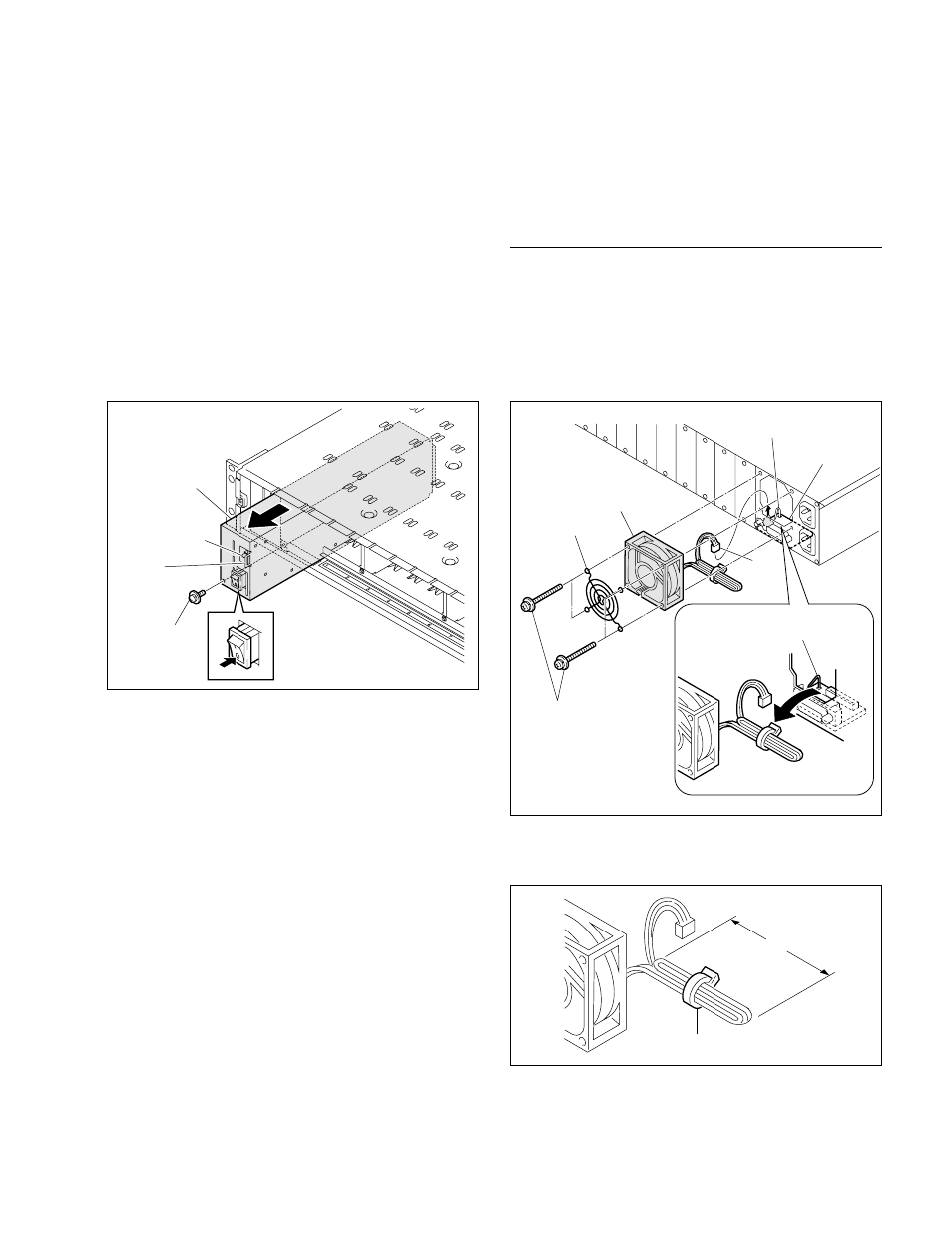

1-6. Replacing the Power Supply Unit
1-7. Replacing the Cooling Fan
Coating lead pin
DUS-213 board
Fan
Fan guard
CN2
Coating lead pin
PSW 3
x
35
Clamper
50 mm
Status indicator
PSW 3
x
6
Power supply unit
Handle
5.
Install the new power supply unit in the reverse order
of steps 1 to 3.
n
Make sure that the status indicator on the front panel
lights in green when the power is turned on.
5.
Connect the harness of the fan to the connector CN2.
6.
Clamp the harness with the coating lead pin.
7.
Secure the fan guard and fan with the four screws.
1-6. Replacing the Power Supply Unit
c
Turn off the power of the power supply unit required
replacement and unplug the power plug from the outlet
before starting the replacement.
1.
Remove the front panel. (Refer to Section 1-2.)
2.
Remove one screw fixing the power supply unit.
3.
Pull out the power supply unit from the PFV-L10 with
its front handle.
4.
Set the power switch of a new power supply unit to the
“O” (OFF) position.
1-7. Replacing the Cooling Fan
c
Turn off the power of both power supply units and unplug the
power plugs from the outlets before starting the replacement.
Replacement
1.
Remove the four screws fixing the fan and fan guard.
2.
Release the tied harness from the coating lead pin on
the DUS-213 board.
3.
Disconnect the harness from the connector CN2 on the
DUS-213 board, then remove the fan.
4.
Tie the harness of a new fan with a new clamper. (Cut
off the unrequired portion of the clamper.)
