Although not required, we recommend that you mount
your new machine to the floor. Because this is an
optional step and floor materials may vary, floor mount-
ing hardware is not included. Generally, you can either
bolt your machine to the floor or mount it on machine
mounts. Both options are described below. Whichever
option you choose it will be necessary to use a precison
level to level your machine.
9fck`e^kf:feZi\k\=cffij
Lag shield anchors with lag bolts ( =`^li\,) and anchor
studs ( =`^li\-) are two popular methods for anchoring
an object to a concrete floor. We suggest you research
the many options and methods for mounting your
machine and choose the best that fits your specific appli-
cation.
Dflek`e^kfJ_fg=cffi

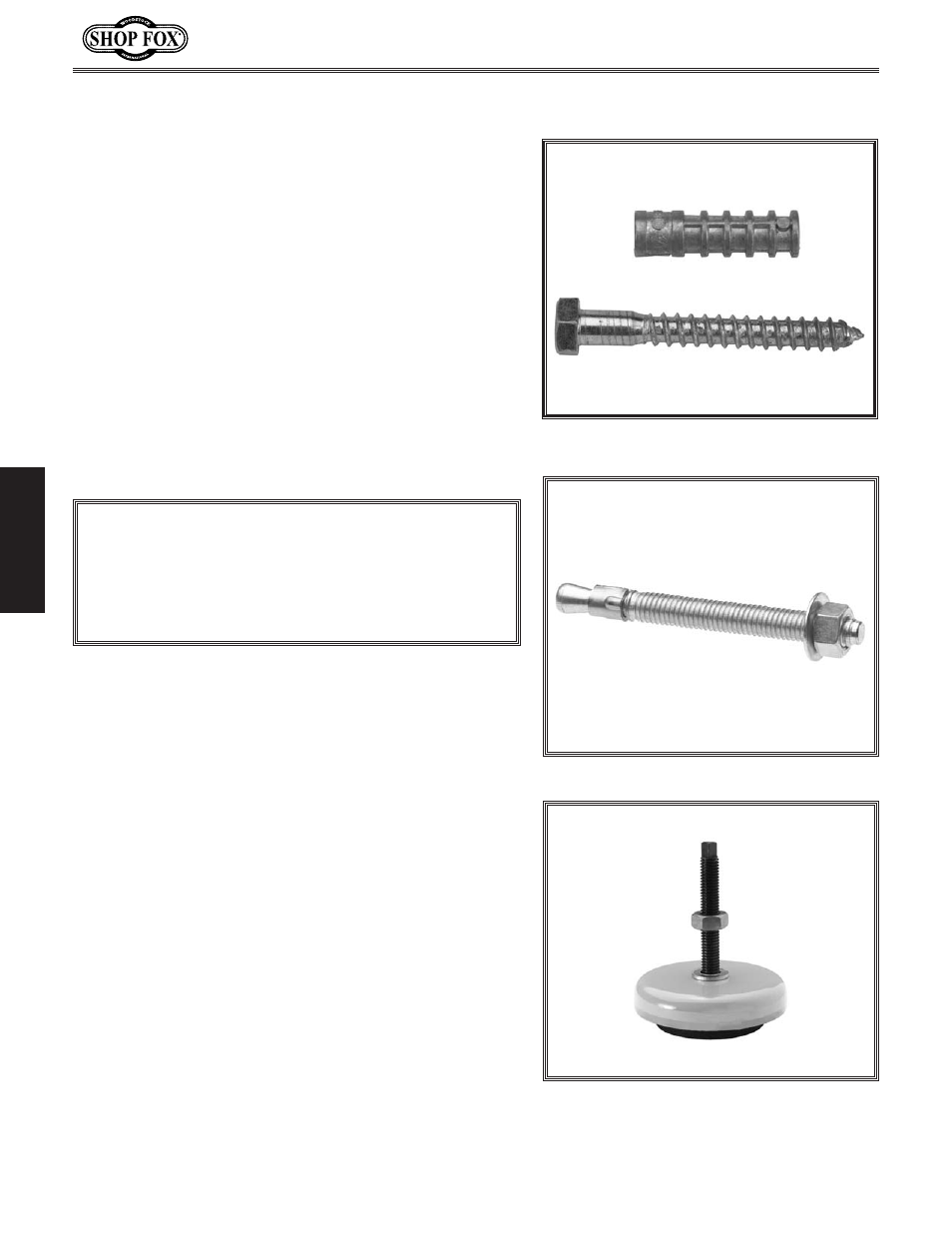

=`^li\,% Typical lag shield anchor and lag
bolt.
=`^li\ - % Typical anchor stud.
EFK@:<
8eZ_fijkl[jXi\jkife^\iXe[dfi\g\idXe\ekXck\i$
eXk`m\jkfcX^j_`\c[XeZ_fij2_fn\m\i#k_\pn`ccjk`Zb
flkf]k_\]cffi#n_`Z_dXpZXlj\Xki`gg`e^_XqXi[`]
pfl[\Z`[\kfdfm\pflidXZ_`e\XkXcXk\igf`ek%
=`^li\.% Machine mount example.
Lj`e^DXZ_`e\Dflekj
Using machine mounts, shown in =`^li\., gives the
advantage of fast leveling and vibration reduction. If you
choose to use machine mounts, attach them to the base
before assembling the drill press.
