① Video In
② Video Out
(Loop Through Out)
③ Control S/W
④ F H (S/W)
⑤ Tx R (S/W)
⑥ Rx R (S/W)
⑦ Network LED
⑧ Power LED
Preset Button
Reset Button
2
1
8 7 9 10
4 3
3 4
5 6
1.CONTROL 2.F/H 3.Tx R 4.Rx R
Names and Function
Familiarize yourself with the names and function of each part on the front and back panels, before
installing SNS-110.

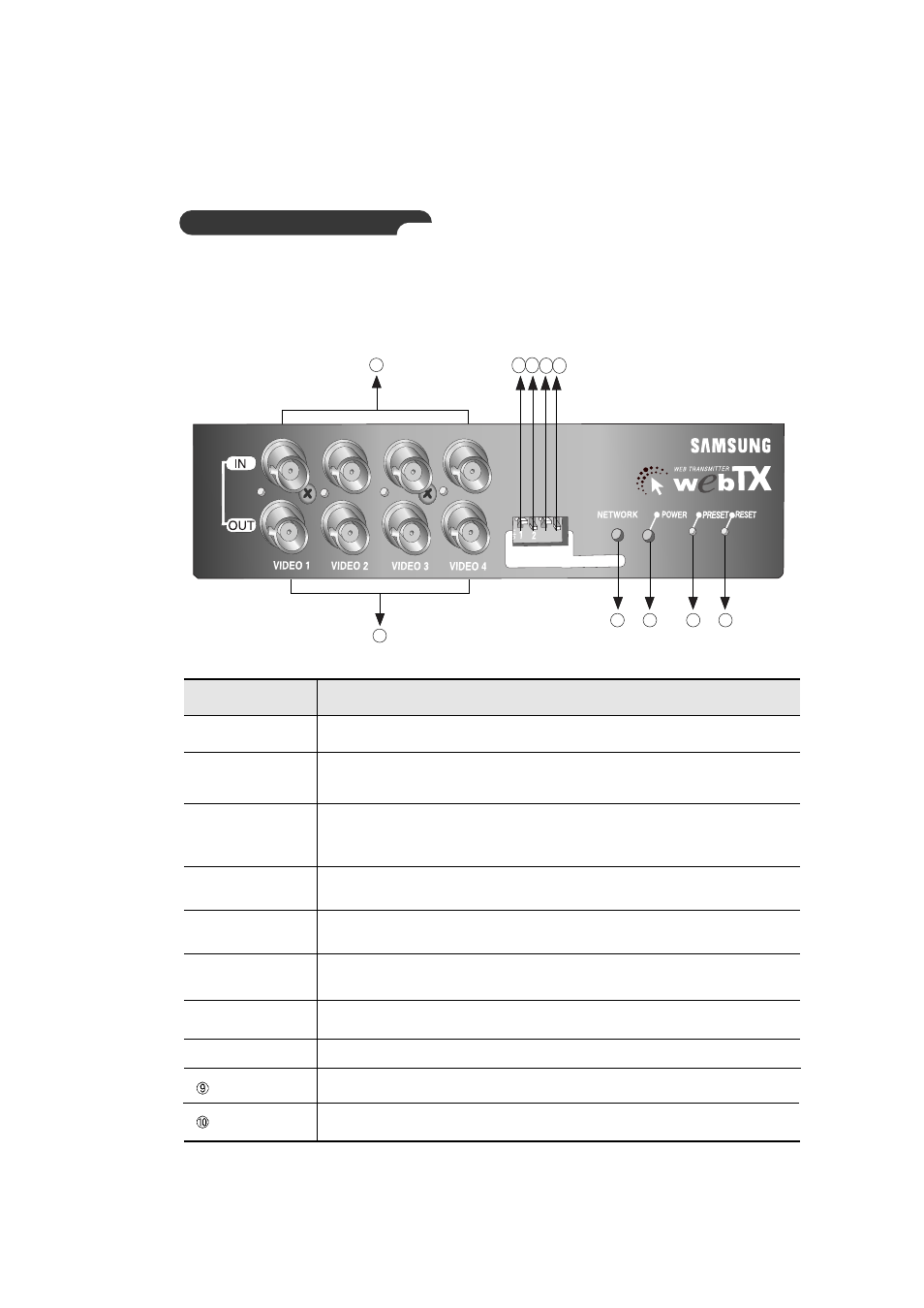

Front View of SNS-110
Receives input from maximum of 4 video image signals.
Transmit the image output to cameras or other external video-imaging devices
❈ When connected, the terminal resistance of 75
Ω
is automatically seized.
Off : when using as console purpose with RS-232C port connected to a PC
On : when RS-232C is to be connected to an External Modem.
❈ The current version does not support connecting an External Modem.
Off : use the RS-485 on the reverse side as Half Duplex
On : use the RS-485 on the reverse side as Full Duplex TX mode
Off : Tx Termination resistance 120
Ω
off
On : Tx Termination resistance 120
Ω
on
Off : Rx Termination resistance 120
Ω
off
On : Rx Termination resistance 120
Ω
on
Blinks when sending or receiving data with the proper connection.
Indicates the power on/off.
Returns to the initial set-up environment of factory default
Restarts SNS-110 without turning off the power.
Name Function
