I/o port, Pin assignment of i/o port, Using the i/o receptacle – Sony Security Camera User Manual

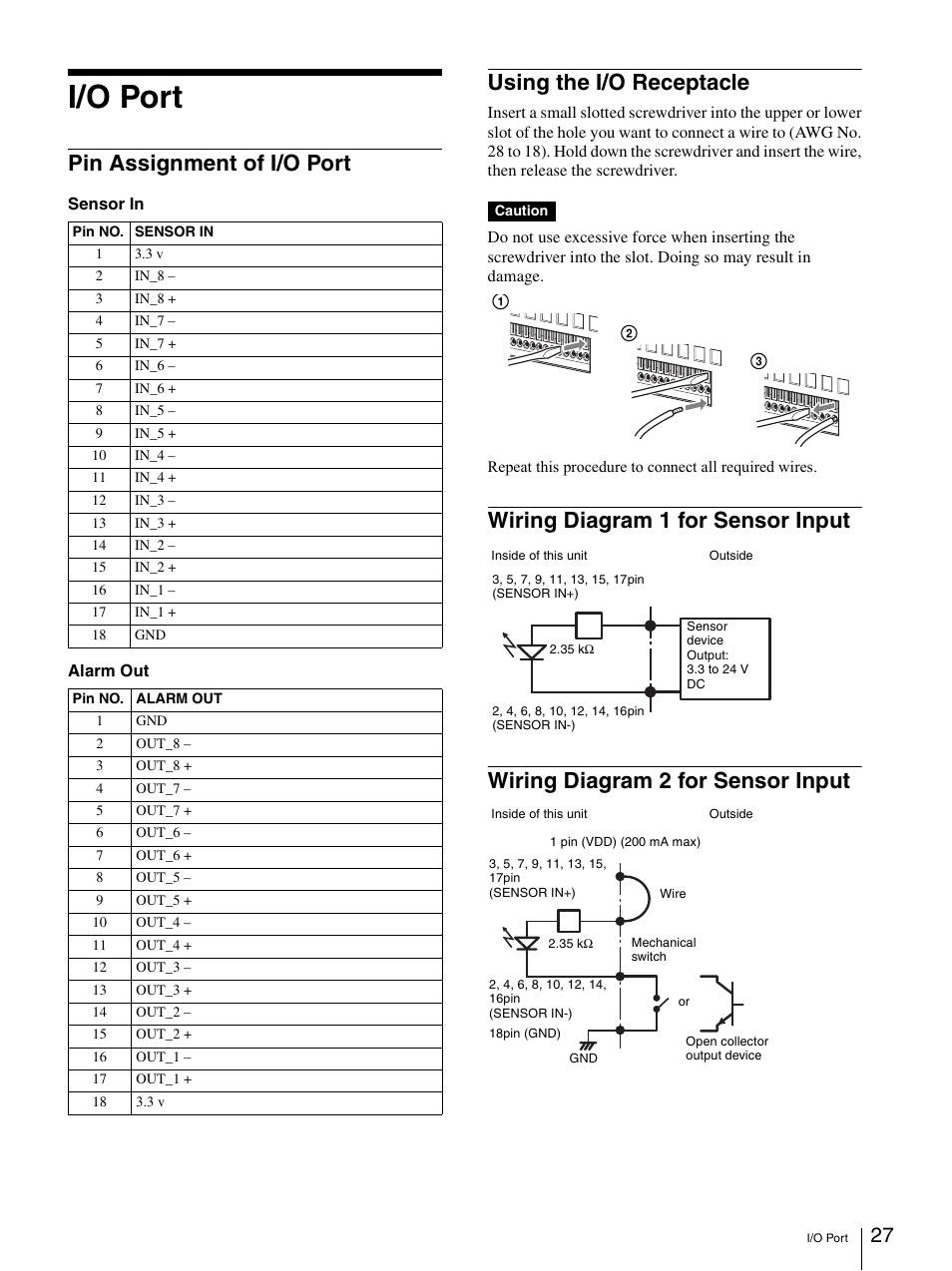

Page 27: Wiring diagram 1 for sensor input, Wiring diagram 2 for sensor input
